Lazer Lamps
Utility-25
Utility-25
Your go-to work light for everything from evening camp cooking to roadside repairs. Tough enough for Scottish weather, compact enough to mount anywhere.
Shipping time: Usually ships in 3 - 5 days
Couldn't load pickup availability
Description
+
-
Description

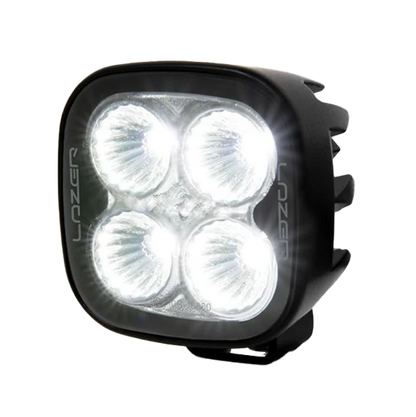

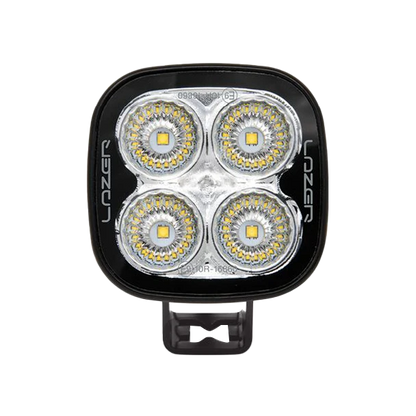

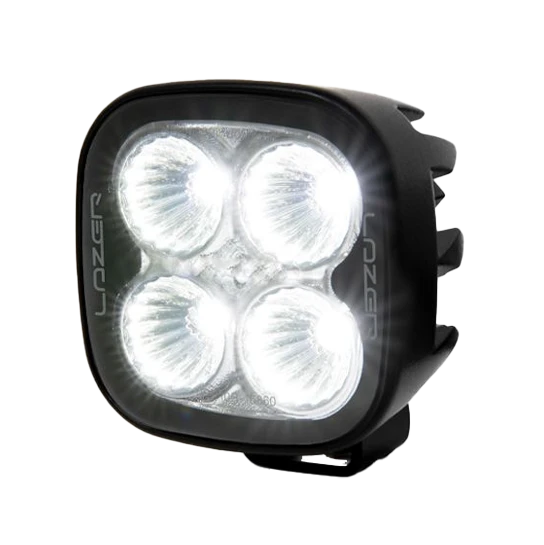

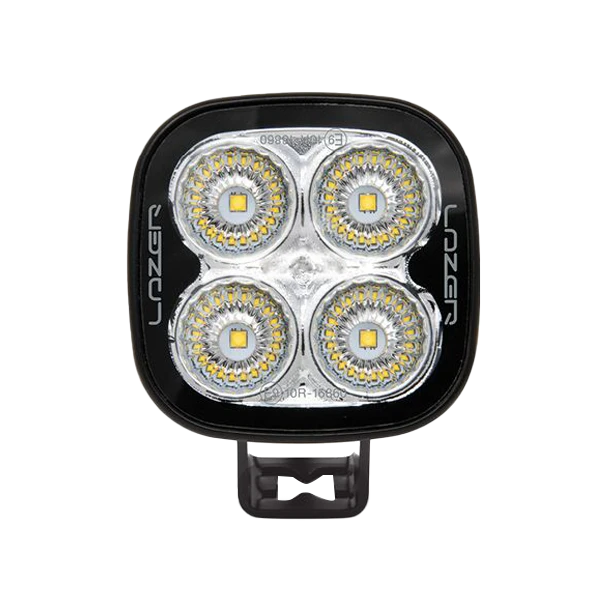

The Utility-25 is a hugely versatile, medium-duty LED work light that delivers superior levels of light output despite its compact 80mm x 80mm size. Sharing product DNA with the larger Utility-45 and Utility-80 heavy-duty work lights, this lamp is built tough and engineered to deliver constant, reliable illumination perfectly tuned to a broad range of campervan applications.
Perfect for evening camp cooking, roadside repairs, awning setup after dark, underbody inspections, or any task requiring reliable hands-free lighting, the Utility-25 punches well above its weight. The lamp utilises highly efficient 6W LEDs from a world-leader in LED design and manufacture, carefully selected at 5000K colour temperature to maximise sharpness and definition without causing eye fatigue during prolonged use.

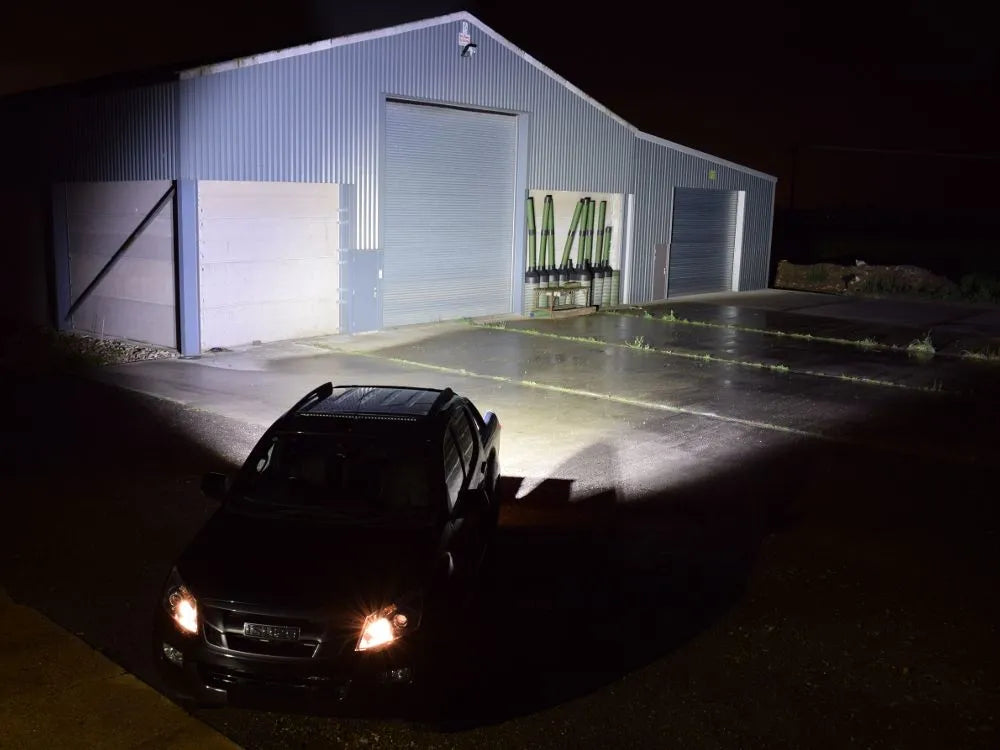

Producing 3,016 raw lumens with an impressive 78° beam spread (to 10% of peak intensity), the vacuum-metallised optics deliver effective, even illumination across your entire workspace. The effective lumen output of 2,642 lumens ensures genuine working brightness where you need it most.

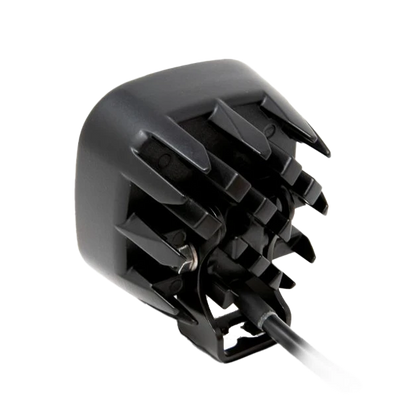

At just 25W power consumption (1.6 amps at 14.4V), the Utility-25 is remarkably efficient – essential for extended off-grid camping where every amp matters. The high thermal conductivity 'Matrix' cooling system, combined with CAE-optimised design, allows the lamp to run at higher drive current without compromising LED longevity.
Built to withstand harsh environments, the Utility-25 features an IP69K waterproof rating – the highest level of ingress protection available. This means it can handle high-pressure jet washing, complete submersion, and Scottish Highland weather without complaint. The 'unbreakable' polycarbonate lens with hardcoat is bonded in place to guarantee water-tightness whilst providing protection against impacts and stone strikes.
Designed and manufactured in the UK, the lamp has undergone extensive testing to comply with EU regulations for vibration (10Hz > 1000Hz), shock, and corrosion resistance (ISO 9227 salt spray test). Advanced electronic design ensures full EMC protection to CISPR-25 (Class 5) standards for 12V usage, preventing interference with sensitive vehicle electronics.
The lamp operates reliably from -40°C to +90°C and comes supplied with male/female Deutsch connectors (DT06-2S/DT04-2P) plus a satin black-painted stainless steel mounting system that allows flexible positioning in multiple orientations. Backed by a comprehensive 5-year warranty for automotive and commercial fleet use, this represents exceptional value and reliability.
Utility-25 installation requirements
The Utility-25 kit includes:
- 1x Utility-25 LED Work Lamp
- 1x Utility-25 Centre Mount (supplied attached to lamp)
- Male/female 2-pin Deutsch connectors (pre-wired +28cm cable)
Utility-25 specifications

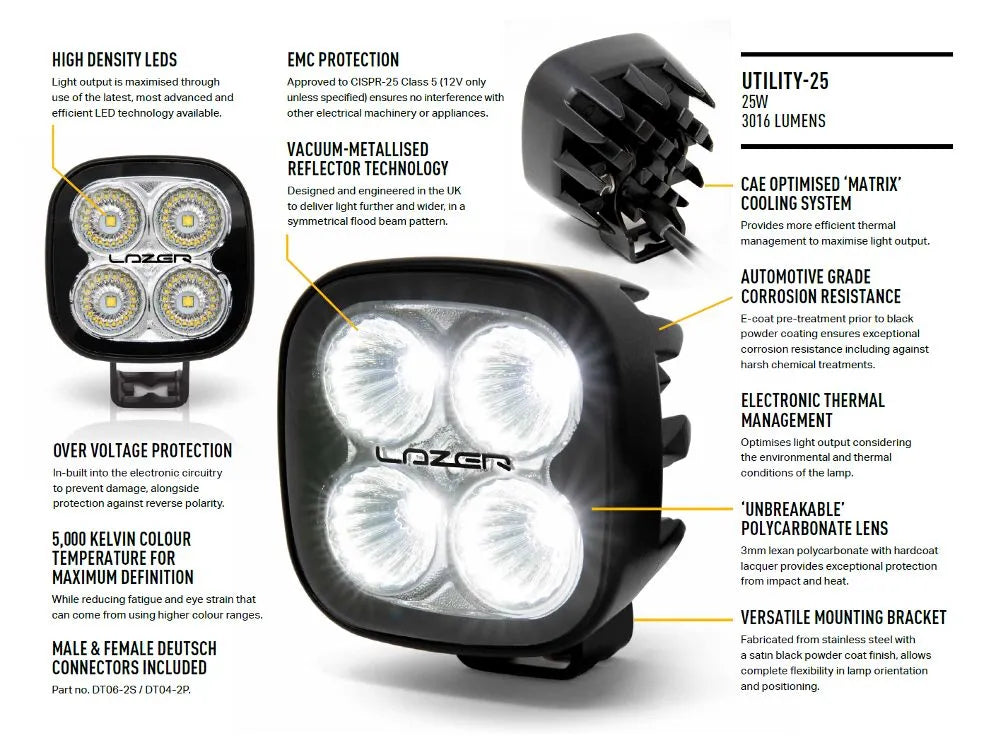

Key Features:
- UNECE approved Work Light (Reg 10)
- High-density premium 'bin' LEDs
- Advanced optical design delivers superior lighting performance

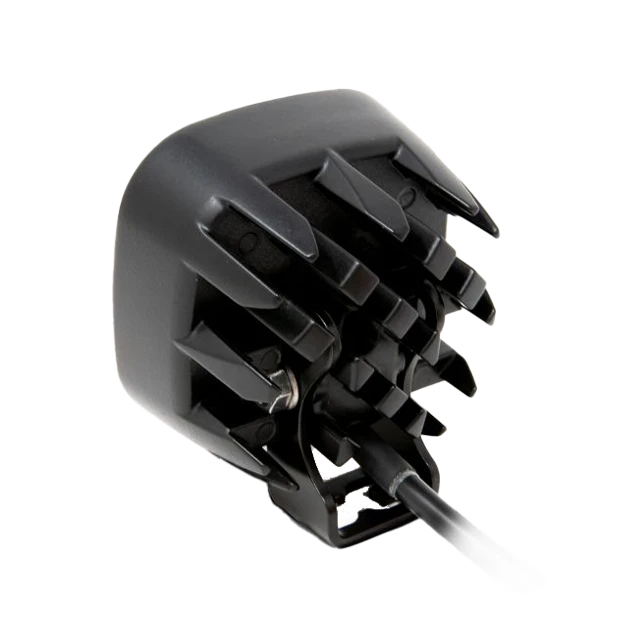

- CAE-optimised 'Matrix' cooling system
- Electronic thermal management system
- Anodised pre-treatment and automotive-grade powder top-coat
- EMC protected - CISPR 25: 2008 (Class 5)
- Over-voltage and reverse polarity protected
- 'Unbreakable' polycarbonate lens with hardcoat lacquer
- IP69K watertight rating
- 5-year warranty for automotive/commercial fleet use*
- 2-year warranty for other applications*
- 2-pin Deutsch connectors included
- Designed and manufactured in UK
Technical Specifications (1x Utility-25):
| Specification | Details |
|---|---|
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 0.36 kg |
| LIGHT OUTPUT | |
| Total Luminous Flux | 3,016 Lm |
| Effective Lumens † | 2,642 Lm |
| Colour Temperature | 5000K |
| Power Consumption | 25 W |
| Current Draw (at 14.4V) | 1.6 A |
| Connector | 2-Pin Deutsch DT (+28cm cable) |

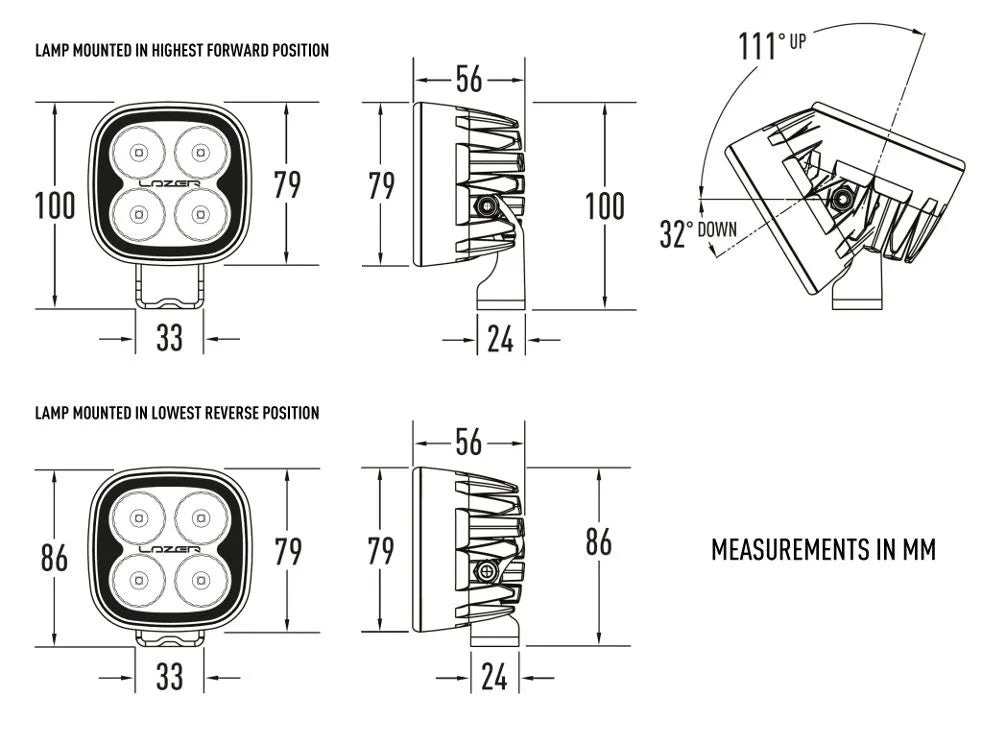

| DIMENSIONS | |
| Width | 80 mm |
| Depth | 56 mm |
| Height | 80 mm |
| CERTIFICATION | |
| IP Rating | IP68 / IP69K |
| EMC Certification | ECE R10 |
| EMC Protection | CISPR-25 (Class 5) |
| Salt Spray Test | ISO 9227 |
| Dump Load Protection | ISO 7637-2 |
| OPERATING CONDITIONS | |
| Operating Temperature | -40°C to +90°C |
| Vibration (BS EN 60068) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |

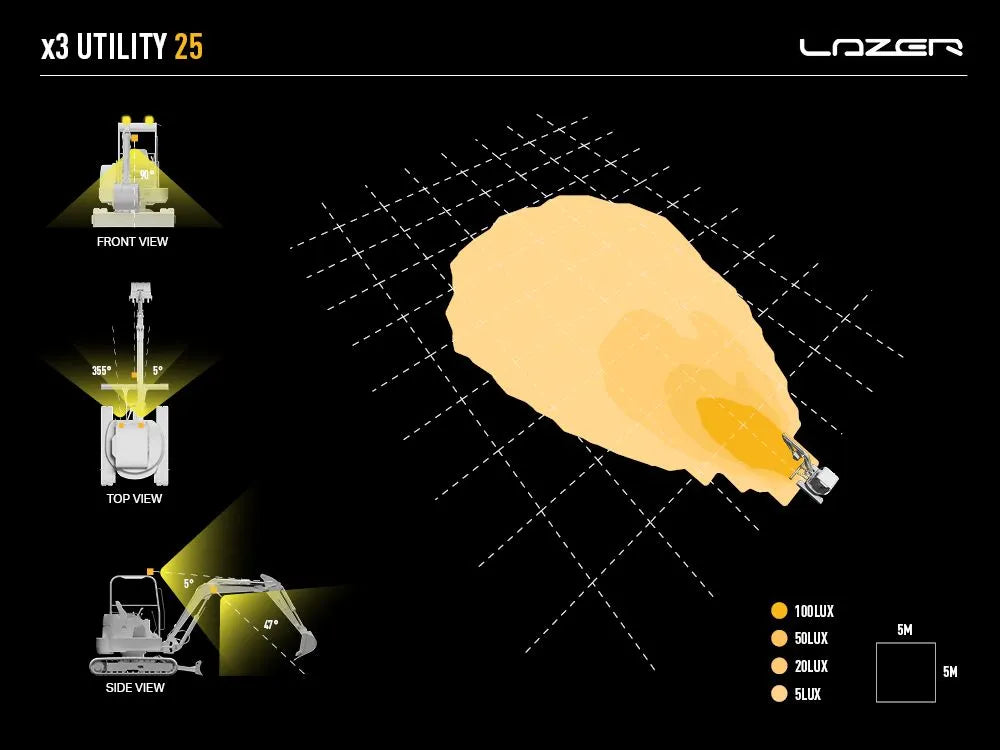

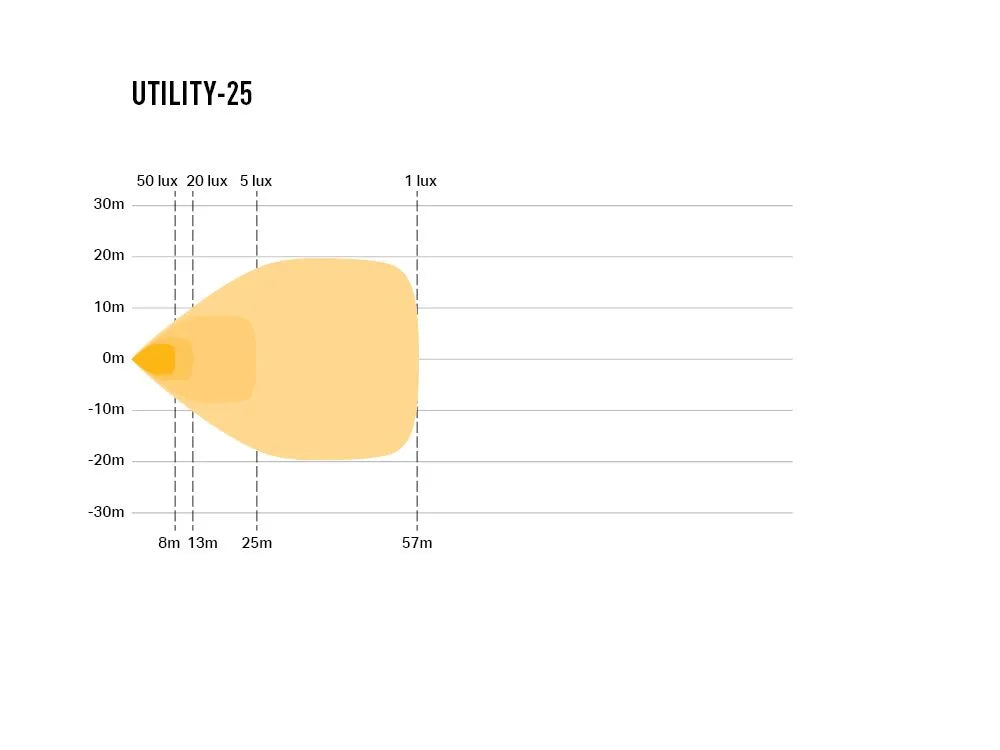

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 78° |
| Vertical Beam Angle | 78° |
| 1 Lux | 57 m |
| 5 Lux | 25 m |
| 20 Lux | 13 m |
| 50 Lux * | 8 m |
† Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90° left/right, and +/- 90° up/down.

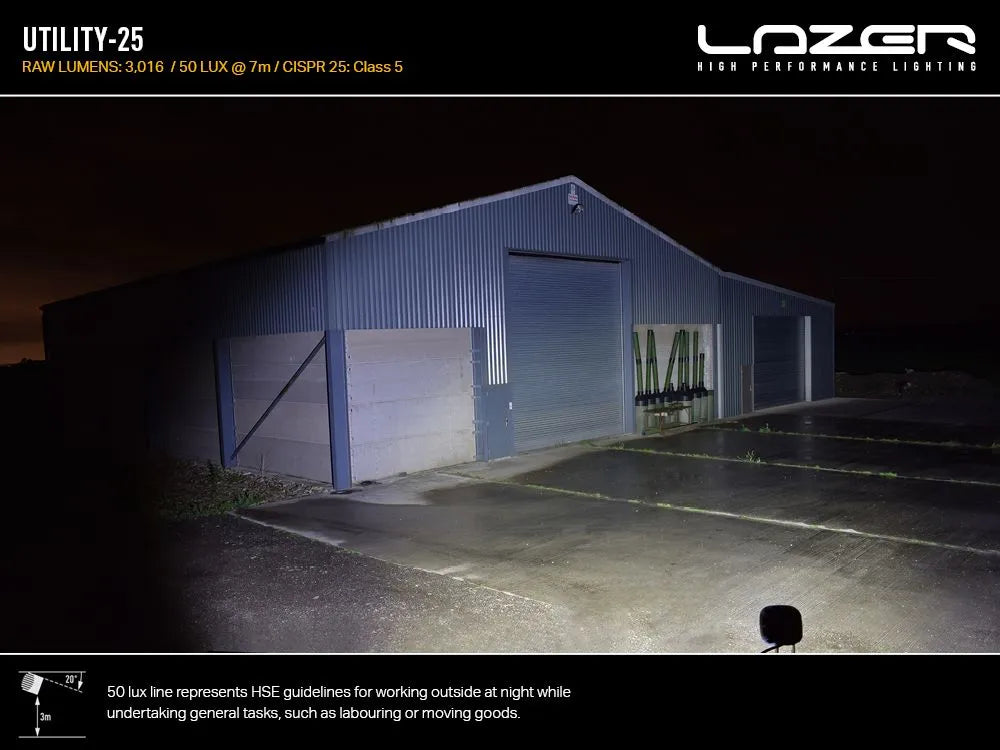

- 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.
* 5-Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2-Year Warranty period applies.
† CISPR-25 (Class 5) applies to 12V usage only unless specified.
