Triple-R 750 Elite Grille Integration Kit
Triple-R 750 Elite Grille Integration Kit
The Lazer Grille Integration Kit for Sprinter 2018+ offers a seamless solution for integrating Triple-R 750 Elite LED spotlights into the front grille. This kit includes high-performance LED lamps, durable custom brackets, a two-lamp wiring kit, and cutting guides for easy installation.
Shipping time: Usually ships in 3 - 5 days
Couldn't load pickup availability
Description
+
-
Description
Advantages of the Lazer Triple-R 750 Elite Grille Integration Kit for your Sprinter 2018+ campervan

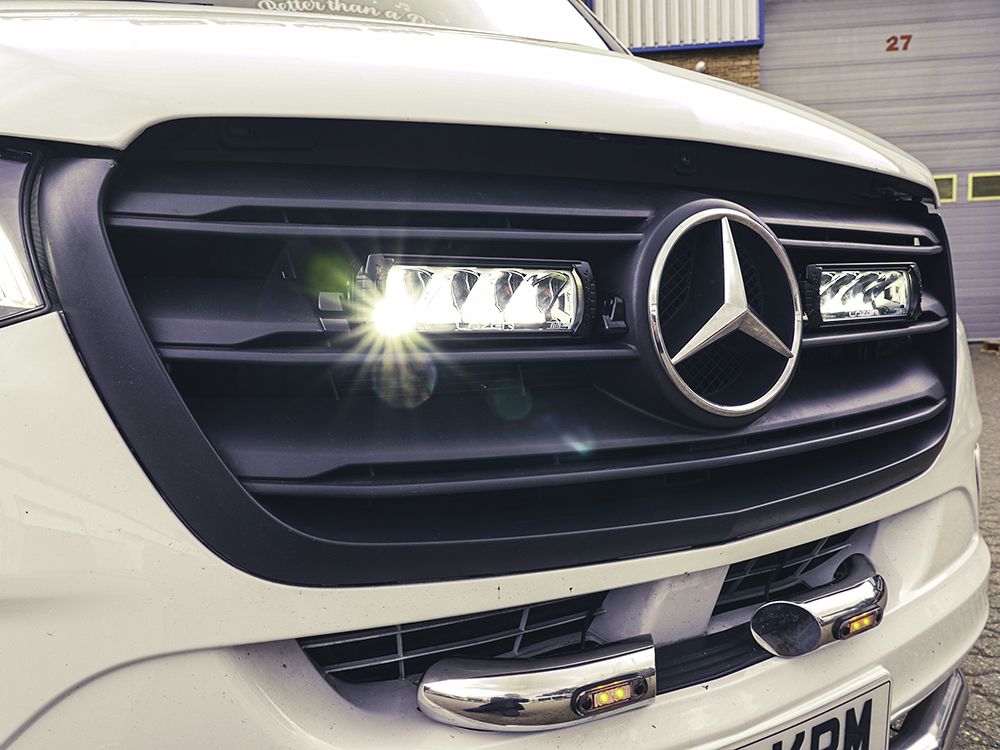

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance Triple-R 750 Elite within the front grille of the Mercedes Sprinter 2018+. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

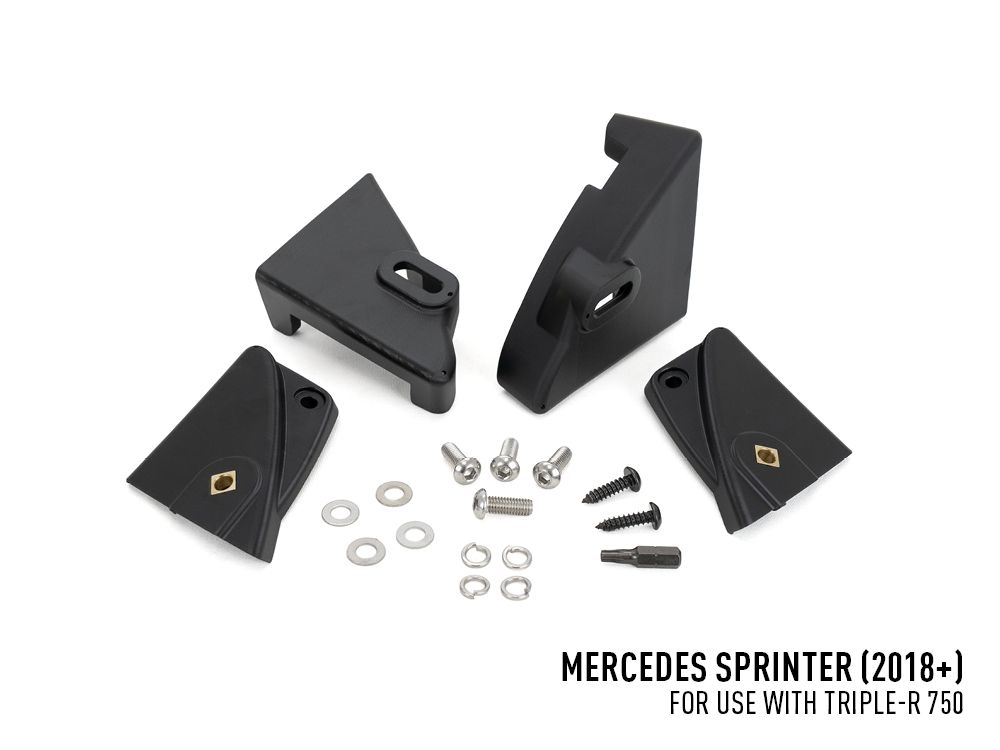

The Sprinter 2018+ kit, designed for MY17 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from a high strength composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
| 2x Triple-R 750 Elite (E-Boost Mode) | |
| Voltage Range (DC) | 10-32V |
| LED Life | 50.000 hrs |
| Weight | 2 kg |
High Beam Function
| 2x Triple-R 750 Elite (E-Boost Mode) | |
| Total Luminous Flux | 10136 Lm |
| Total Driver 'FOV' Flux | 6680 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 104 Watts |
| Current Draw (at 14.4V) | 7.2 Amps |
Certification
| 2x Triple-R 750 Elite (E-Boost Mode) | |
| High Beam | ECE R112 |
| ECE Reference | N/A (12.5 x2 - E-Mark Mode) |
| Position Light (White only) | N/A |

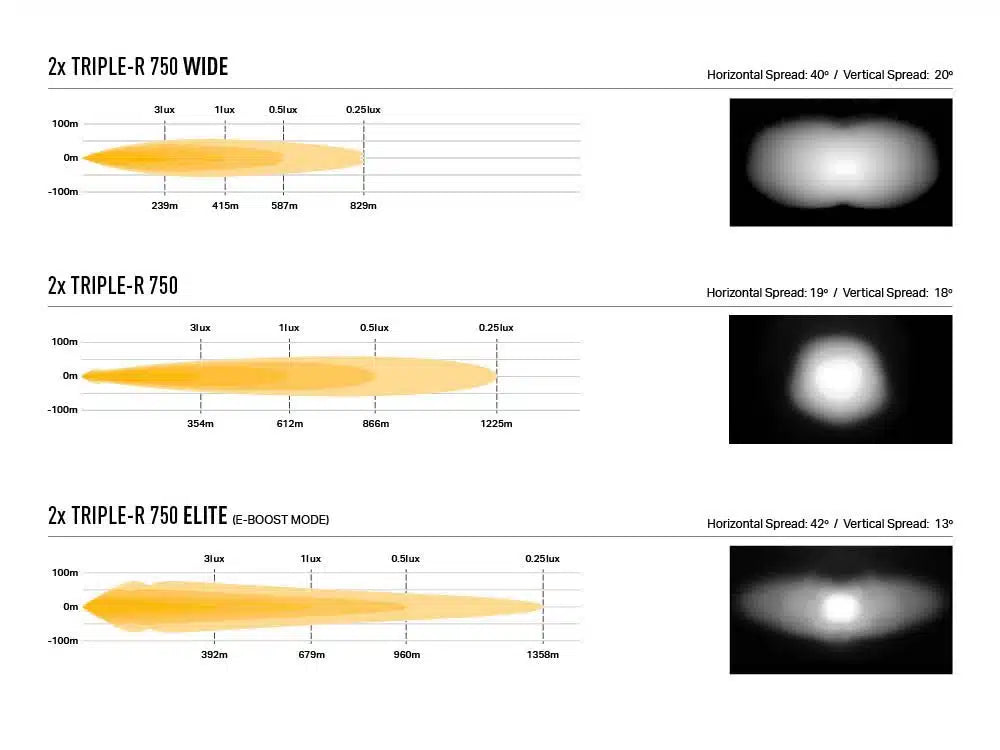

Photometric Data
| 2x Triple-R 750 Elite (E-Boost Mode) | |
| Horizontal Beam Angle | 42° |
| 0.25 lx Line | 1358m |
| 0.5 lx Line | 960m |
| 1 lx Line | 679m |
| 3 lx Line | 392m |
Installation requirements
In the kit you find everything that’s needed for an effortless installation:
- 1x Grille Mounting Kit (Includes cutting guides)

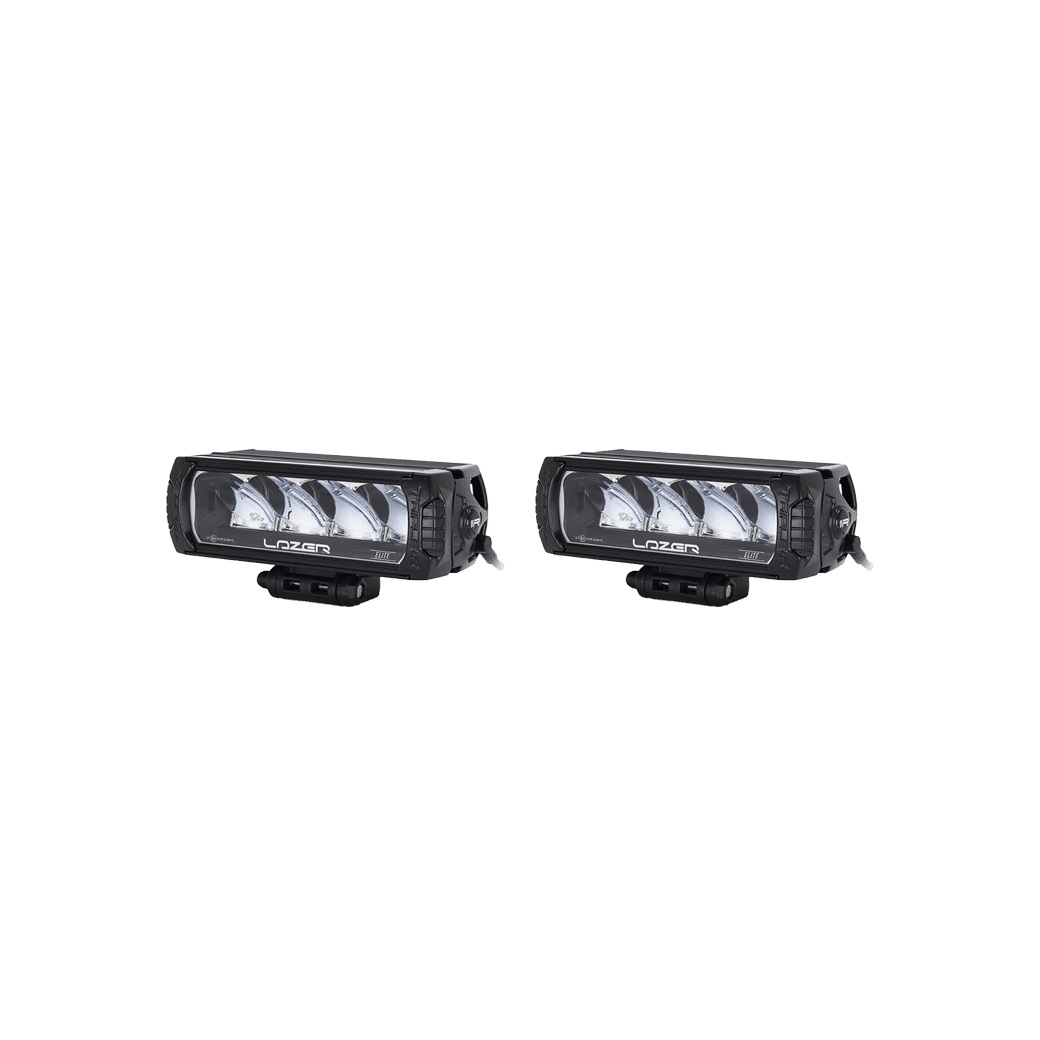

- 2x Triple-R 750 LED (Elite) Lamps

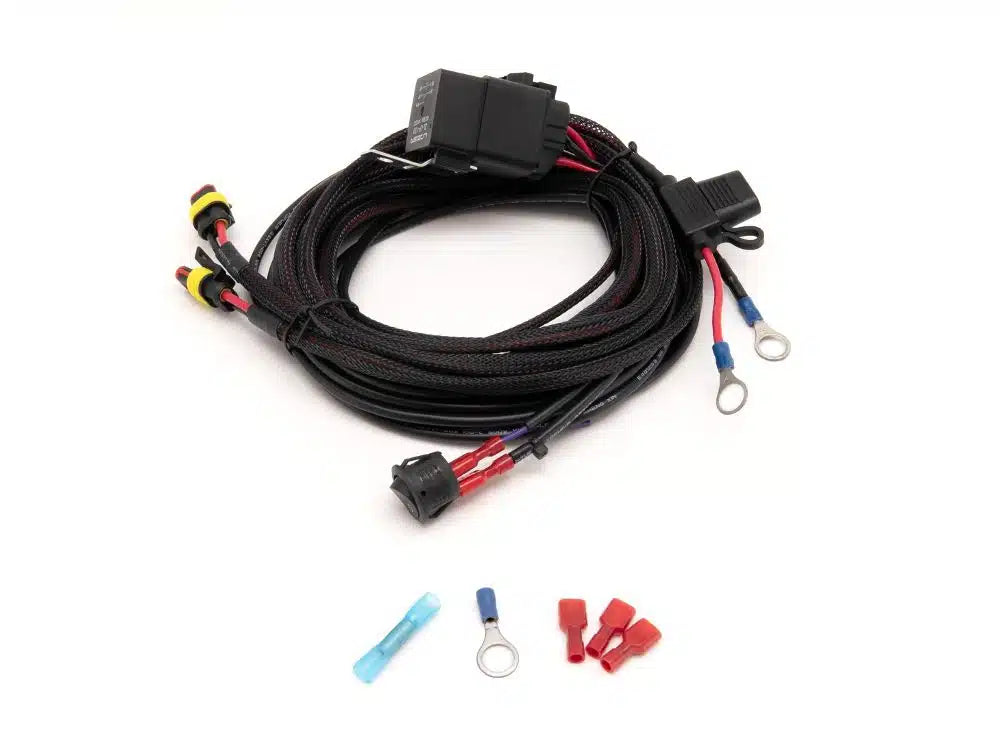

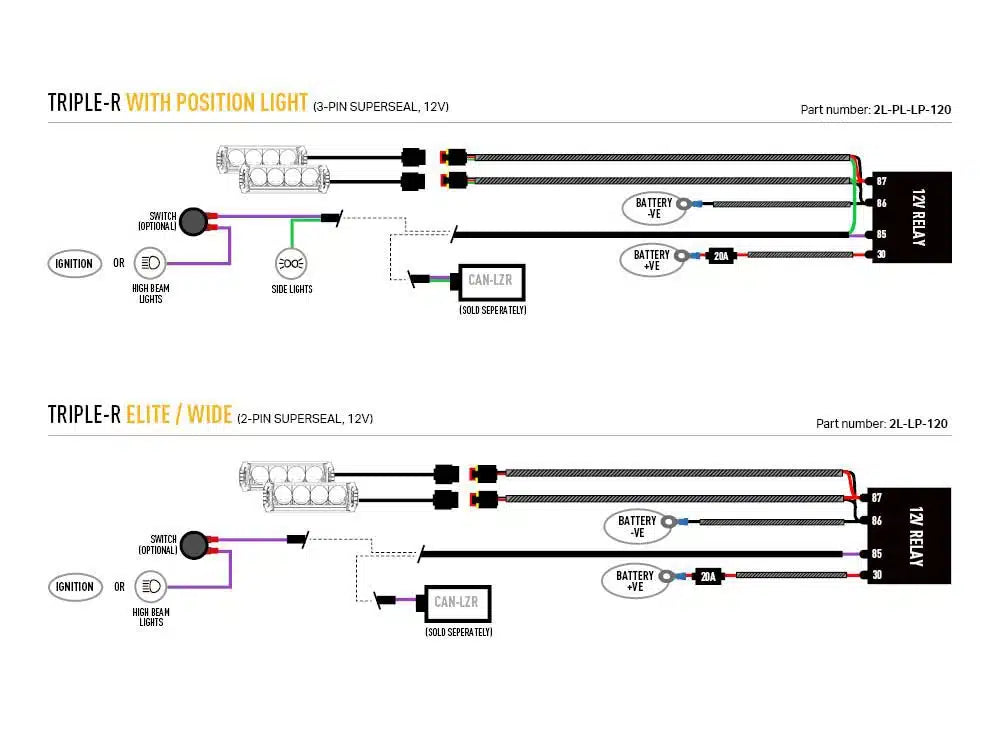

- 1x Two-Lamp Wiring Kit
- 4WD Installation Instructions
- FWD Installation Instructions
Lazer Triple-R 750 Elite Grille Integration Kit Sprinter (2018+) specifications
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom-fit for Mercedes Sprinter (2018+)
- Designed for use with Triple-R 750 High Performance LED Spotlights
- Kit also includes bespoke mounting brackets and a two-lamp wiring kit
- Brackets made from high-strength, UV-stable, composite material
Product Disclaimer
The regulations for lightning and mounting in the grille/bumper are different per country. It is your responsibility to check what your country requires. Dutchvanparts does not accept any liability nor hold responsibility for the regulations you need to abide by or any problems you might encounter with this product.
Compatible with
+
-
Compatible with
- Hymer - Free S Campus
- Hymer - Grand Canyon S
- Hymer - Grand Canyon S Crossover
- Westfalia - James Cook
- Yucon - K-Peak
- Hymer - ML-T Crossover
- Mercedes Benz - Sprinter W907 (2018+)
- Mercedes Benz - Sprinter W910 (2018+)
- Yucon - V-City
- Hymer - Venture S
If your vehicle is not listed, you're unsure whether this product is compatible with your vehicle or would like further advice, please get in touch - hello@projectyonder.co.uk
Additional info
+
-
Additional info
- Shipping weight: 3,4 kg
- Shipping dimensions: 43 × 29 × 10 cm
- Product weight: 2 kg
- Material: Aluminium, Composite, Polycarbonate, Stainless steel
