Tire Carrier Crafter 2017+ & MAN TGE
Tire Carrier Crafter 2017+ & MAN TGE

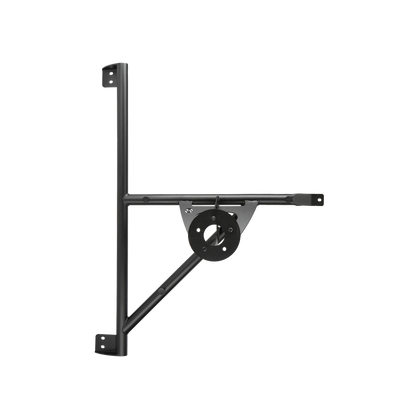

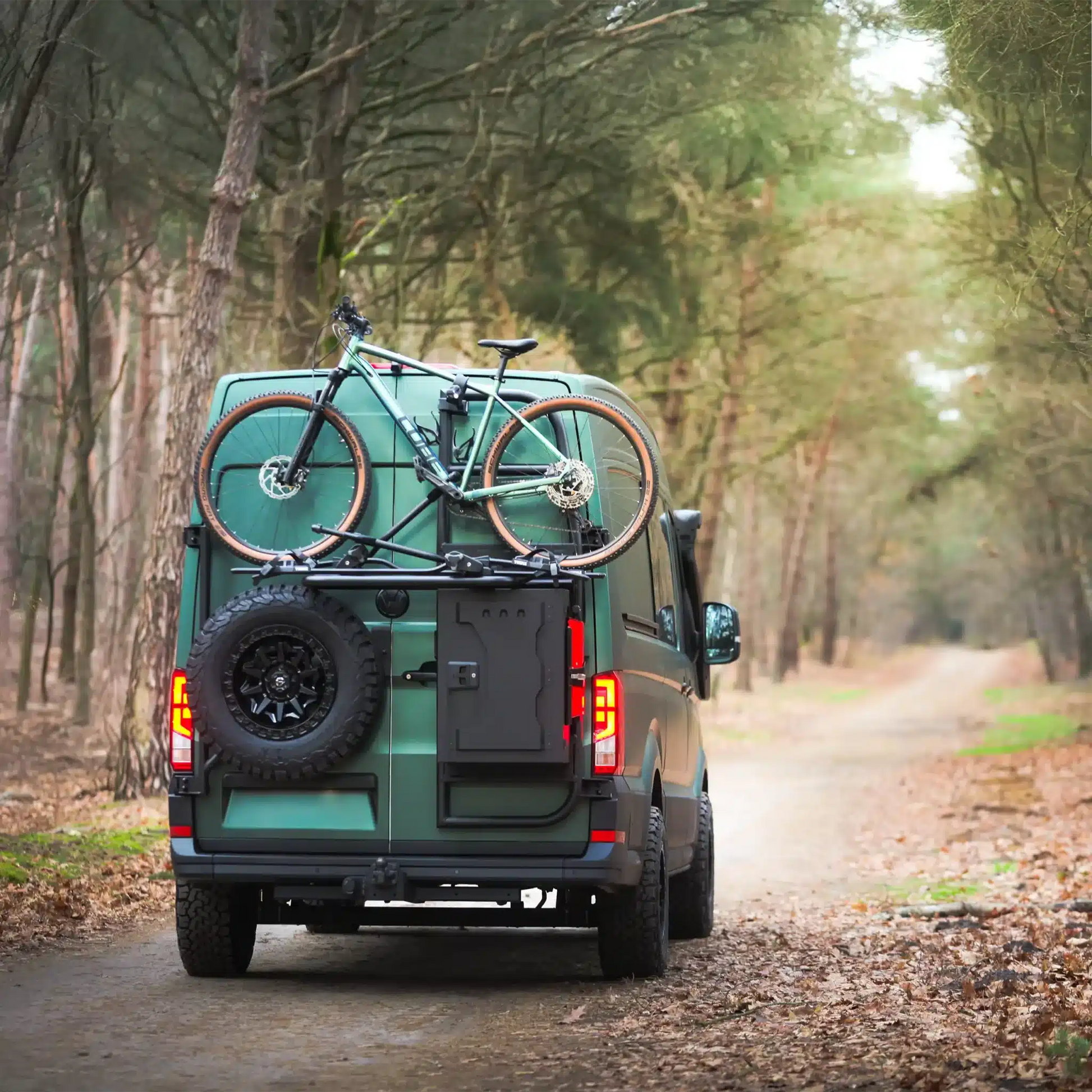

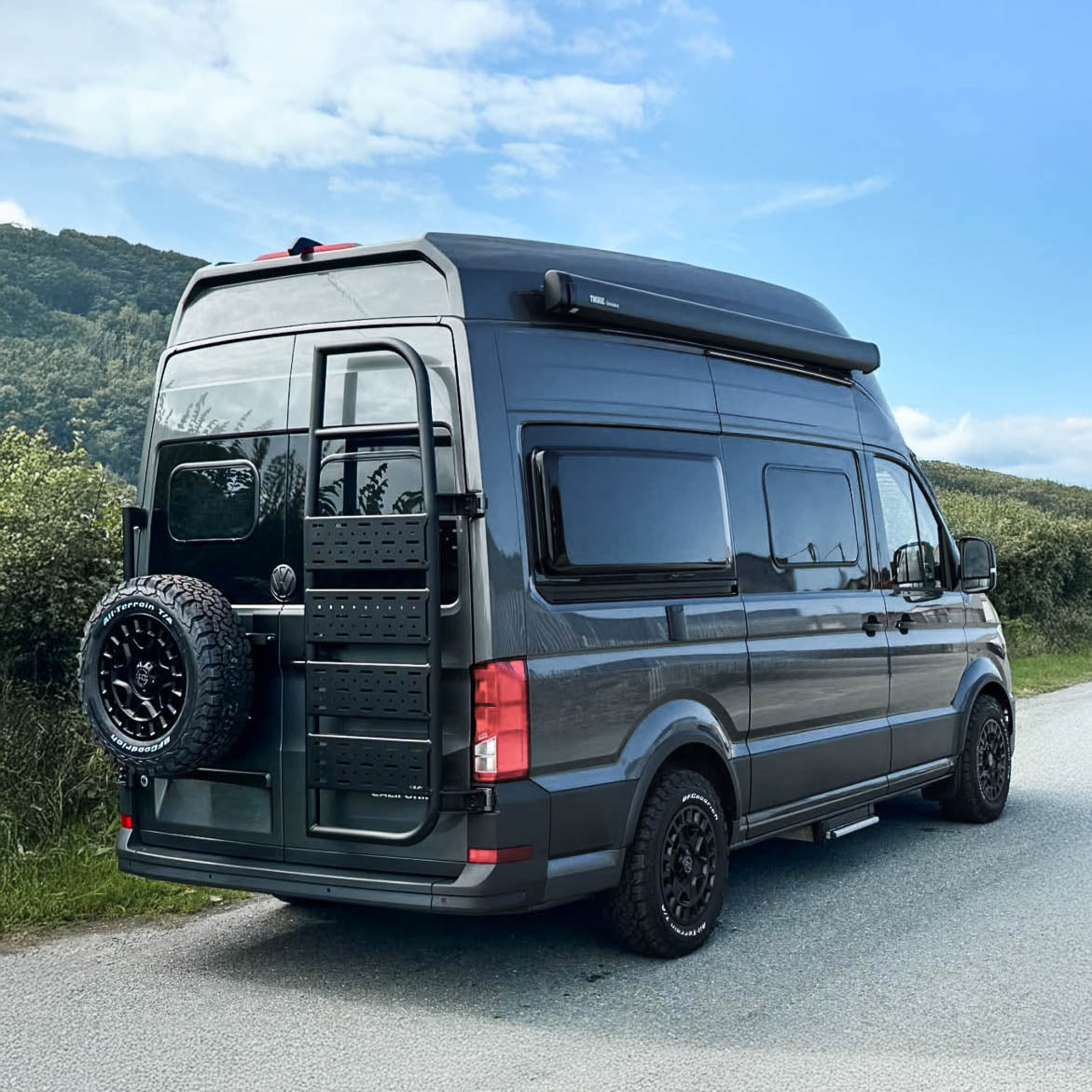

Sequoia Tire Carrier for Volkswagen Crafter (2nd gen) and Man TGE to mount your spare on the left rear door of the van. Save space under your van and make your spare easy accessible in every situation.
Shipping time: Usually ships in 1 - 2 weeks
Couldn't load pickup availability
Description
+
-
Description
Advantages of a Sequoia Tire Carrier for your campervan
There are several reasons to consider a tire carrier for your Volkswagen Crafter 2017+ or Man TGE campervan. One of the main reasons is upgrading to larger tires. The factory space for the spare tire underneath the van may not accommodate a bigger wheel, so you'll need an alternative location.
Additionally, moving the spare tire frees up valuable space under the van for water tanks or auxiliary fuel tanks. In off-road situations or difficult terrain, accessing a spare tire mounted underneath can be challenging. Having it on a tire carrier makes it far more accessible when you need it most.
Sequoia Tire Carrier installation requirements
270-degree doors: You will need to replace the 270-degree hinges with 180-degree hinges. The tire carrier is attached to the hinges and connected to the door.
180-degree doors: The tire carrier is attached to the hinges and connected to the door.
We also offer wheel bolts. For OEM 16” steel rims, we offer steel wheel bolts with a rounded contact surface. Most aftermarket alloy wheels, however, typically require 60-degree conical bolts (M14x1.5), which you can also select. However, these wheel bolts are not suitable for original (OEM) alloy wheels of the Volkswagen Crafter 2nd generation (2017+) and Man TGE. This is also applicable to factory campervans build on this vehicle chassis.
Big wheels may require extra spacers, but for most tire/rim combinations, they aren't necessary. Spacers are typically only needed when you're using a high ET rim, like an ET 62, combined with a large tire, or when the wheel size is 33” or larger. Contact us if you need advice on spacers for your tire carrier.

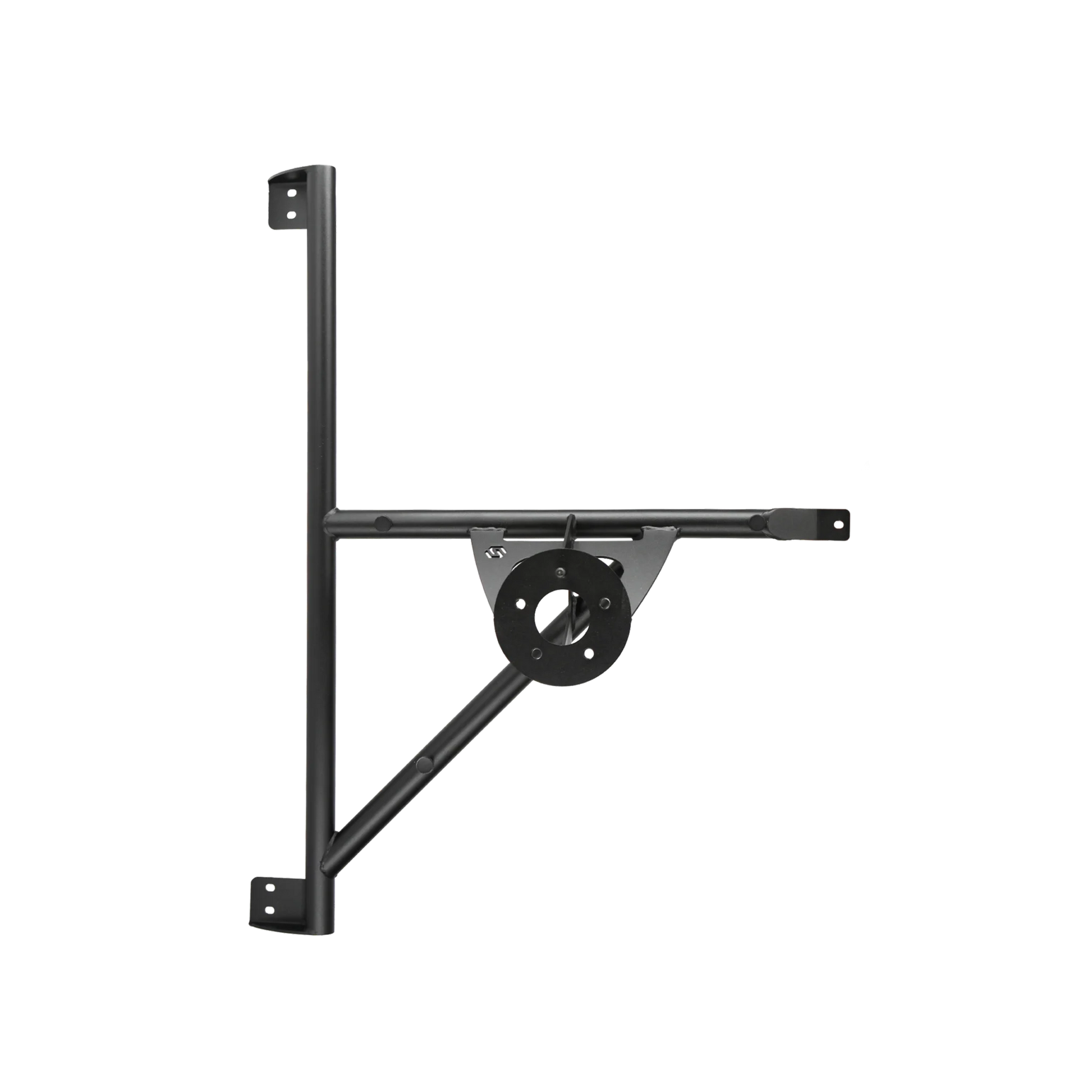

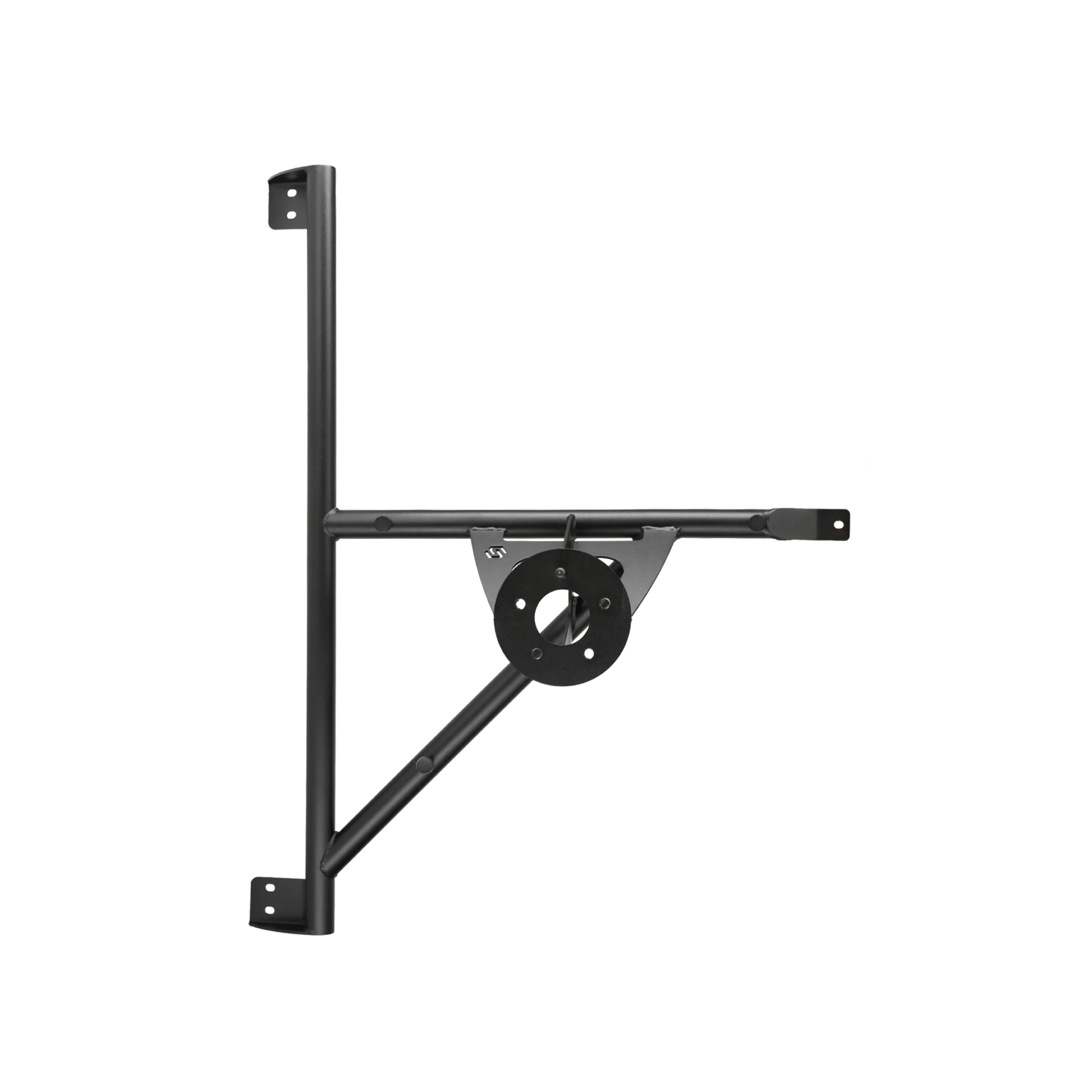

Sequoia Tire Carrier Crafter / TGE specifications
- Compatible with almost all tire/rim sizes 5×120) (max 265 tire size before Volkswagen/Man emblem needs to be modified). Check your wheel size here.
- Made of steel (long-term stress-resistant)
- Easy spare wheel mounting using stainless center pin (single-person mounting)
- Only compatible with 180-degree hinges
- Weight distributing directly on hinges, not on the door
- Bolted on the strong part of the door with a bushing in between sheet metal layers
- Aluminum door plate, this plate will reinforce the door, closing the door (standard included)
- Bolt-on product
- Stainless steel hardware

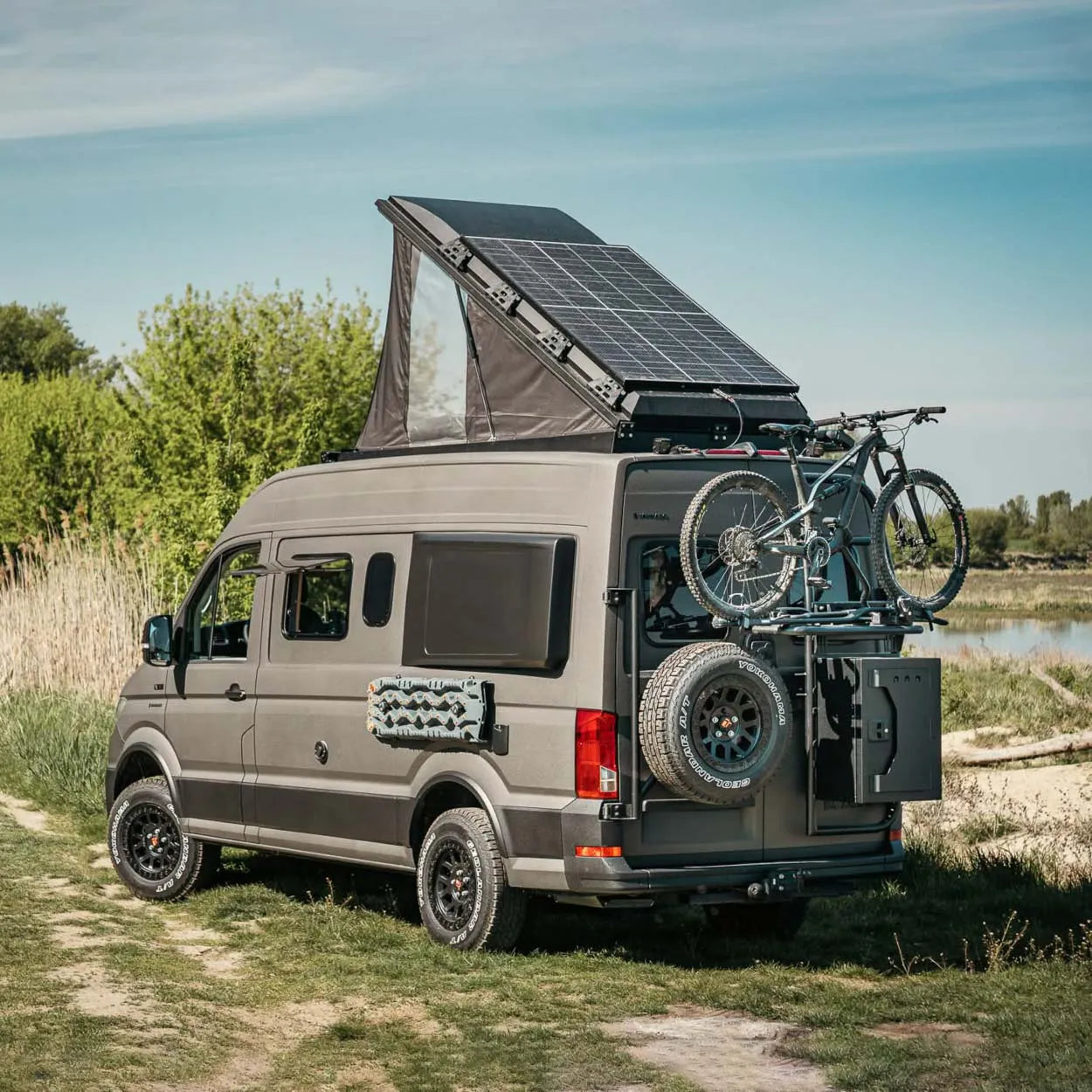

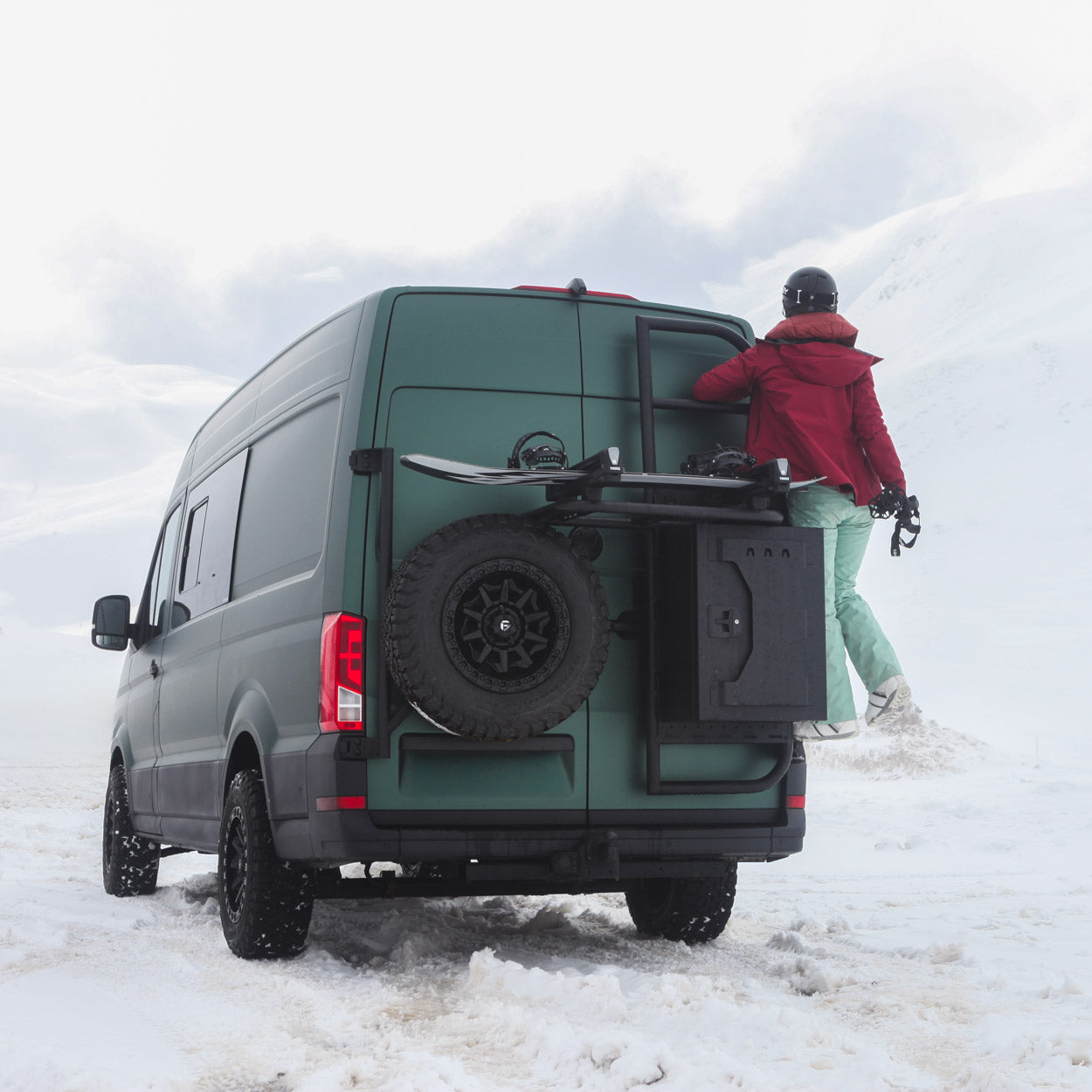

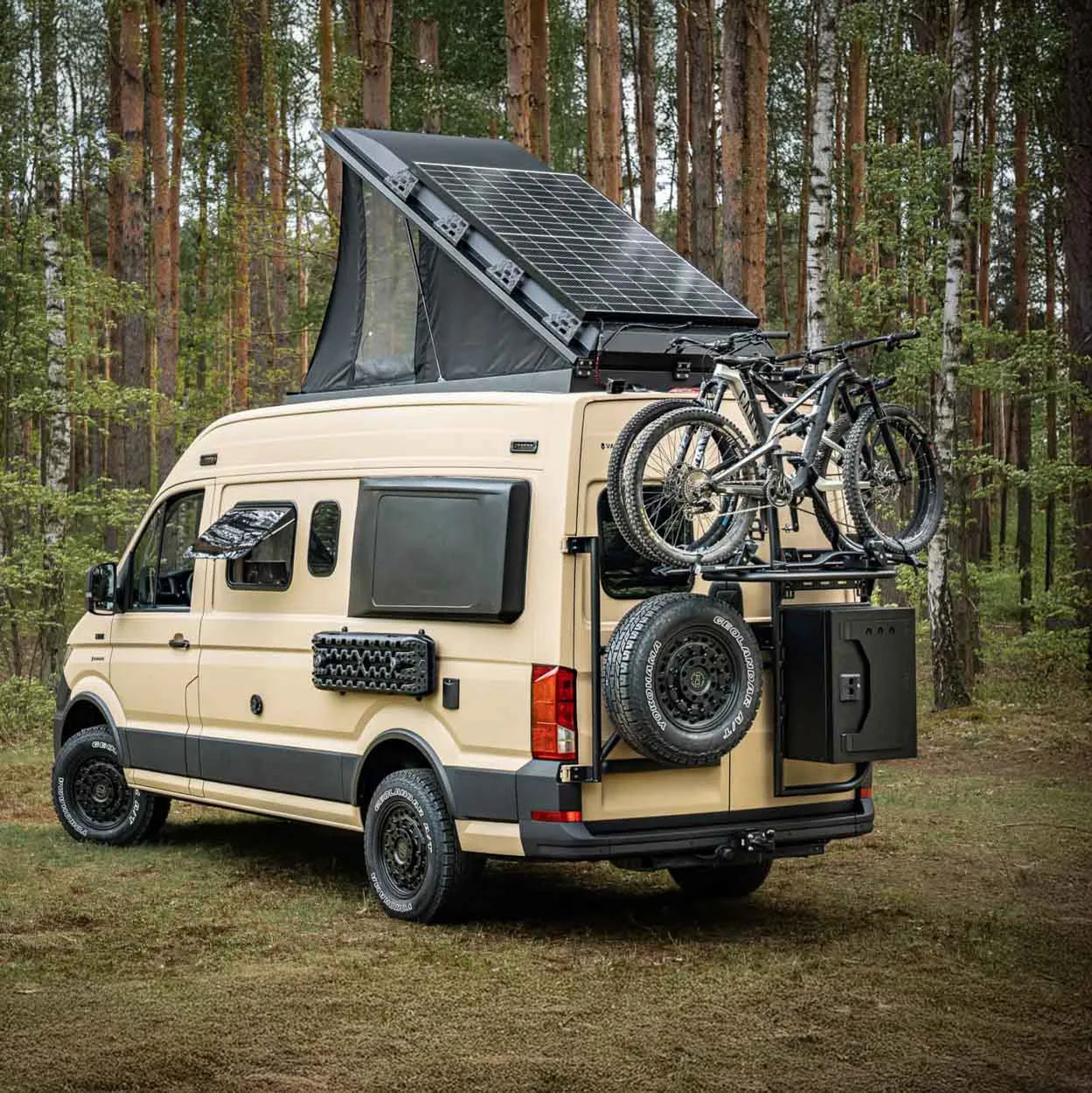

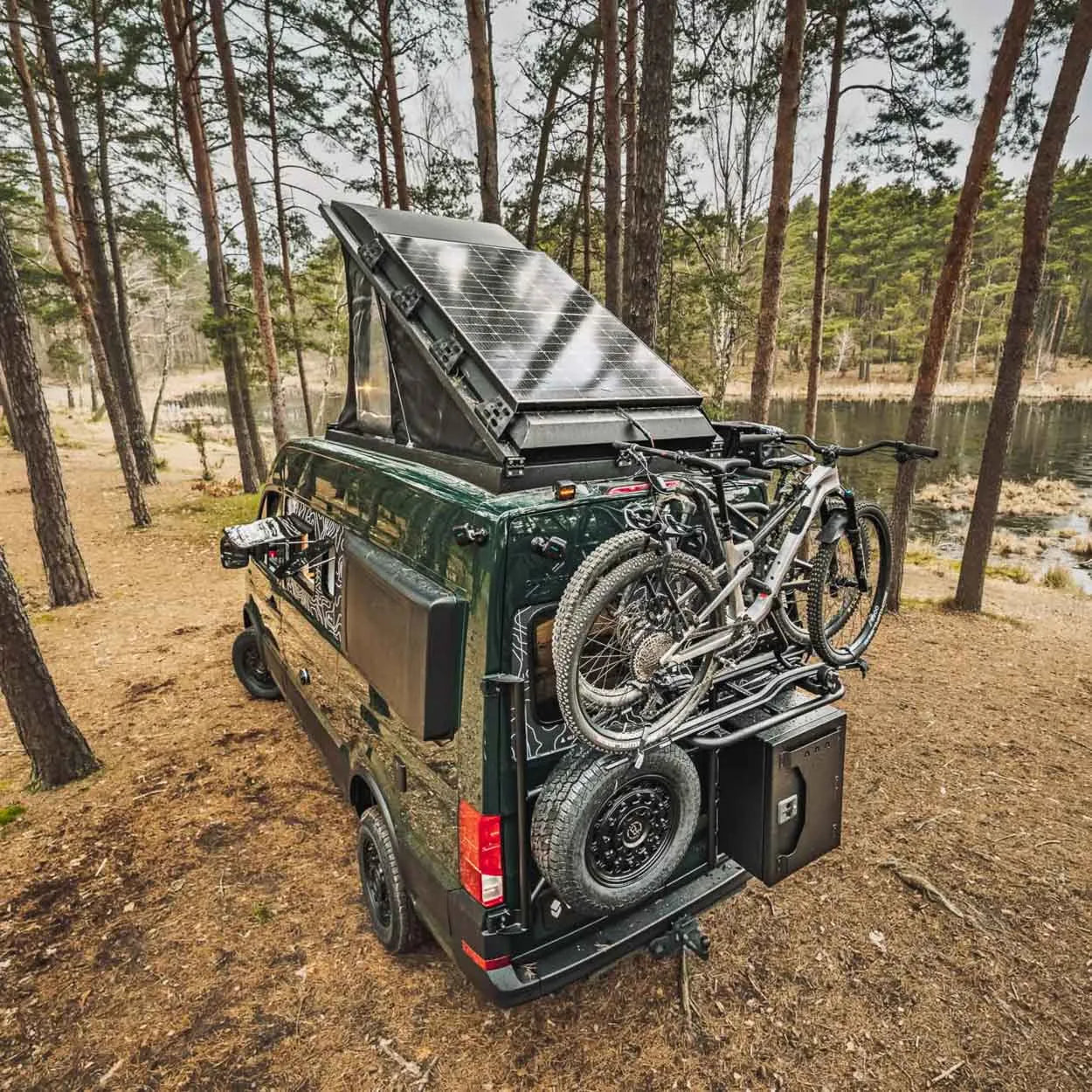

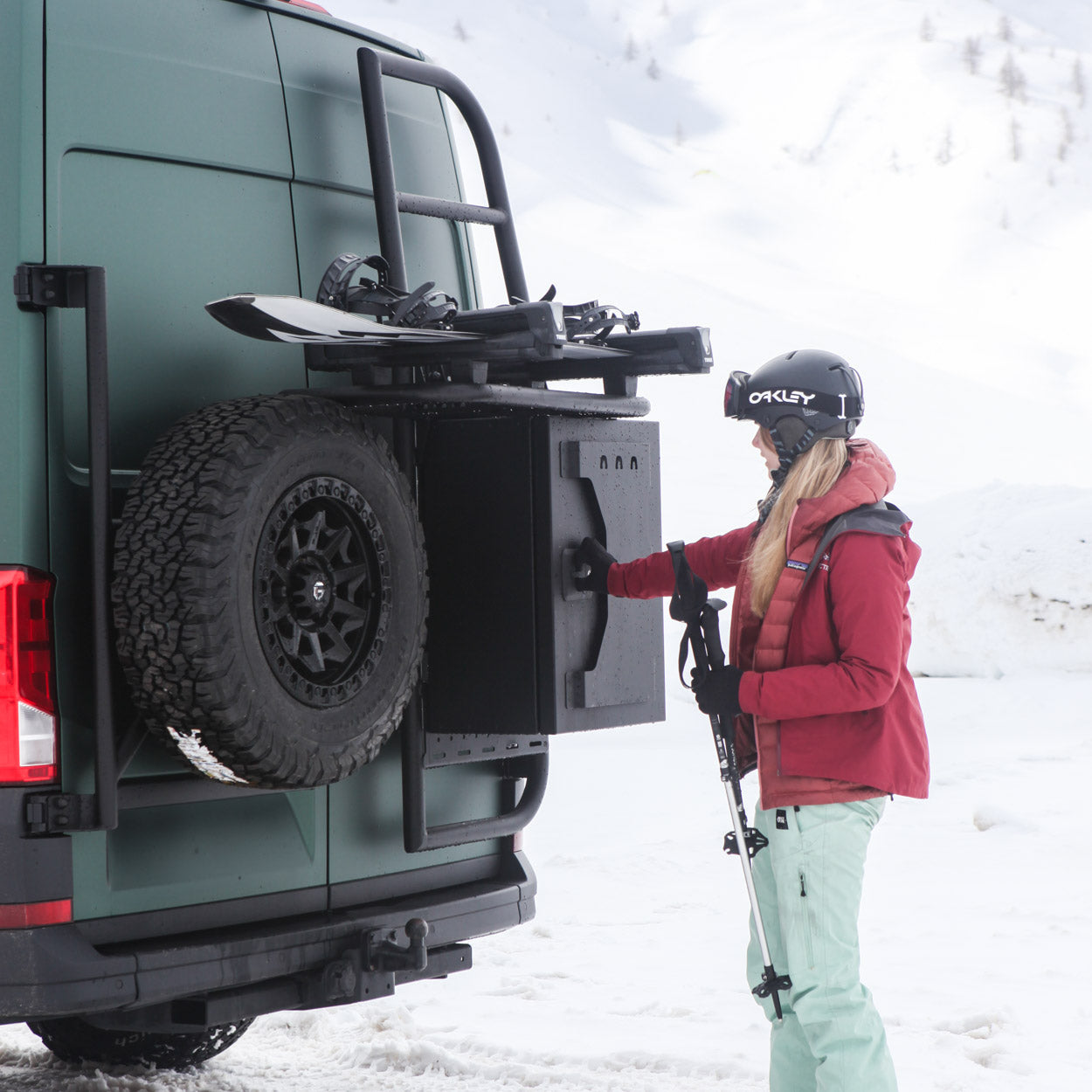

The tire carrier is also available together with the Cargo Ladder, Cargo Box 700 and Extra Cargo Ladder Step in the Rear Exterior Package Deal for Crafter 2017+ or the Rear Exterior Package Deal for TGE.
Compatible with
+
-
Compatible with
- Volkswagen - Crafter 2nd generation (2017+)
- Dethleffs - Globetrail Performance

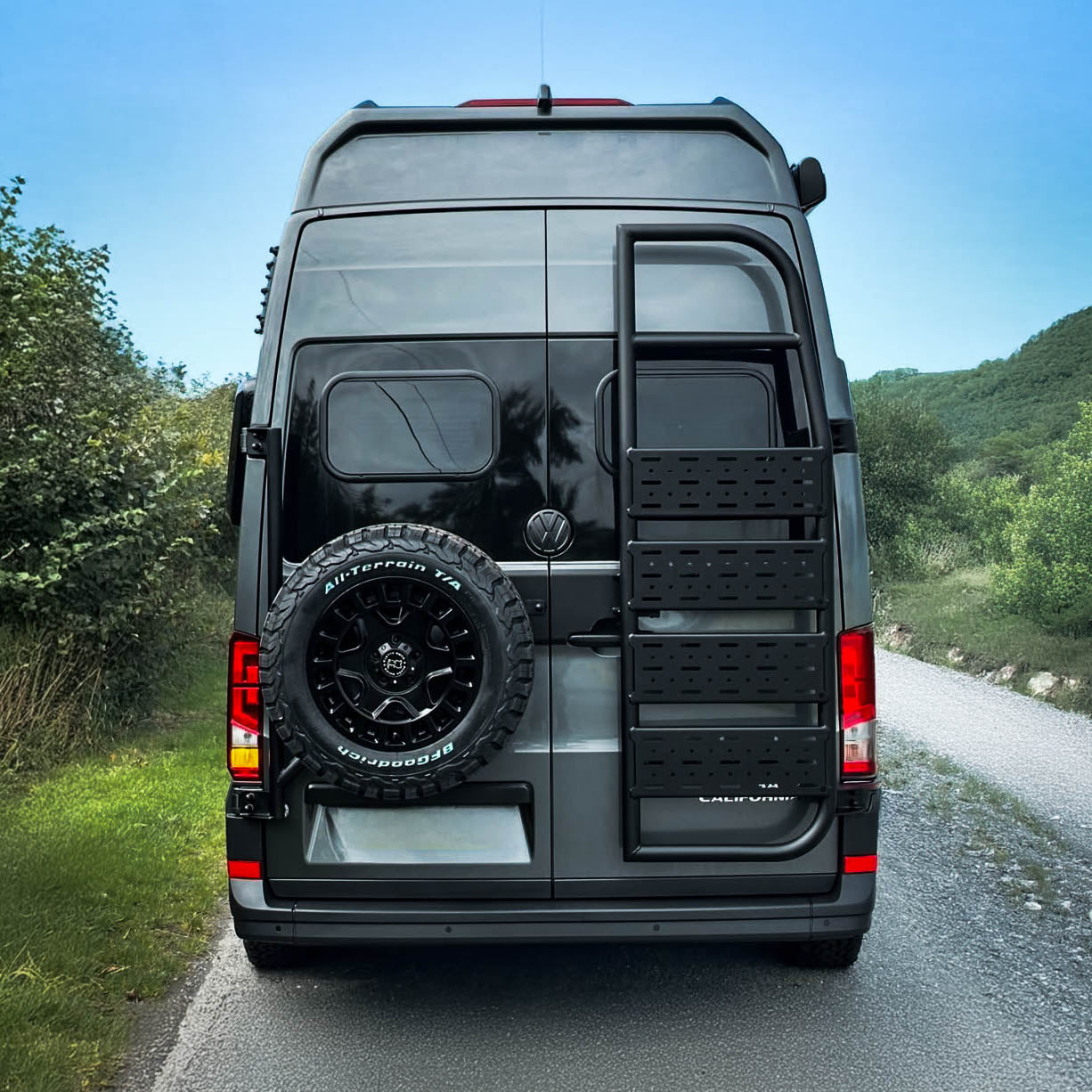

- Volkswagen - Grand California 600/680
- Westfalia - Sven Hedin
- MAN - TGE (2017+)
