Tyre Carrier
Tyre Carrier

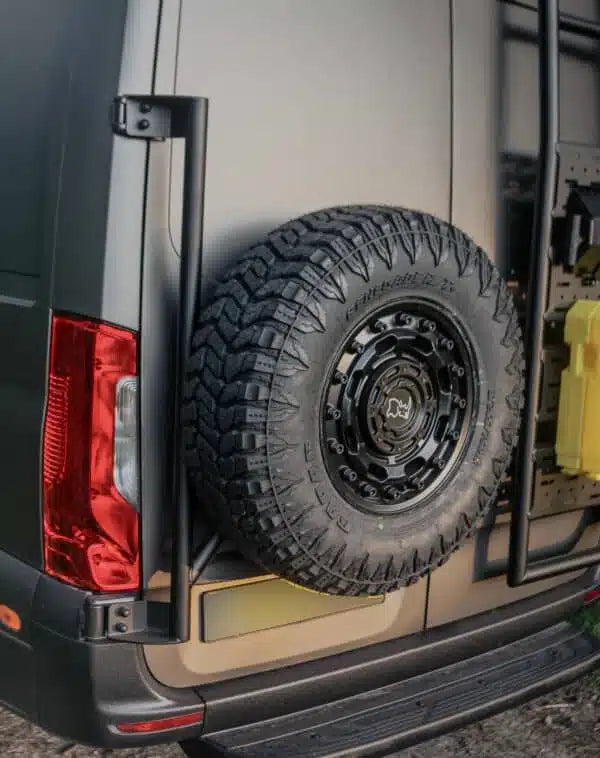

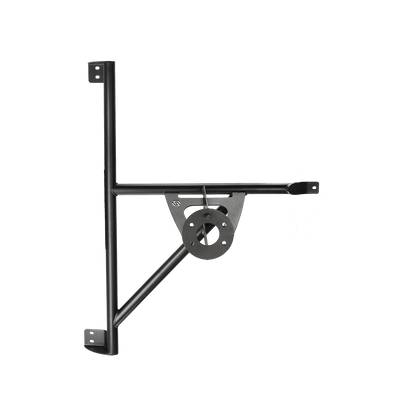

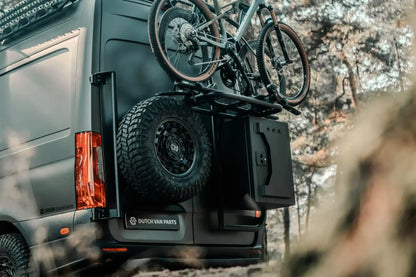

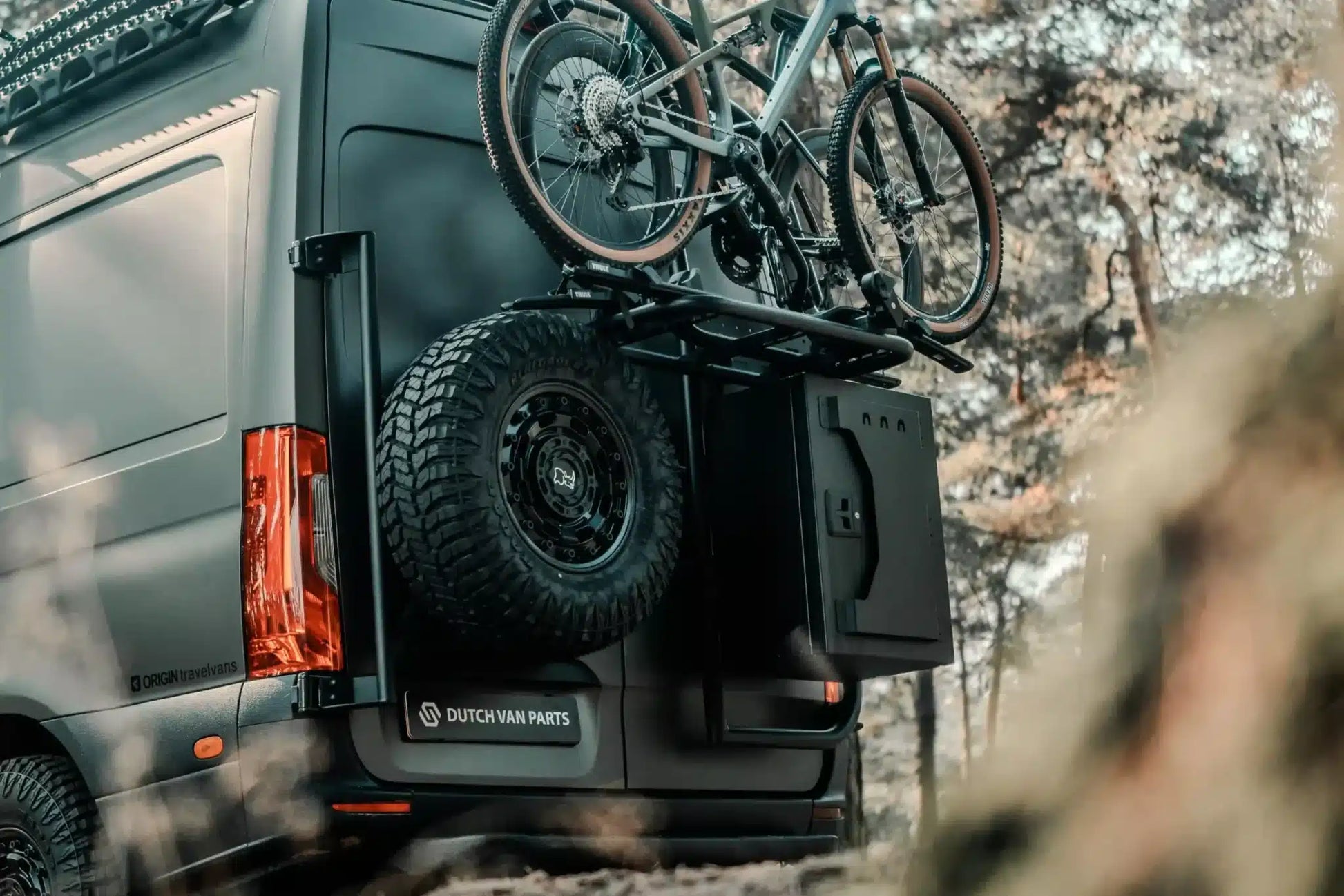

Save space under your van and make your spare easily accessible with the Sequoia Tyre Carrier for Mercedes Sprinter (W907/W910).
Shipping time: In stock. Ships in 3 - 5 days
Couldn't load pickup availability
Description
+
-
Description
There are several reasons to consider a tire carrier for your Mercedes Sprinter 2018+ campervan. One of the main reasons is upgrading to larger tires. The factory space for the spare tire underneath the van may not accommodate a bigger wheel, so you'll need an alternative location.

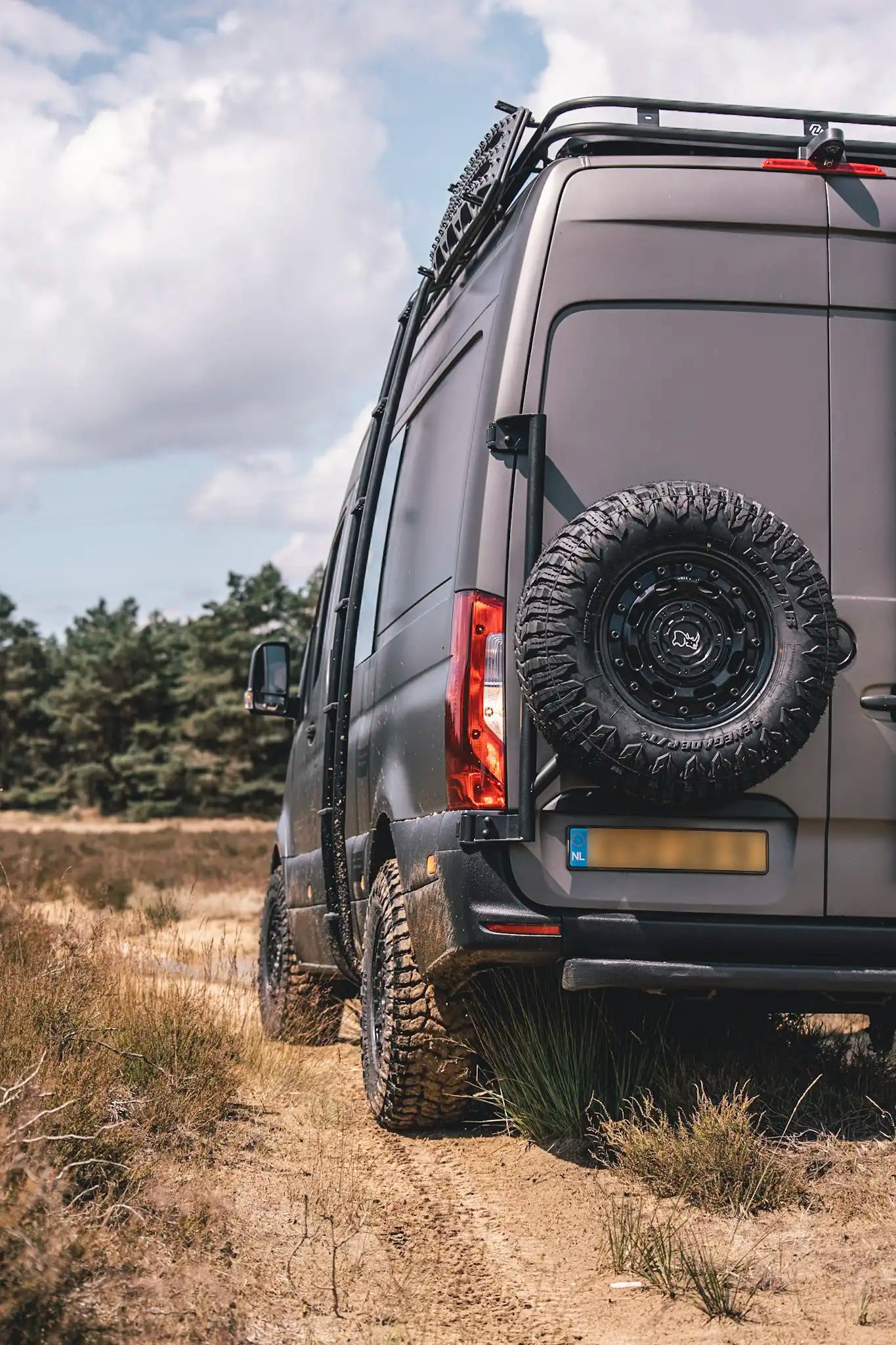

Additionally, moving the spare tire frees up valuable space under the van for water tanks or auxiliary fuel tanks. In off-road situations or difficult terrain, accessing a spare tire mounted underneath can be challenging. Having it on a tire carrier makes it far more accessible when you need it most.
Sequoia Tire Carrier installation requirements
270-degree doors:
You will need to replace the 270-degree hinges with 180-degree hinges. - Please get in touch if you require 180 degree hinges. We can supply, colour match and replace if required.

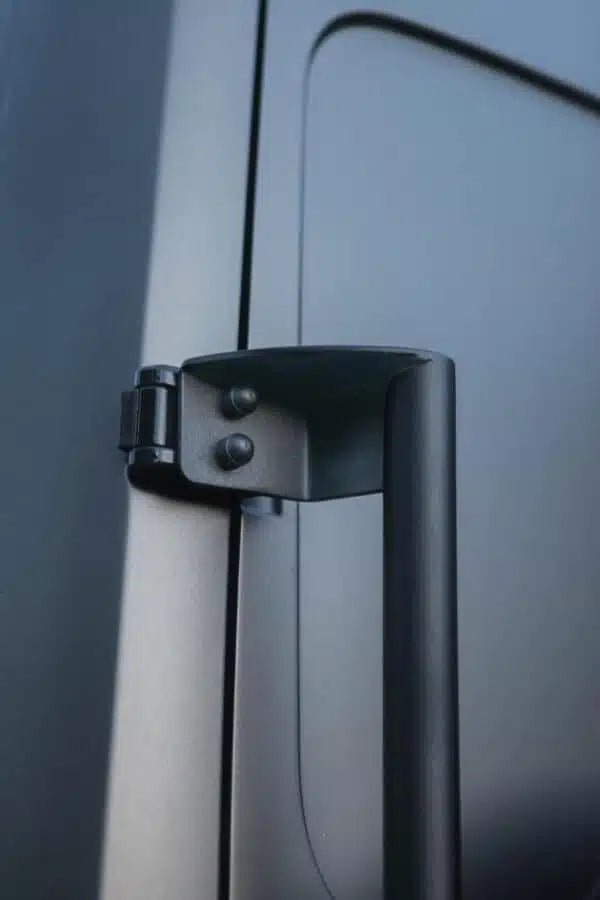

The Tyre Carrier bolts through the hinges. It also requires a small hole to be drilled through the back door.
180-degree doors:
The Tyre Carrier is ready to attach to the hinges and mounts to the door.
Big wheels may require extra spacers, but for most tire/rim combinations, they aren't necessary. Spacers are typically only needed when you're using a high ET rim, like an ET 62, combined with a large tire, or when the wheel diameter is 33” or larger. Contact us if you need advice on spacers for your tire carrier.

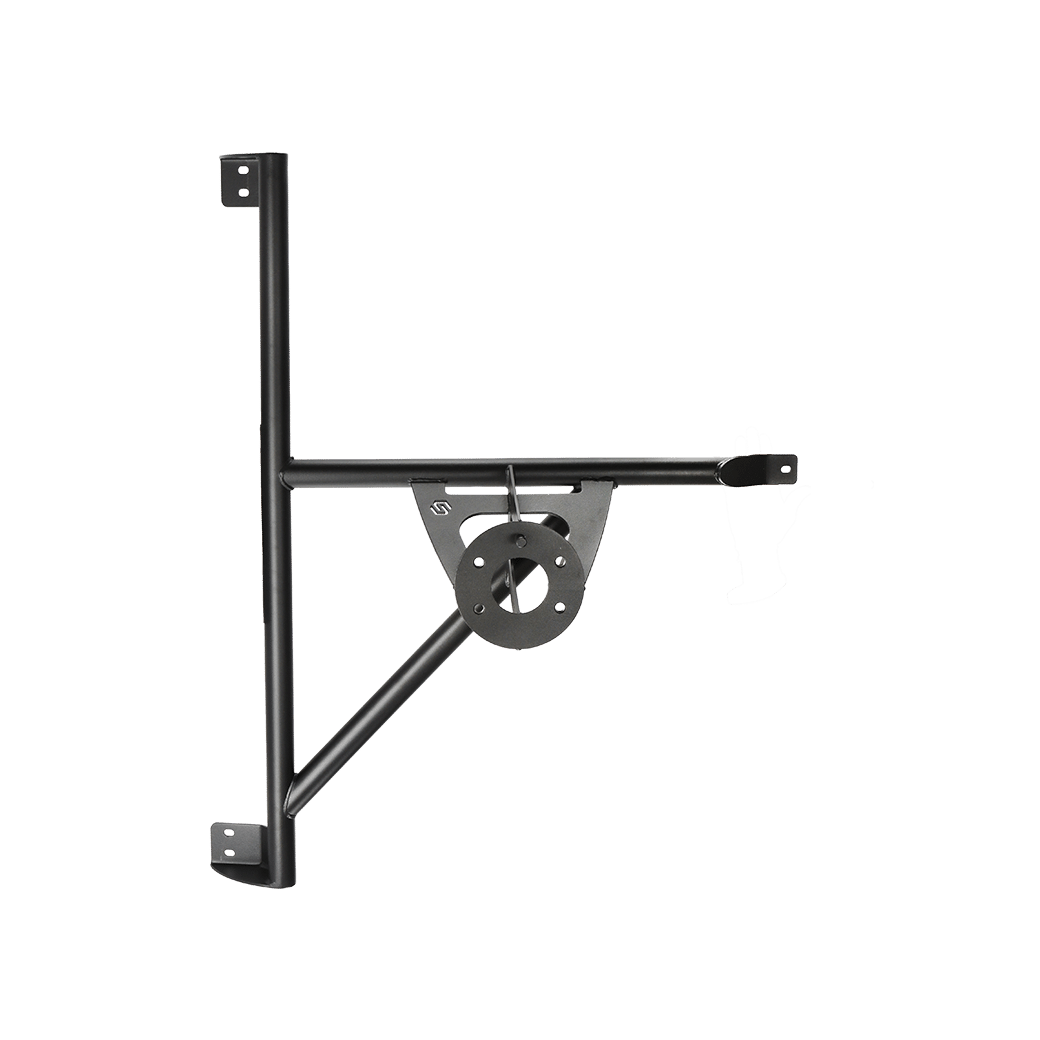

Sequoia Tire Carrier specifications
-

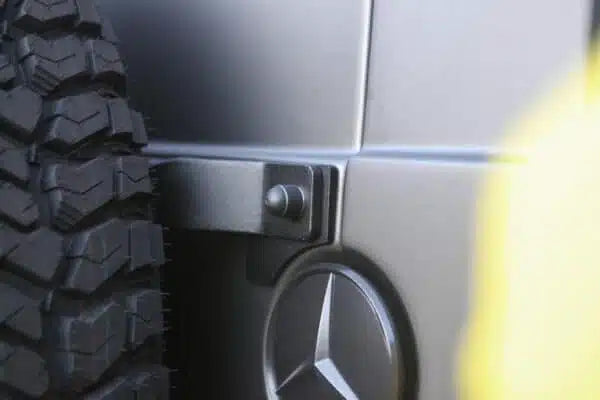

Compatible with almost all tire/rim sizes (6×130) (Max (~33”wheels) tire size before Mercedes emblem needs to be modified). Check your wheel size here.

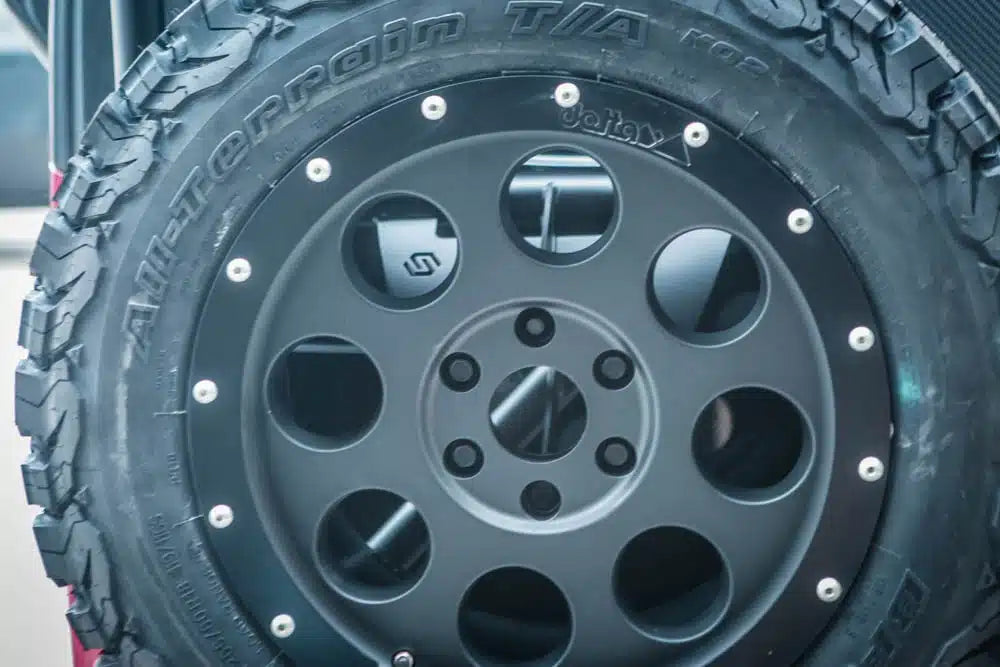

Made of steel (long-term stress-resistant) - Easy spare wheel mounting using stainless center pin (single-person mounting)
- Only compatible with 180-degree hinges
- Weight distributing directly on hinges, not on the door

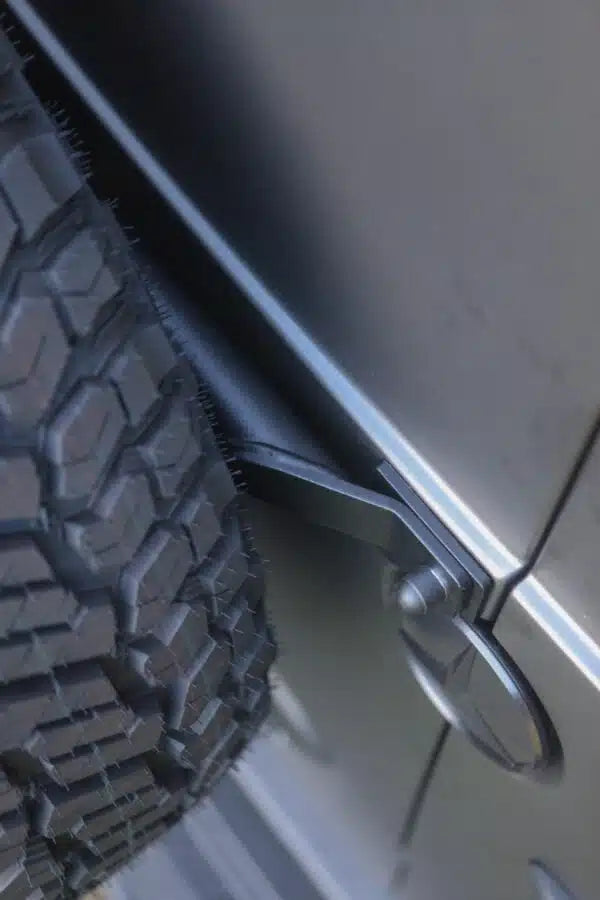

- Bolted on the strong part of the door with a bushing in between sheet metal layers
- Aluminium door plate, this plate will reinforce the door, closing the door (standard included)
- Bolt-on product
- Stainless steel hardware

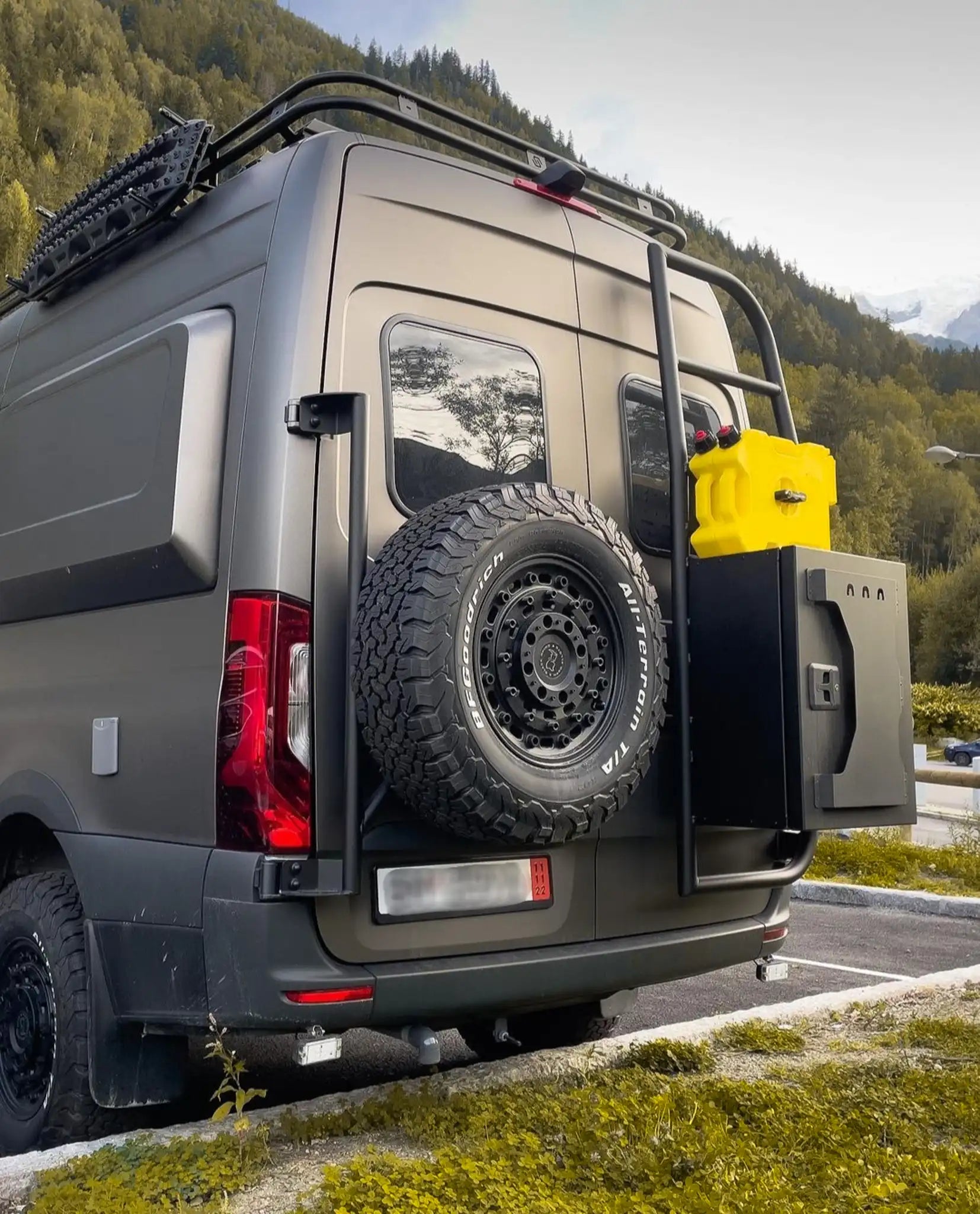

The tire carrier is also available together with the Cargo Ladder, Cargo Box 700 and Extra Cargo Ladder Step in the Rear Exterior Package Deal.
Product disclaimer
Project Yonder does not accept any liability nor hold responsibility for the regulations you need to abide by or any problems you might encounter with this product.
Compatible with
+
-
Compatible with
- Hymer - Free S Campus
- Hymer - Grand Canyon S
- Hymer - Grand Canyon S Crossover
- Westfalia - James Cook
- Yucon - K-Peak
- Mercedes Benz - Sprinter W907 (2018+)
- Mercedes Benz - Sprinter W910 (2018+)
- Yucon - V-City
If your vehicle is not listed, you're unsure whether this product is compatible with your vehicle or would like further advice, please get in touch - hello@projectyonder.co.uk
Additional info
+
-
Additional info
Tyre Carrier:
- Shipping weight: 14,2 kg
- Shipping dimensions: 119 × 101 × 32 cm
- Product weight: 9,2 kg
- Material: Steel
- Finish: 3-layer protection metalizing zinc spray / primer / topcoating
- Requirement: 180-degree hinges
