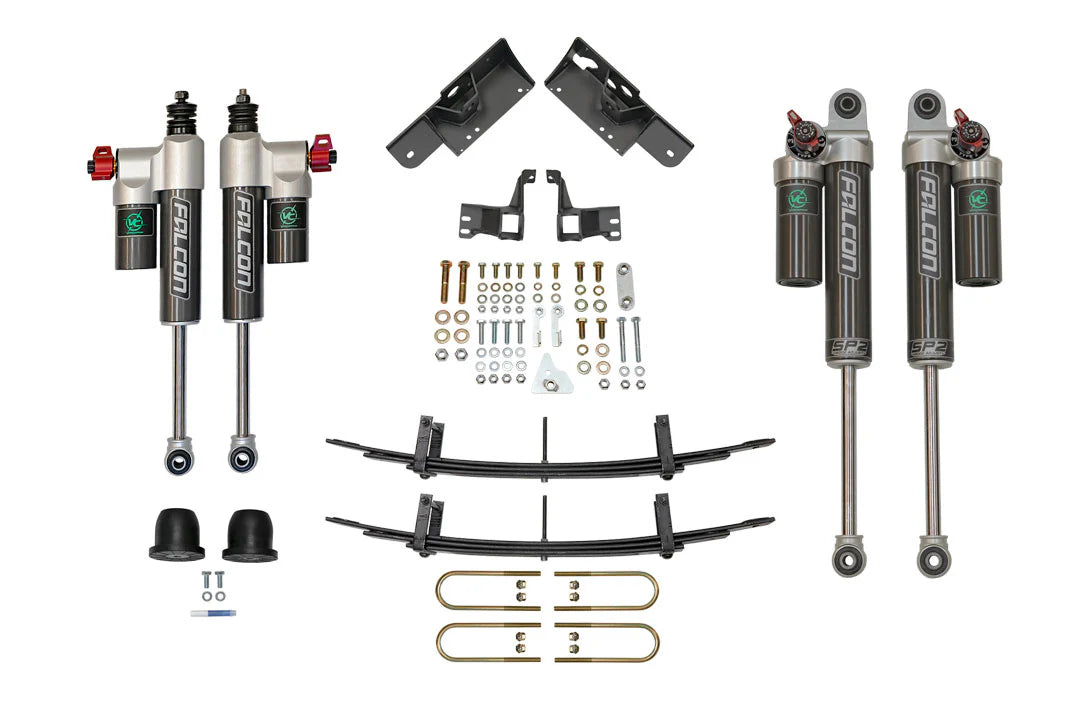

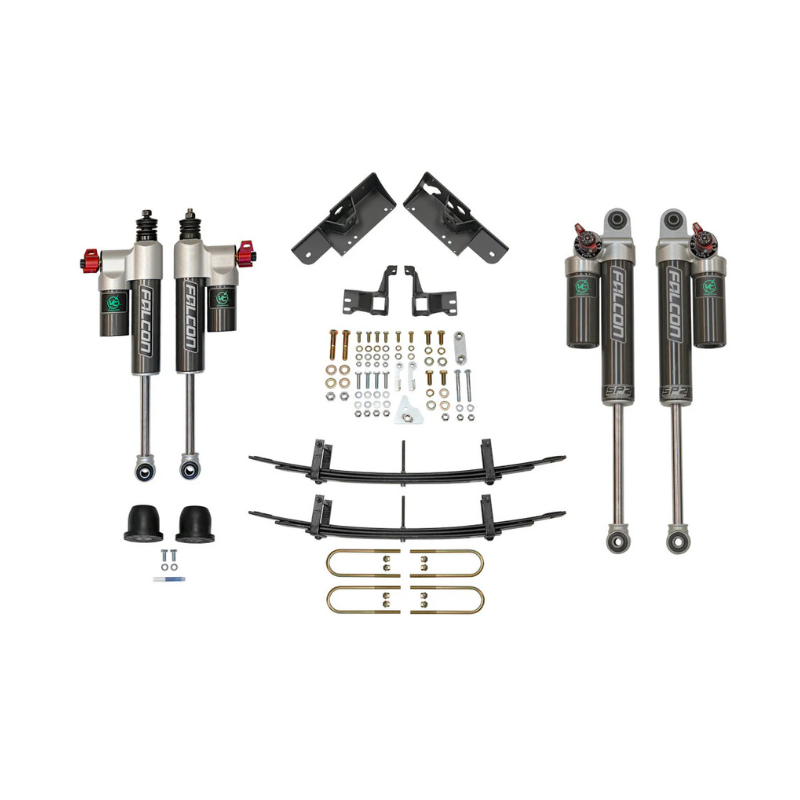

STAGE 4.3 SYSTEM - SPRINTER AWD, 4X4 (2015-PRESENT 2500 ONLY) by VAN COMPASS

Stage 4.3 System Benefits:

• VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings

• Restores lost ride height and reduces sagging
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance
• 100% bolt on

Intended Use:

• Adventure and conversion vans near or over GVWR
• Class B RVs
• Heavy Passenger vans carrying loads


It's the best seller for a reason. With everything needed to properly correct the handling problems heavy Sprinters can experience, our 4.3 kit is the go-to choice for many owners. Whether you are looking for maximum stability in highway travel and treacherous wind conditions, or maximum compliance off pavement, we're able to minimize side to side sway and balance out jarring impacts using our deep knowledge of suspension tuning.

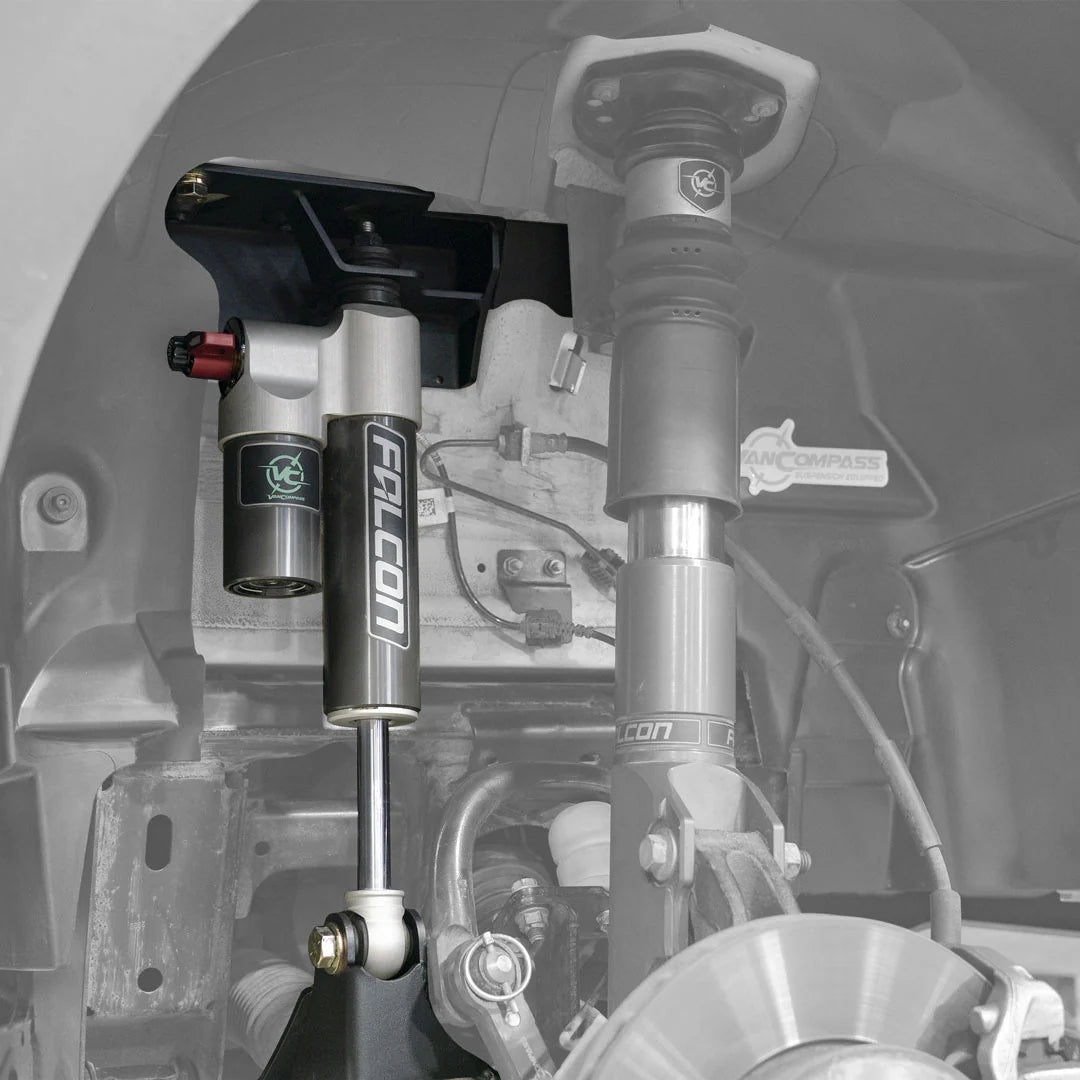

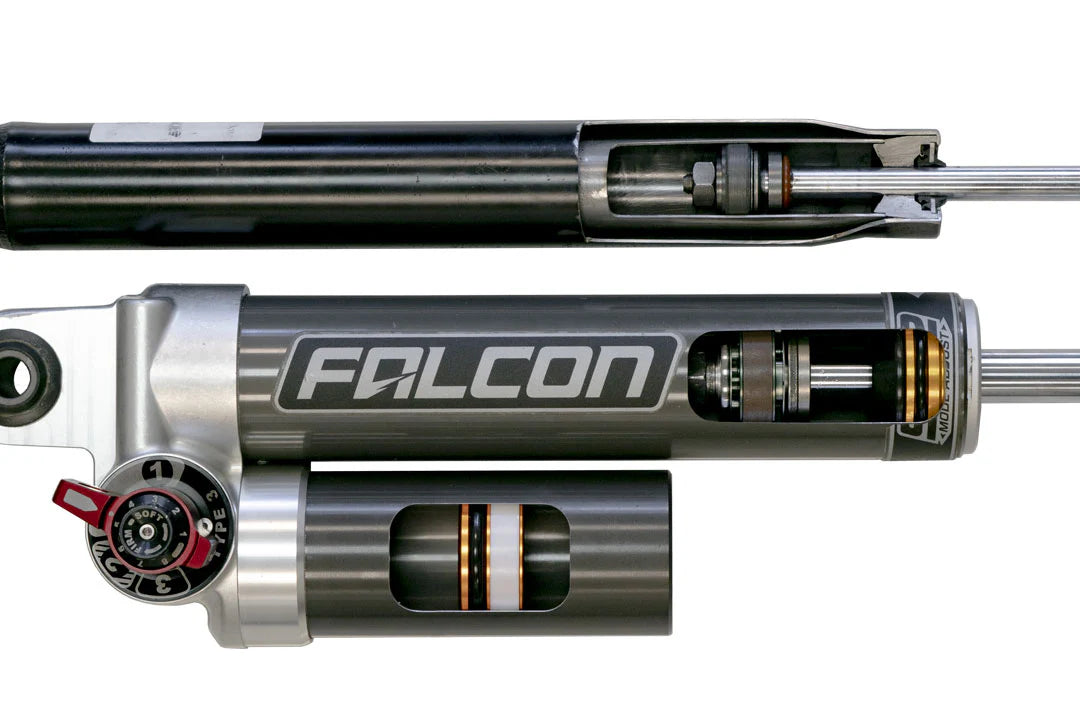

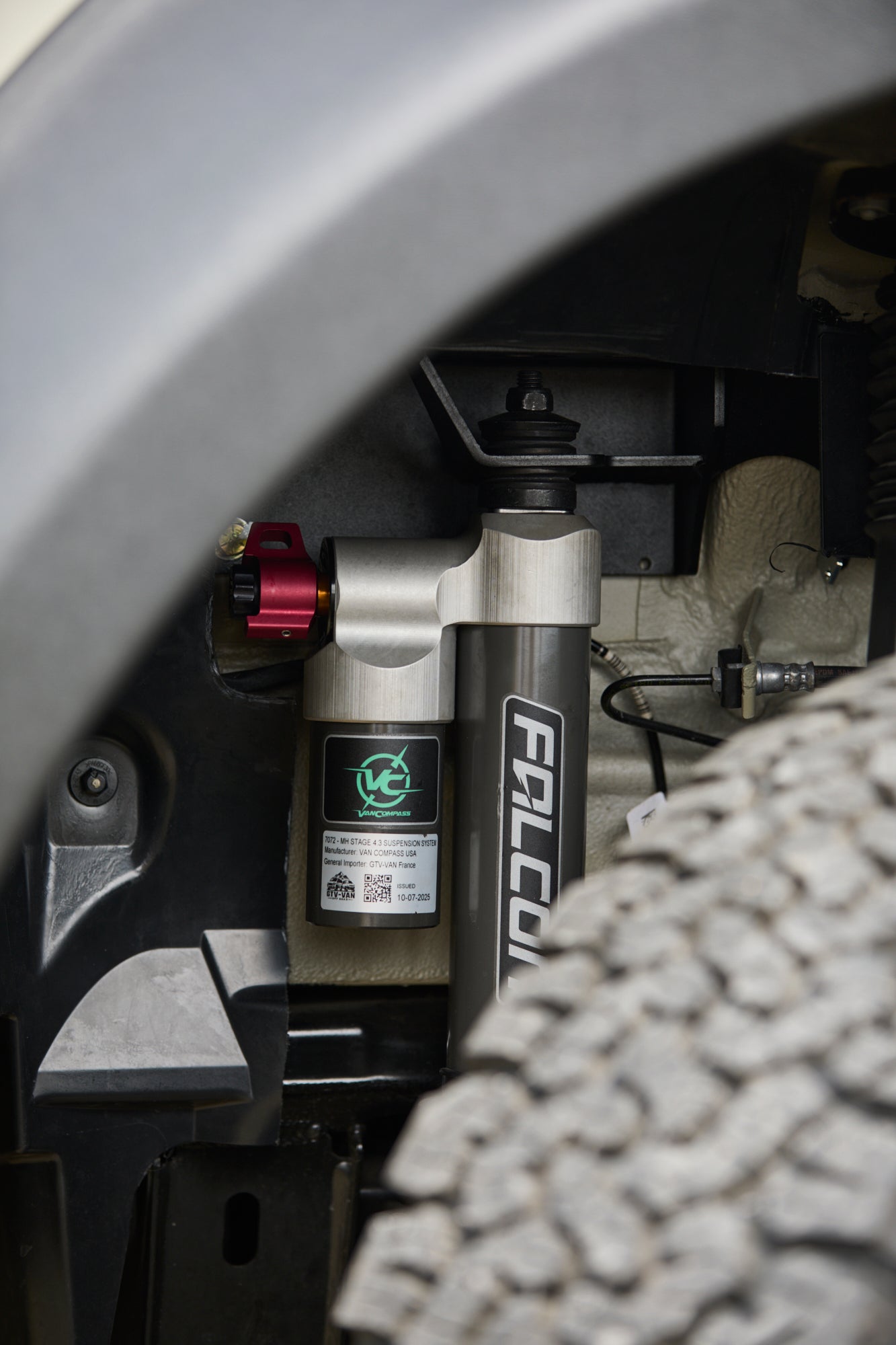

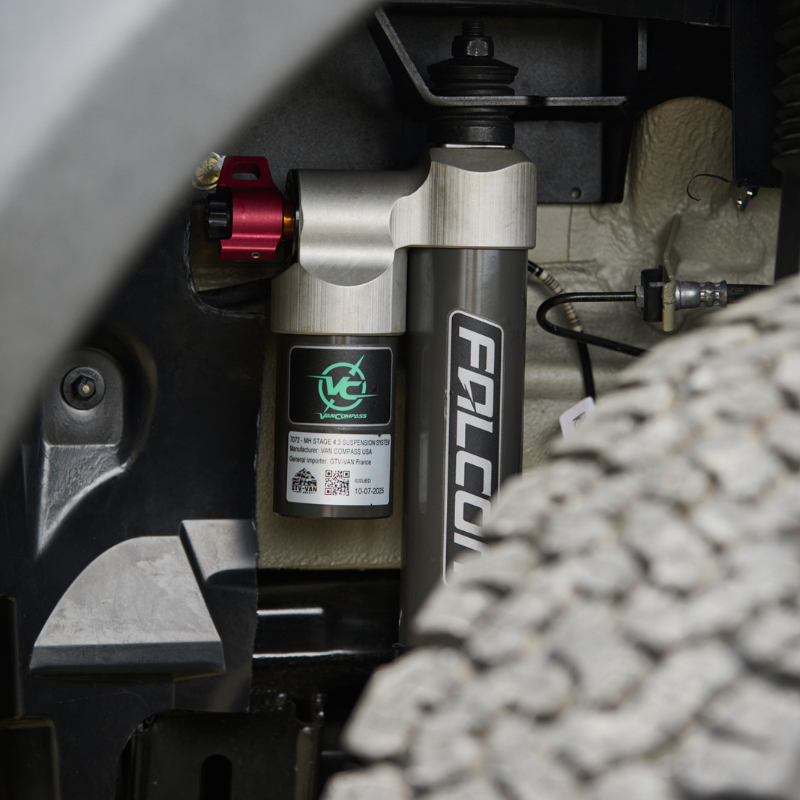

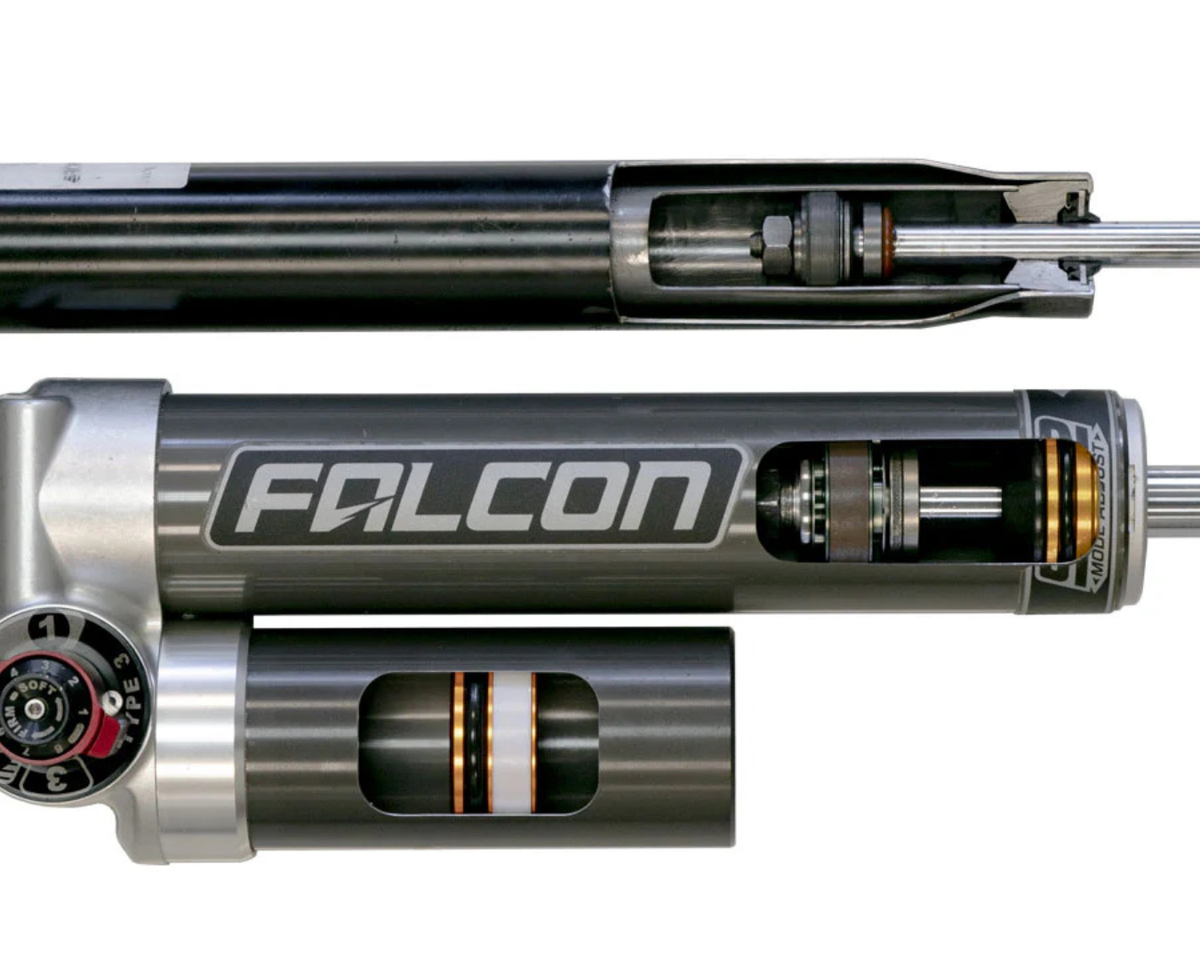

The cornerstone of our Stage 4.3 kit is the 4-corner, adjustable Falcon 3.3 Fast Adjust Shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters. A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.

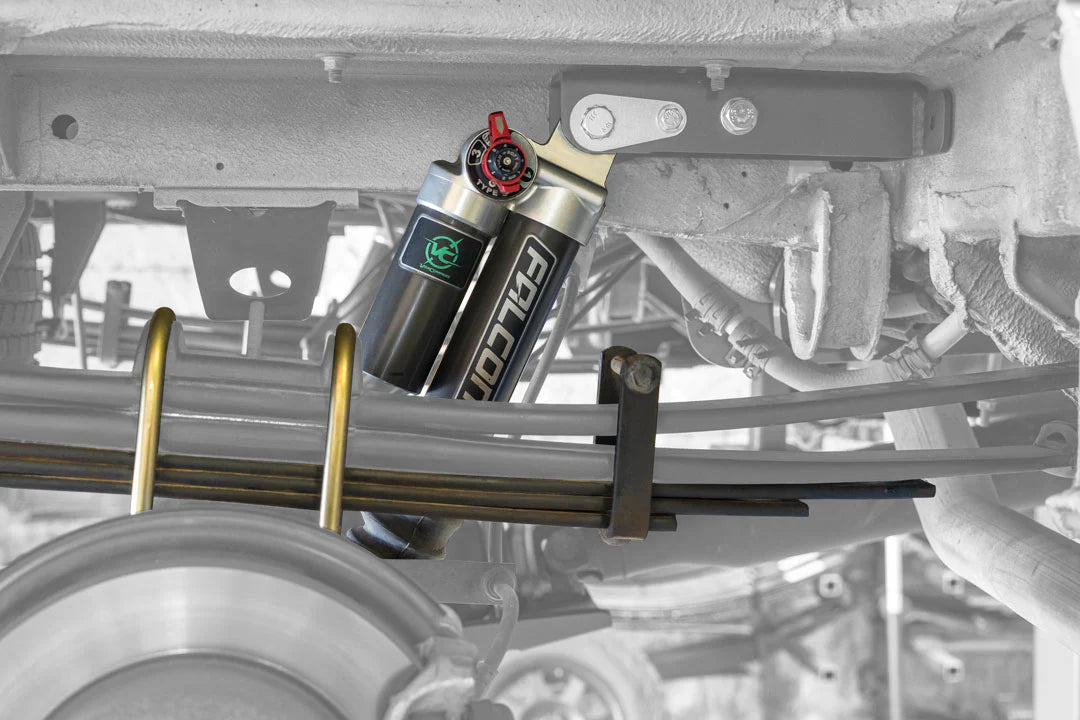

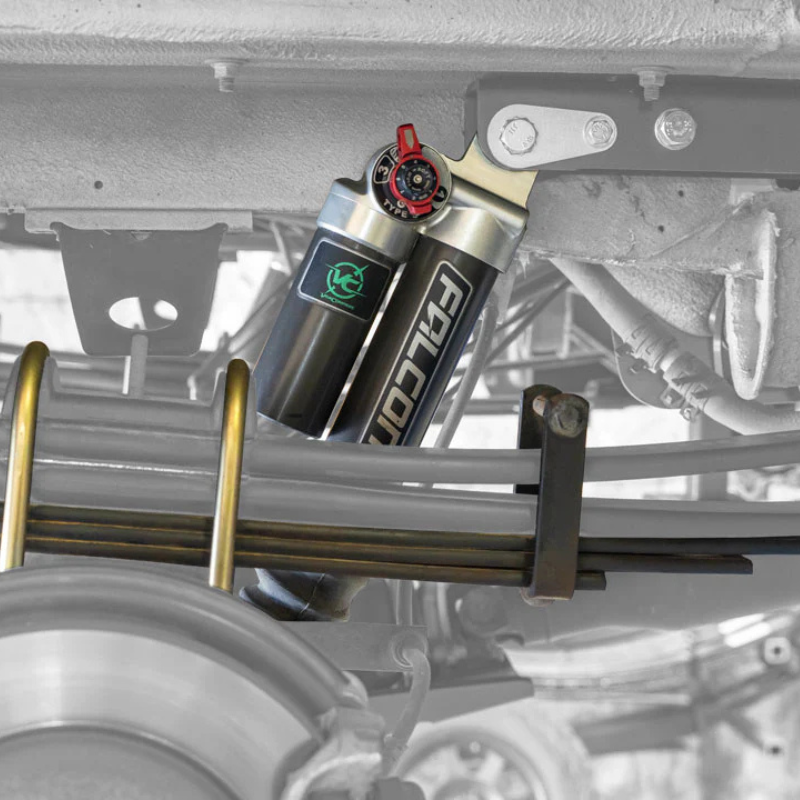

The rear mini leaf spring pack, tuned specifically to work with the stock rear leaf spring, restores lost ride height and corrects sag while retaining the quiet ride of the factory leaf spring. Typically, 1.25" of rear lift is seen, resulting in a nicely levelled stance.

Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

MODEL: SPRINTER 2500

YEAR: 2015-PRESENT

DRIVE TYPE: 4X4 and AWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

Recommended Wheel Size: 17" x 8.5", +45mm offset

NOTE: Wheels with 6.5" backspacing, or +52mm offset on an 8" wheel, require a minimum 14 mm wheel spacer to prevent tire contact with auxiliary shocks at full steering angle. EX: Black Rhino Warlord, Method 701

NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
