STAGE 4.3 DUALLY SYSTEM - SPRINTER AWD, 4X4 (2015-UP 3500) by VAN COMPASS
STAGE 4.3 DUALLY SYSTEM - SPRINTER AWD, 4X4 (2015-UP 3500) by VAN COMPASS
Everything needed to properly correct the handling problems heavy Sprinters can experience, the Van Compass Stage 4.3 kit is the go-to choice with Opti-Rate leaf spring pack, offering flexibility for different van weights.
Shipping time: Usually ships in 1 - 2 weeks
Couldn't load pickup availability
Description
+
-
Description
Stage 4.3 System Benefits:
- VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
- Restores lost ride height and reduces sagging
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance
- 100% bolt on
Intended Use:
- Adventure and conversion vans near or over GVWR
- Class B RVs
- Heavy Passenger vans carrying loads
It's the best seller for a reason. With everything needed to properly correct the handling problems heavy Sprinters can experience, our 4.3 kit is the go-to choice for many owners. Whether you are looking for maximum stability in highway travel and treacherous wind conditions, or maximum compliance off pavement, we're able to minimize side to side sway and balance out jarring impacts using our deep knowledge of suspension tuning.

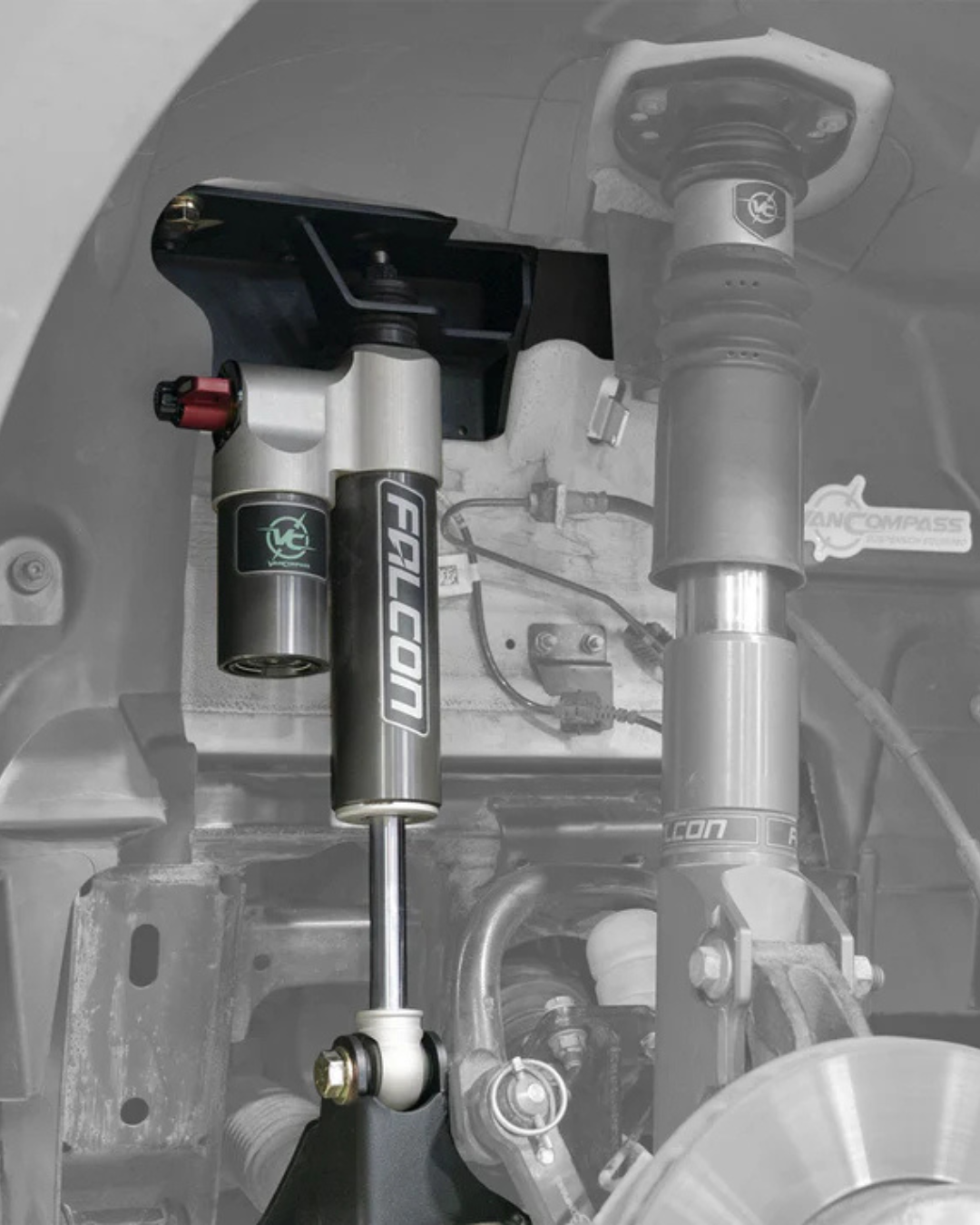

The cornerstone of our Stage 4.3 kit is the 4-corner, adjustable Falcon 3.3 Fast Adjust Shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters. A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.

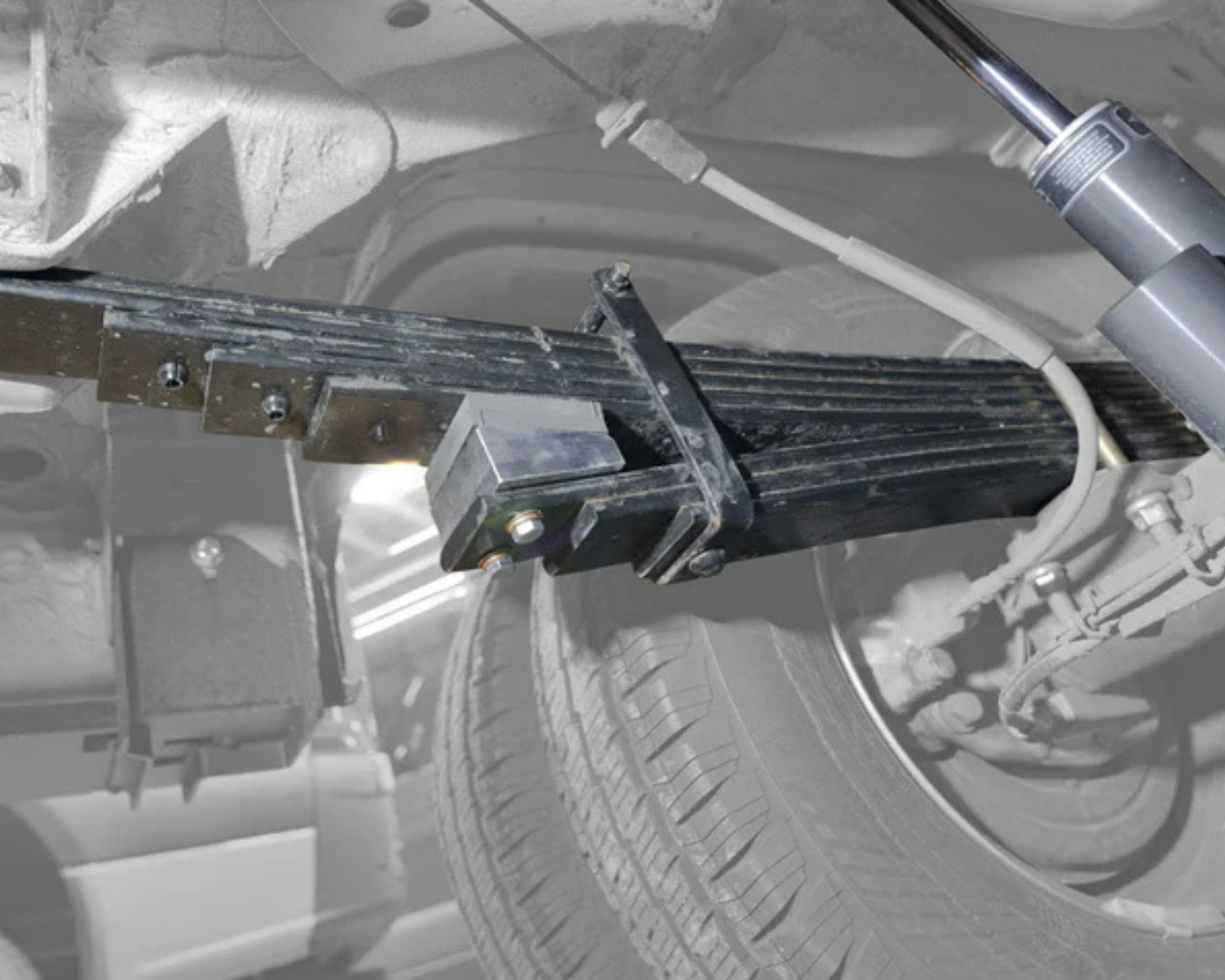

The Opti-Rate leaf spring pack offers flexibility for different van weights, restores lost ride height and corrects sag. Typically, 1.25" of rear lift is seen, resulting in a nicely leveled stance.
Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.
Compatible with
+
-
Compatible with
Mercedes Sprinter 2015+ AWD & 4X4 - 907/906
Additional info
+
-
Additional info

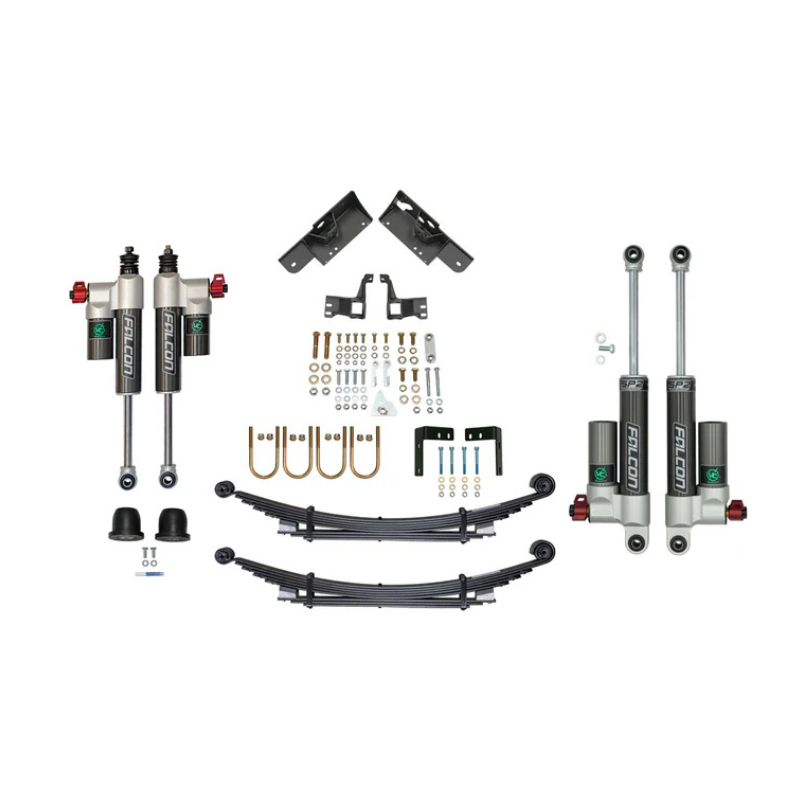

INCLUDED COMPONENTS

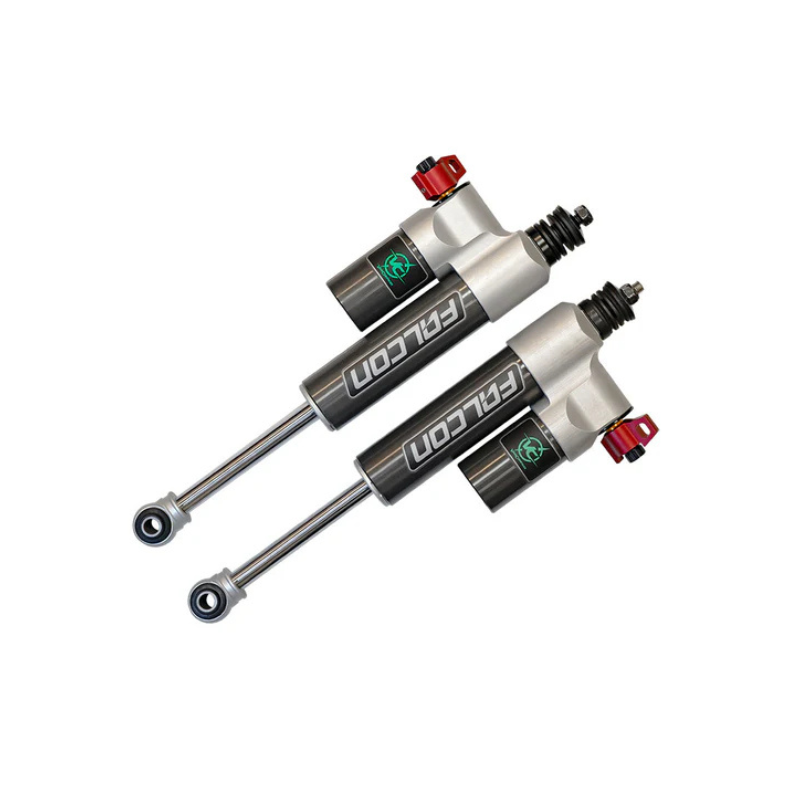

- Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
- Front Bump Buddies

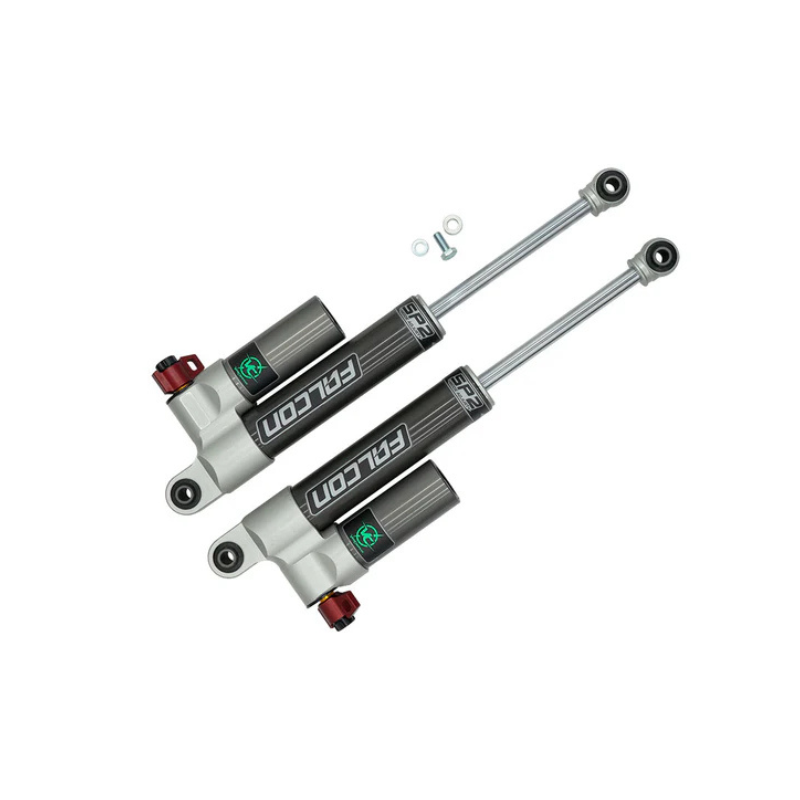

- Falcon 3.3 Fast Adjust Rear Shocks with SP2

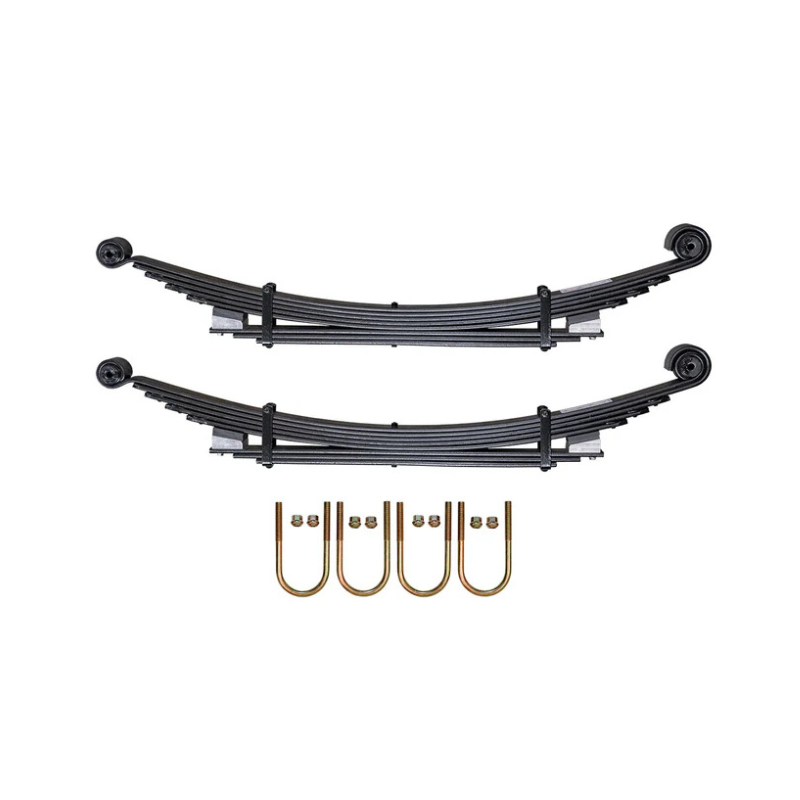

- Opti-Rate Full Replacement Rear Leaf Spring System
- Dust boots for all 4 shocks.
- All necessary hardware and instructions for a simple installation
MODEL: SPRINTER 3500
YEAR: 2015-PRESENT
DRIVE TYPE: 4X4 and AWD
>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<
>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<
NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
