Sentinel 9" Highline Gen2
Sentinel 9" Highline Gen2
Serious lighting for serious adventures. Delivers incredible visibility on remote trails with an eco mode that won't drain your batteries during those extended off-grid escapes.
Shipping time: Usually ships in 3 - 5 days
Couldn't load pickup availability
Description
+
-
Description

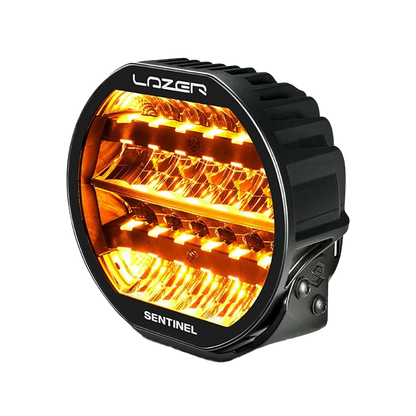

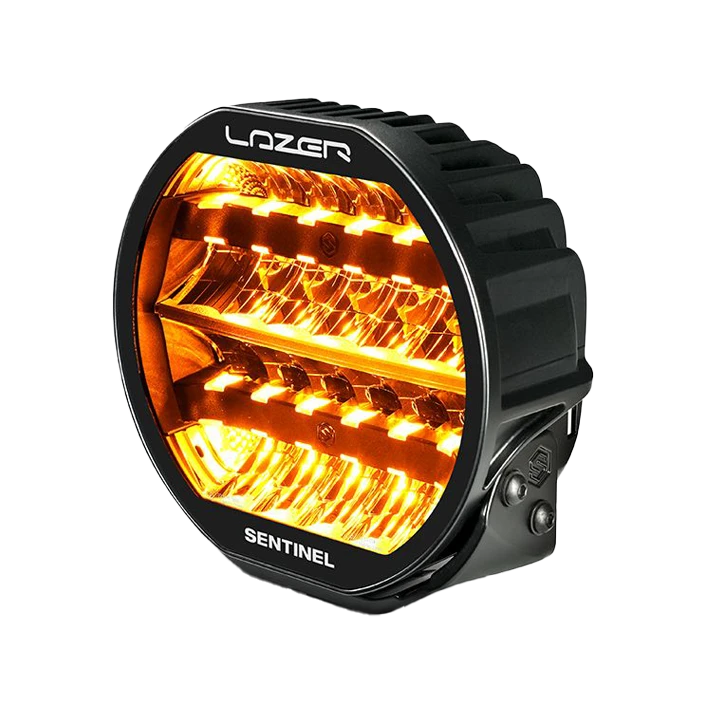

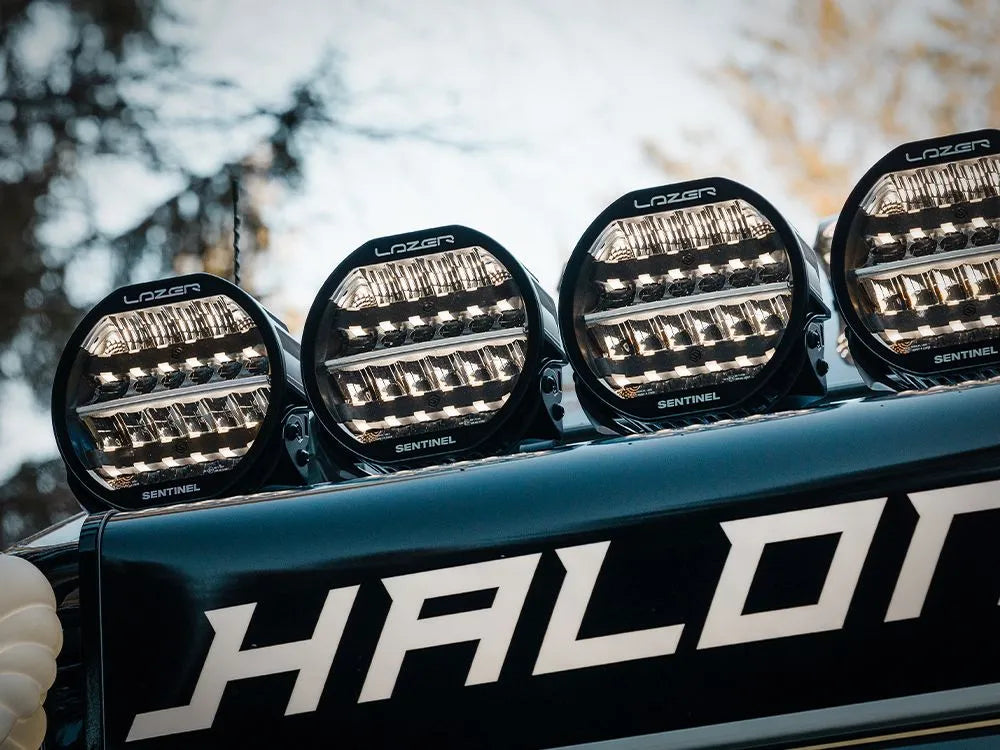

The Sentinel 9'' Highline Gen2 is the latest addition to the Sentinel range of 9" round LED lamps, combining high-end aesthetics with powerful, road-legal lighting performance. Designed primarily with the heavy truck sector in mind, this lamp is equally well-suited to elevated mounting positions on 4x4 campervans, particularly Mercedes Sprinters and similar adventure vehicles.

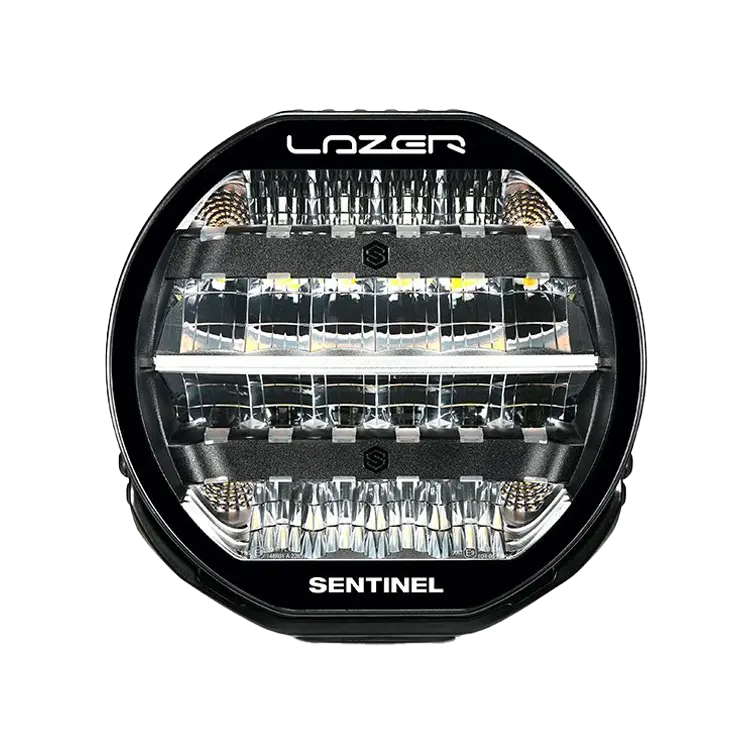

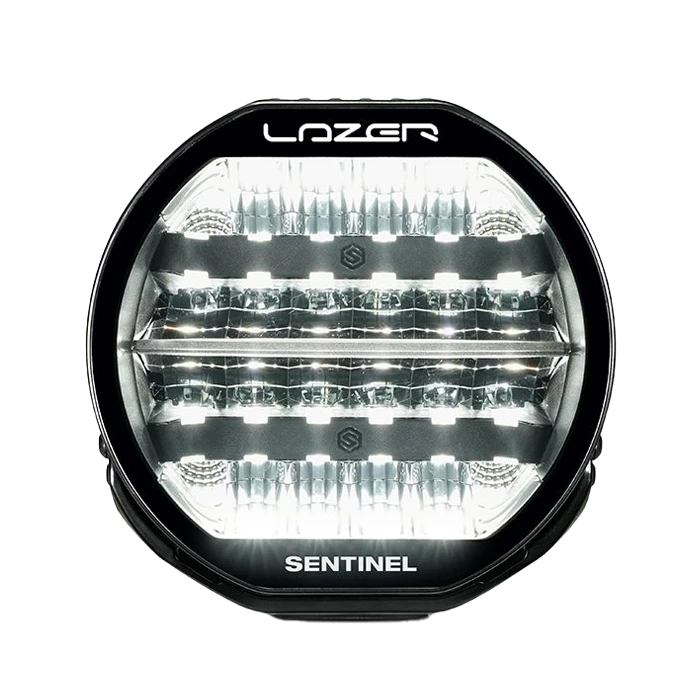

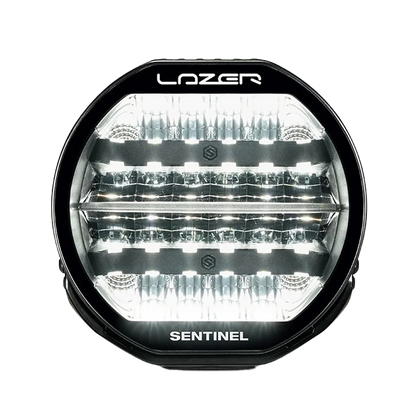

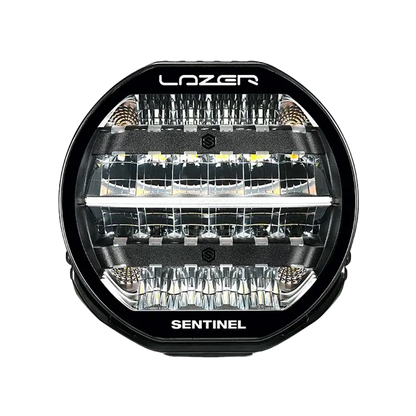

Featuring a stealth black internal design courtesy of black PCBs and bezel details, the lamp houses 20 high-power premium 'bin' LEDs that produce an impressive 17,020 raw lumens in Boost mode. The 52° horizontal and 18° vertical beam angle is specifically optimised for elevated mounting positions – delivering exceptional visibility without wasting light into the sky or ground.
In Low Output mode, the lamp is UNECE Regulation 149 approved for road-legal high beam use, delivering 1 lux at 583 metres. The dual-output system is managed via intelligent "flash-to-dim" functionality – simply flash the light off/on quickly to switch between high and low brightness modes. This gives you instant control over glare when approaching road signs or encountering oncoming traffic, making it ideal for responsible overlanding across Europe.
The 5000K colour temperature ensures comfortable, sharp light that enhances road safety and reduces eye fatigue during extended night driving. For 2025, the Highline features an updated position/backlight function approved under ECE Reg 148 (white only), plus optional dynamic welcome mode that can be configured to gradually brighten at start-up or cycle through white and amber colours when activating your position lights.

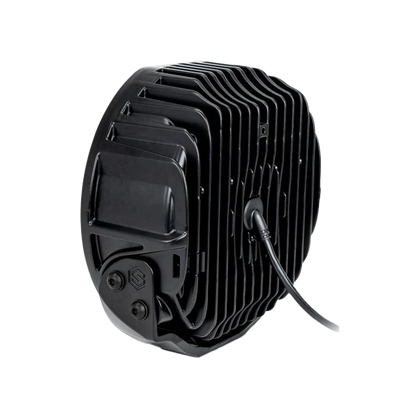

Built and engineered in the UK, the Sentinel 9'' Highline meets rigorous environmental and quality standards whilst delivering standout visual appeal. The 'slim' diecast aluminium mounting bracket with Sentinel stamp features anodised pre-treatment and automotive-grade powder top-coat for ultimate corrosion protection. Electronic thermal management optimises light output to preserve LED longevity, whilst the CAE-optimised heatsink offers improved thermal dynamics.
Comprehensive protection includes over-voltage and reverse polarity protection, whilst the 'unbreakable' polycarbonate lens with hardcoat lacquer and A2 stainless steel fasteners with automotive-grade black coating ensure the lamp withstands harsh conditions. With IP68 waterproof rating (1.5m submersion for 30 minutes), ECE R10 EMC certification, and a full 5-year warranty, this represents serious lighting capability for serious adventures.
Sentinel 9'' Highline installation requirements
The Sentinel 9'' Highline Gen2 kit includes:
- 1x Sentinel 9'' Highline with Position Light - Gen2 (Black)
- 1x 'Slim' Mount Kit (1141k)
- 1x Installation Instructions
- Pre-wired male/female 3-pin Superseal connectors
Sentinel 9'' Highline specifications

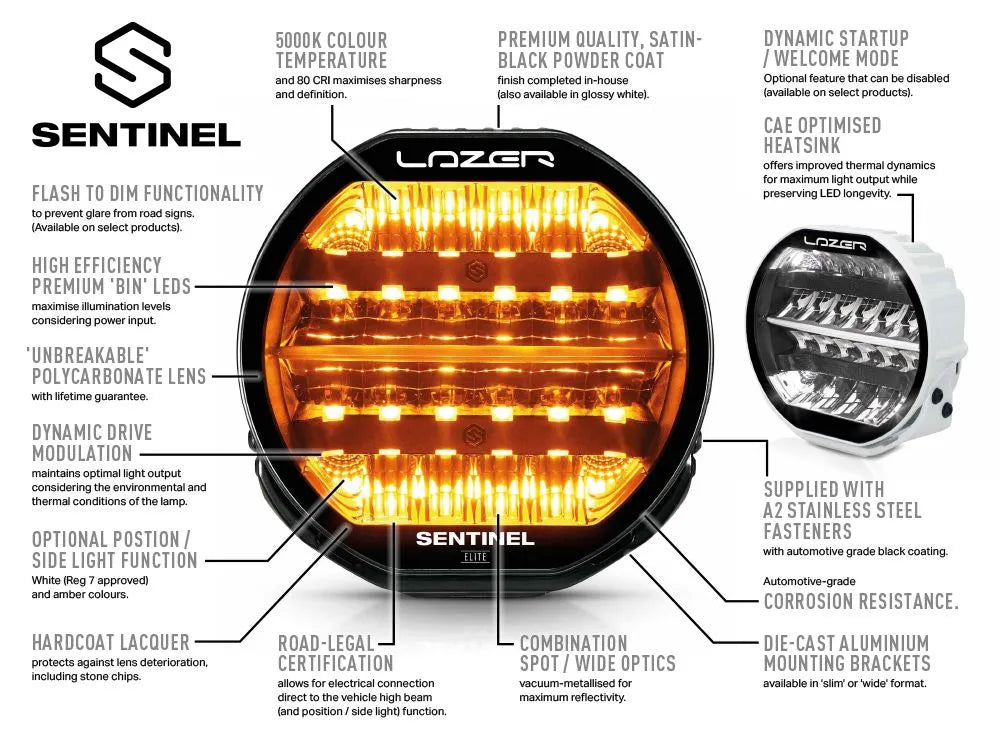

Key Features:
- 20x premium 'bin' LEDs
- Black PCB and bezel detail result in stealth black internal appearance
- 5000K LED colour temperature and 80CRI maximises sharpness and definition
- Ultra-reflective vacuum-metallised spot and wide optics
- Flash-to-dim functionality for avoiding glare
- Dual-output functionality – High and Low output modes
- UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Low Output mode only)

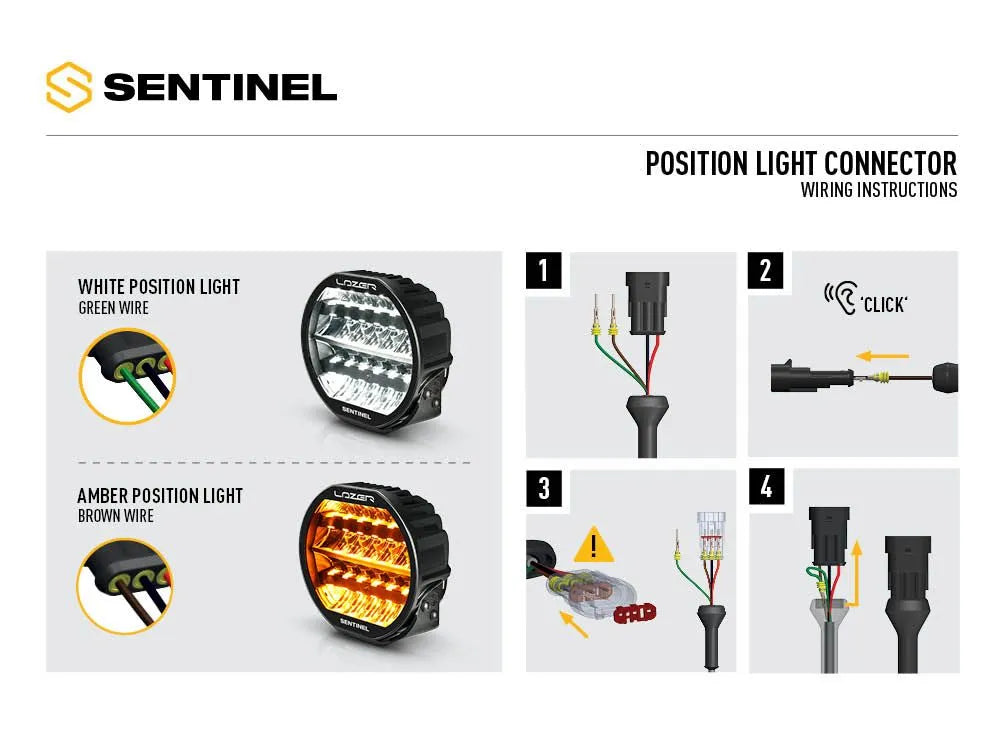

- UNECE Reg 148 position/side light function (white only)
- Dynamic start-up / Welcome Mode – two options activated as/if required
- Contemporary lamp design
- Supplied with 'slim' diecast aluminium mounting bracket featuring Sentinel stamp
- Electronic thermal management system optimises light output
- Anodised pre-treatment and automotive-grade powder top-coat

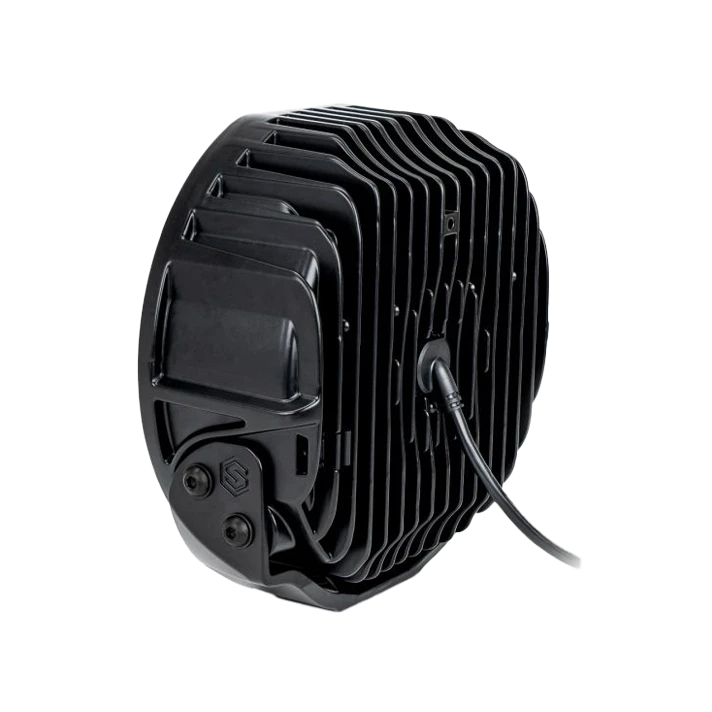

- CAE-optimised heatsink offers improved thermal dynamics
- Over-voltage and reverse polarity protected
- 'Unbreakable' polycarbonate lens with hardcoat lacquer
- A2 stainless steel fasteners with automotive-grade black coating
- UNECE approved Reg 10
- IP68 watertight – 1.5m submersion (30 mins)
- 5-year warranty
- Supplied with pre-wired 3-pin Superseal connectors
- Designed & manufactured in UK
Technical Specifications (1x Sentinel 9'' Highline):
| Specification | Boost Mode | Low Output / E-Mark Mode |
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 2.5 kg | 2.5 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 17,020 Lm | 3,404 Lm |
| Total Driver 'FOV' Flux † | 9,752 Lm | 1,950 Lm |
| Colour Temperature | 5000K | 5000K |
| Power Consumption | 130 Watts | 26 Watts |
| Peak Current Draw | 12 Amps | 2.4 Amps |
| Current Draw (at 14.4V) | 9.3 Amps | 1.8 Amps |
| Connector | 3-Pin Superseal (+25cm Cable) | |

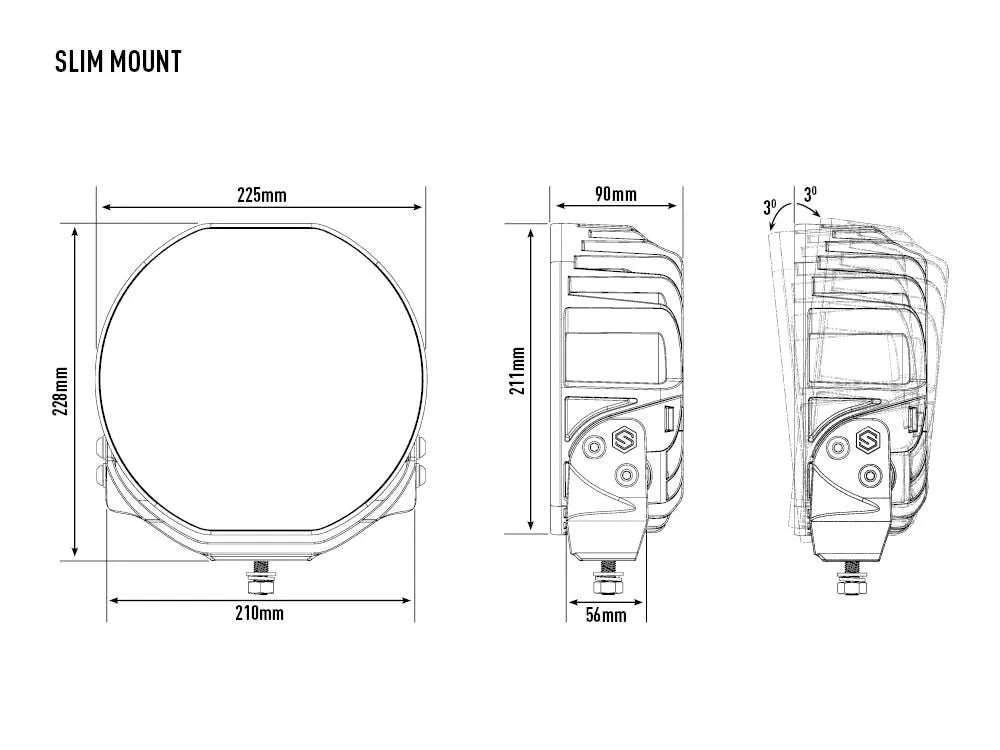

| DIMENSIONS | ||
| Width | 225 mm | 225 mm |
| Depth | 90 mm | 90 mm |
| Height | 230 mm | 230 mm |
| CERTIFICATION | ||
| IP Rating | IP68 | IP68 |
| High Beam (E9 approval) | ECE R149 - Ref: 12.5 (in Low Output Mode only) | |
| Position Light (white only) | ECE R148 | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Dump Load Protection | ISO 7637-2 | |

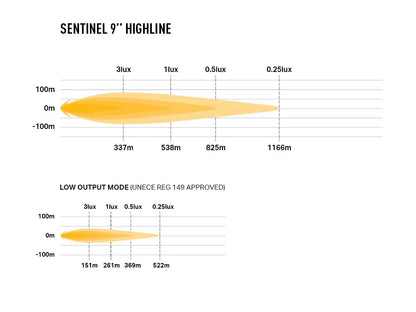

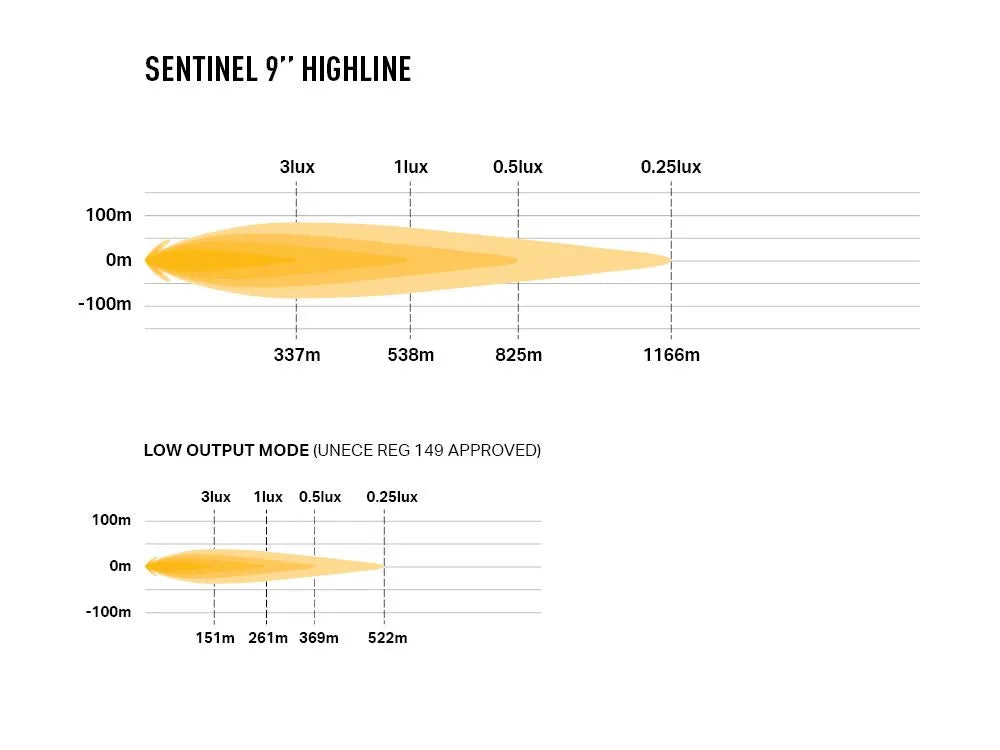

| PHOTOMETRIC DATA | ||

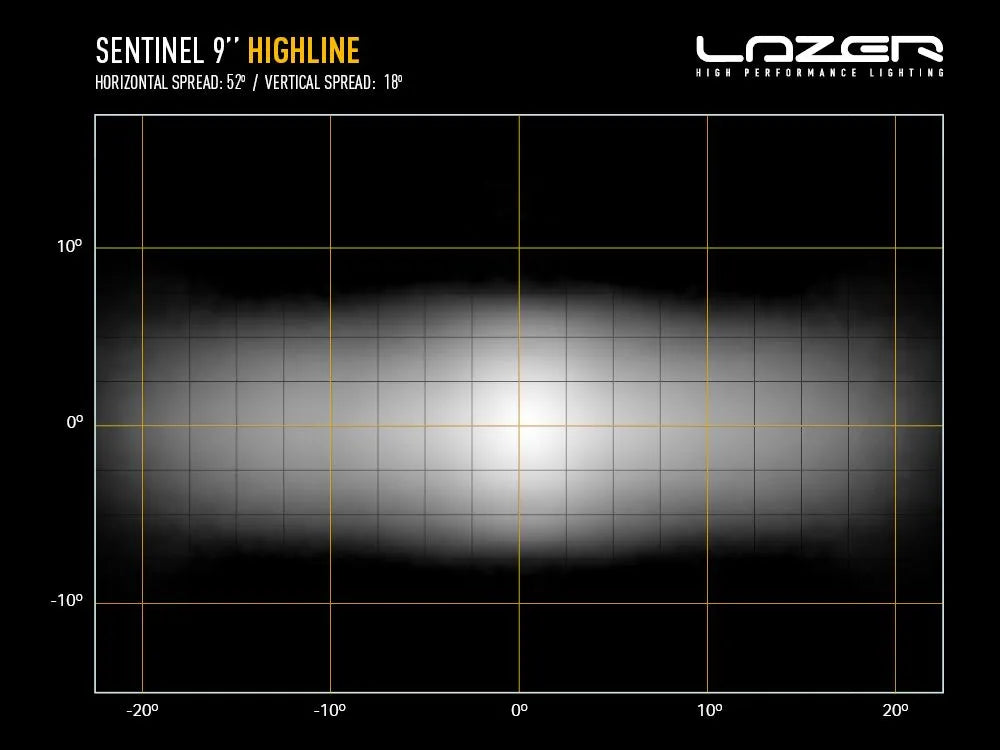

| Horizontal / Vertical Beam Angle | 52° / 18° | 52° / 18° |
| 0.25 lx Line | 1,166 m | 522 m |
| 0.5 lx Line | 825 m | 369 m |
| 1 lx Line | 583 m | 261 m |
| 3 lx Line | 337 m | 151 m |
| Price | £396.00 |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down.
