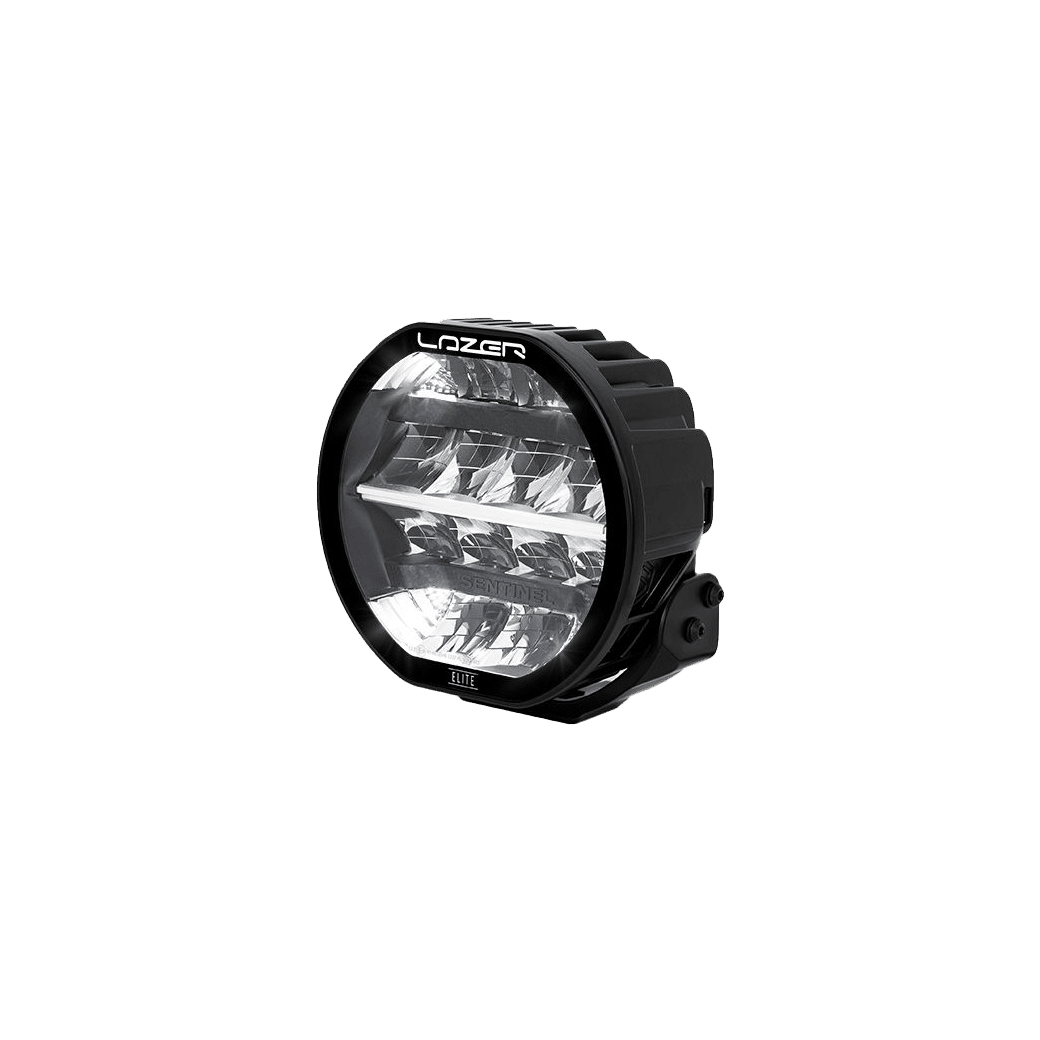

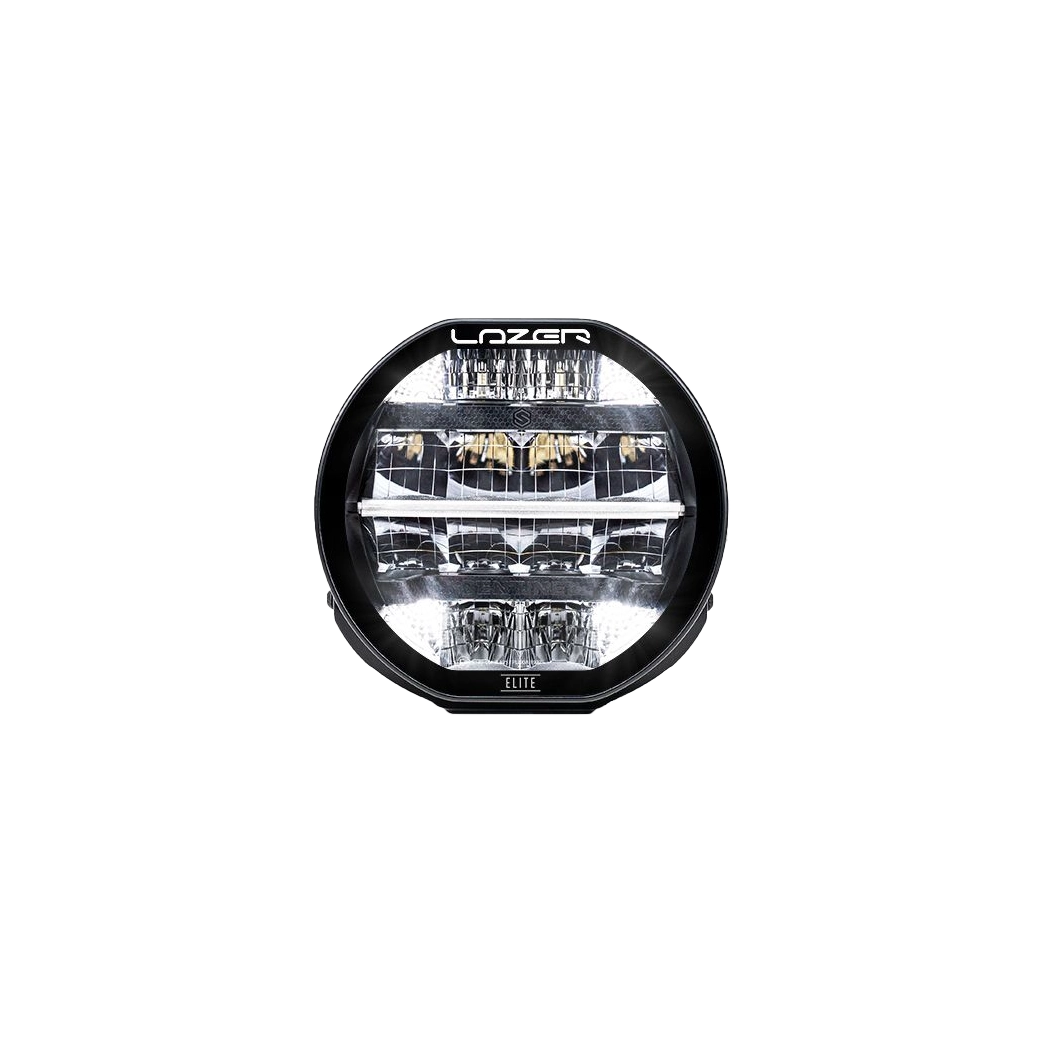

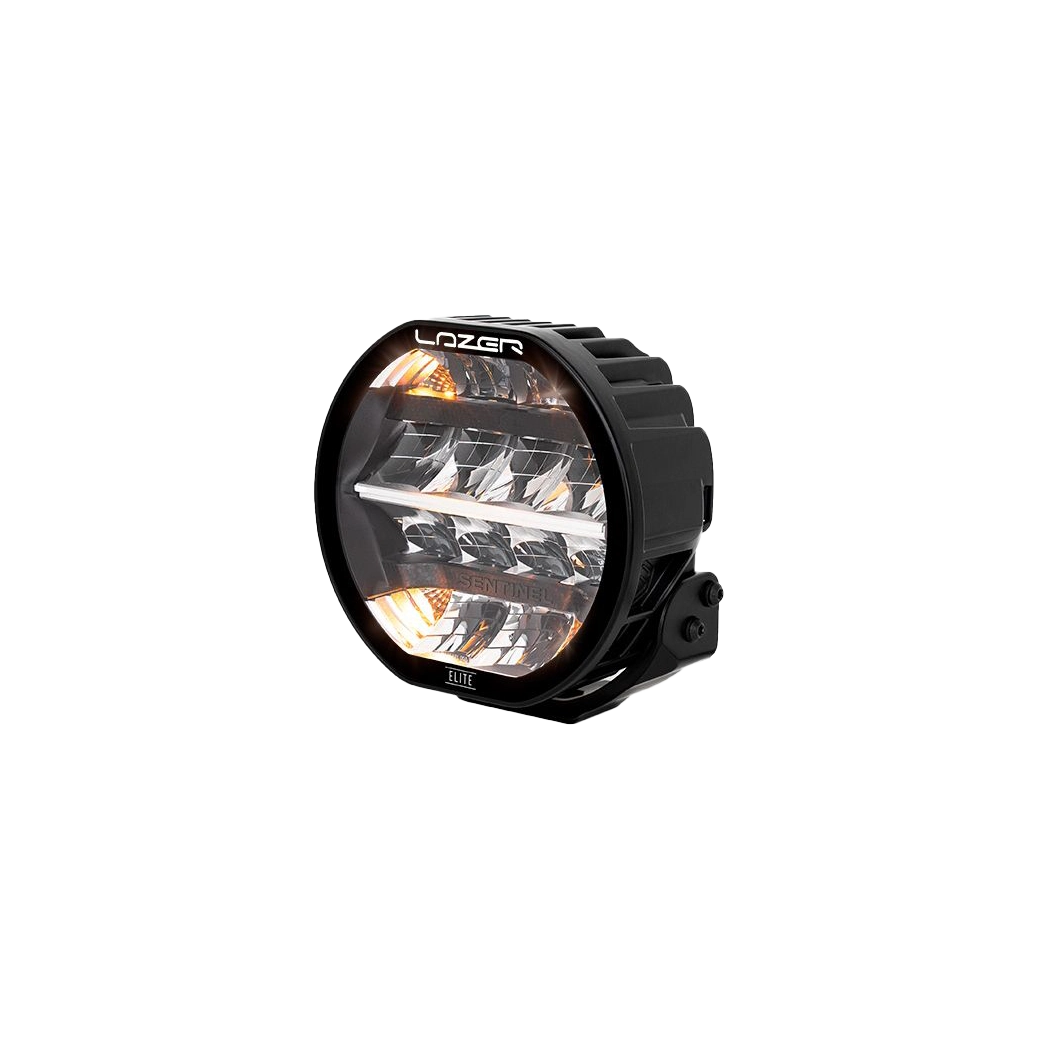

Sentinel 7” Elite Black

Advantages of the Lazer Lamps Sentinel 7” Elite Black

The Lazer Sentinel range of round LED driving lights now comprises 7-inch versions available in Standard and Elite grades. The lights deliver remarkable high-beam lighting performance and product styling that exudes quality.  At the Standard level, a combination of 12 high-power LEDs emit 5,208 raw lumens, while at the Elite level 10,248 raw lumens are served up by 24 high power LEDs, with each product having the light output on the road or track ahead maximised through the adoption of class-leading electronics and optical design, alongside the product’s CAE-optimised lamp housing.

Boasting a true ‘combo’ beam pattern, the central rows of LEDs and optics deliver the long-range illumination, while the upper and lower sections have been meticulously designed and engineered to produce an enviable 65 degrees wide spread of light (Elite grade). The result, a perfectly balanced distribution of light, at a carefully selected 5000 kelvin colour temperature, to make night driving a safer and more enjoyable experience.

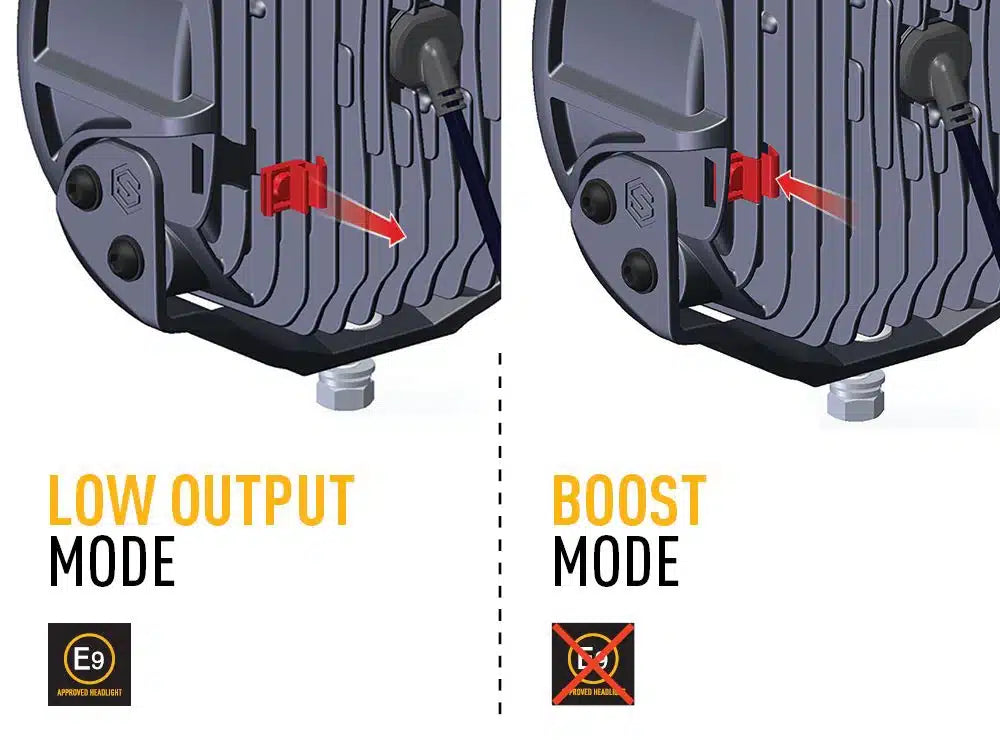

Symbolic of the lighting power on show, operating at 100% the lamps exceed UNECE high beam driving light regulations, so both Lazer 7" Standard and Elite lights adopt Lazer’s dual output E-Boost technology whereby removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the Regulation 149 limit, permitting use of the lights alongside the standard high beam driving lights on your vehicle.

The Elite version has the option to connect white or amber position/side light function, for an even more distinct look, with the white version approved to UNECE Regulation 148. The lamps are supplied with a ‘slim’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion.

Lazer Lamps Sentinel 7” Elite Black installation requirement

The Lamp set includes  everything that’s needed for an effortless installation:

• 1 Sentinel 7” LED Lamp
• 1 ‘Slim’ Mount Kit
• 1 Installation Instructions

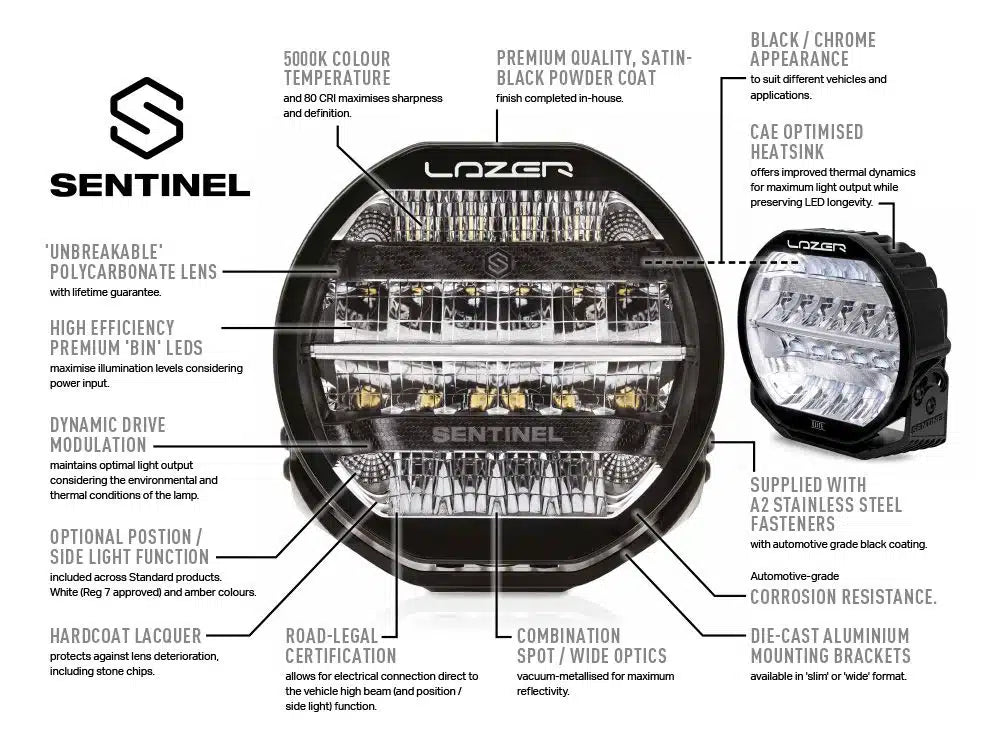

Lazer Lamps Sentinel 7”  Elite Black specifications

• Combination of 24 premium ‘bin’ LEDs
• Stealth black internal appearance
• 5000K LED colour temperature and 80CRI maximises sharpness and definition

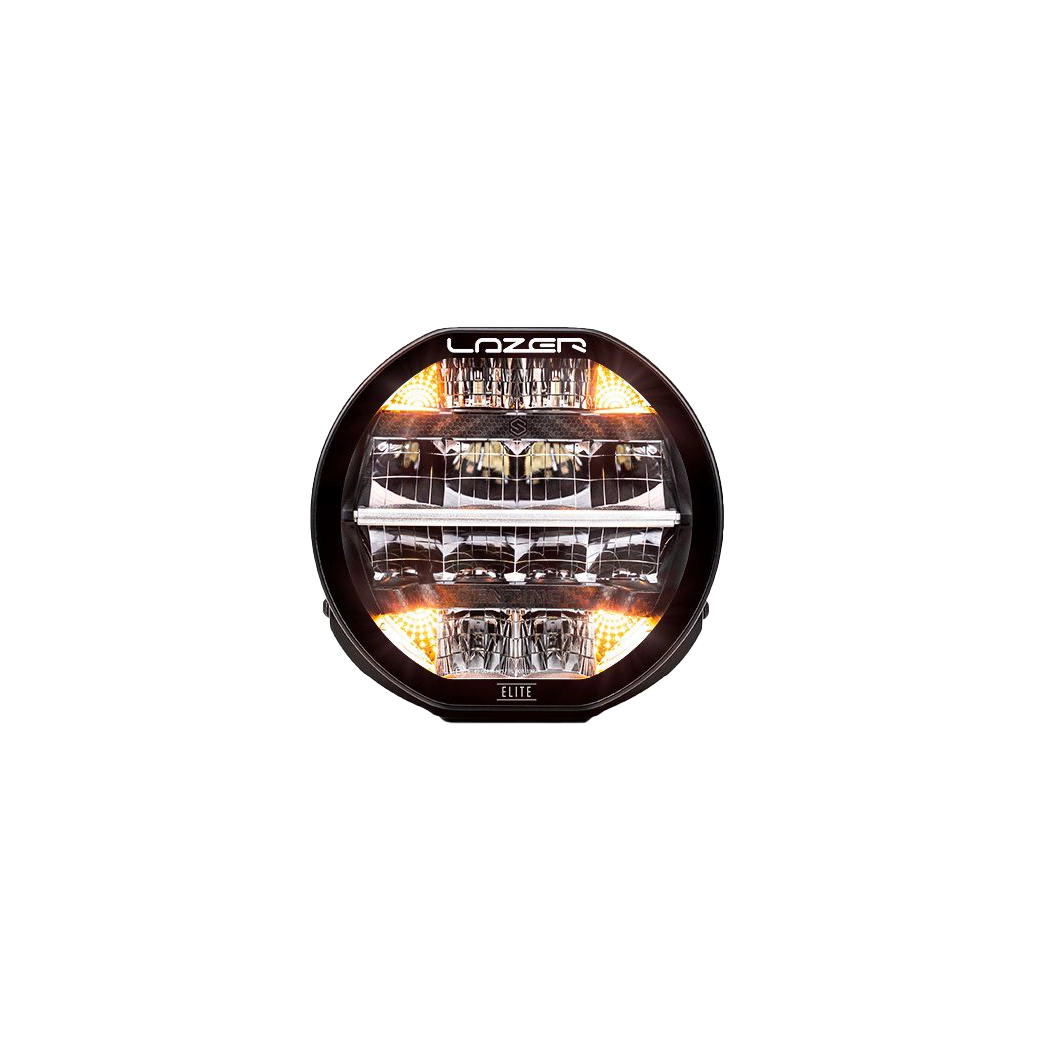

• Integrated white and amber position light function (Elite only)
• Ultra-reflective vacuum-metallised spot and wide optics
• UNECE Reg 149 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 148 position/side light function (white only)
• Contemporary lamp design
• Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• A2 stainless steel fasteners with automotive grade black coating
• UNECE approved Reg 10
• IP68 watertight – 1.5m submersion (30mins)
• 5-year warranty
• Supplied with pre-wired male/female Superseal connectors
• Designed & manufactured in UK

Based on: 1x Sentinel 7'' Elite LED Lamp.

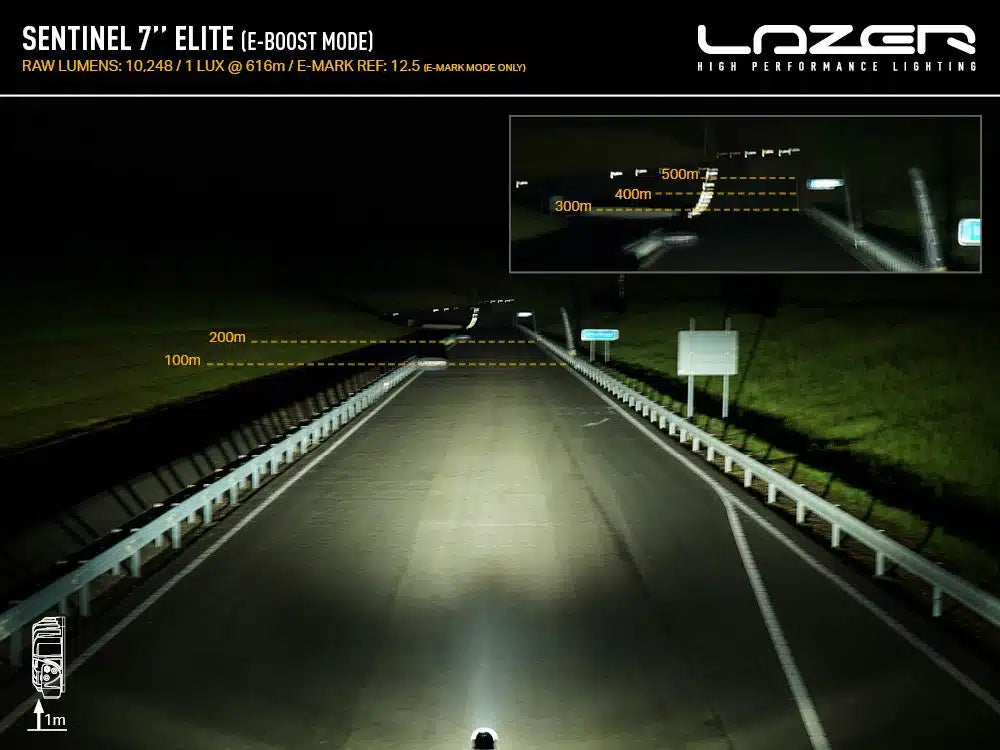

HIGH BEAM FUNCTION

CERTIFICATION

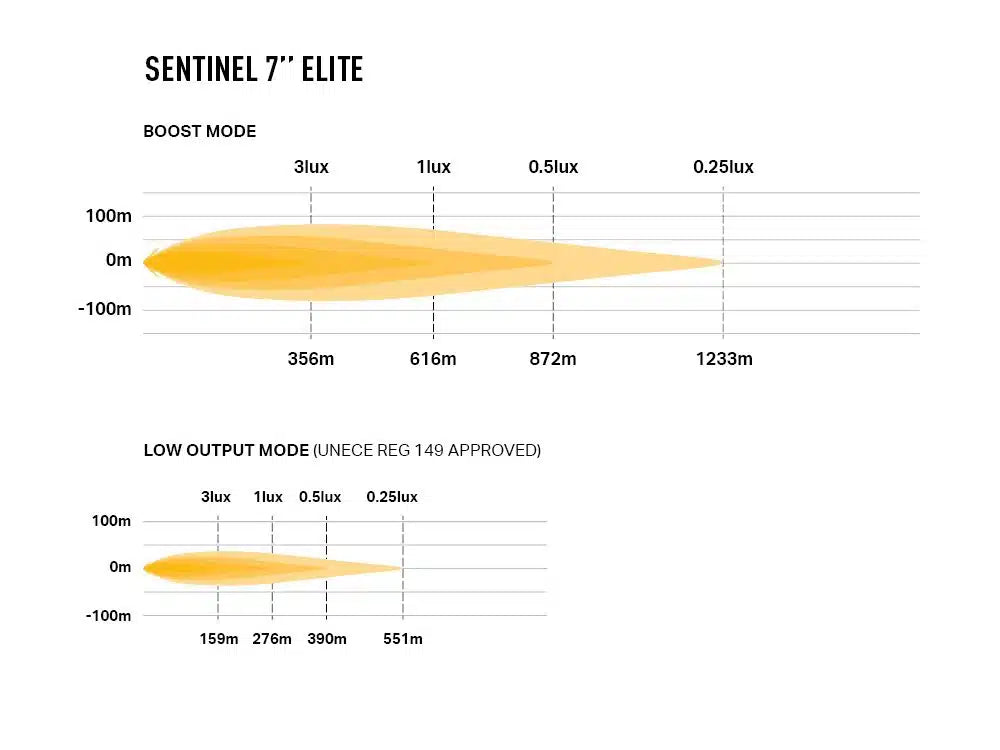

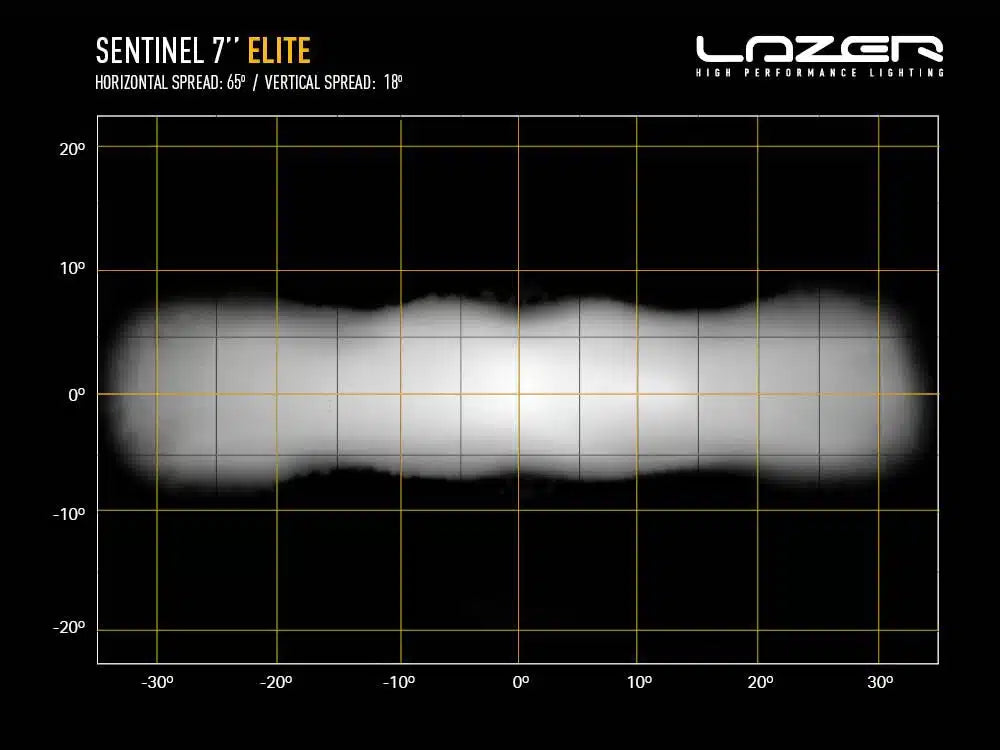

PHOTOMETRIC DATA

Product disclaimer

The regulations for lights are different per country. It is your responsibility to check what your country requires. Dutchvanparts does not accept any liability nor hold responsibility for the regulations you need to abide by or any problems you might encounter with this product.
