Lazer Lamps
RP Spot
RP Spot
The compact powerhouse for adventurers who need serious range. Perfect when you're finding that hidden wild camping spot or navigating unfamiliar terrain after sunset.
Shipping time: Usually ships in 3 - 5 days
Couldn't load pickup availability
Description
+
-
Description
Advantages of the RP Spot for your campervan

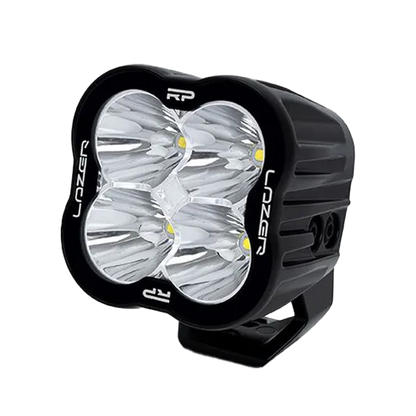

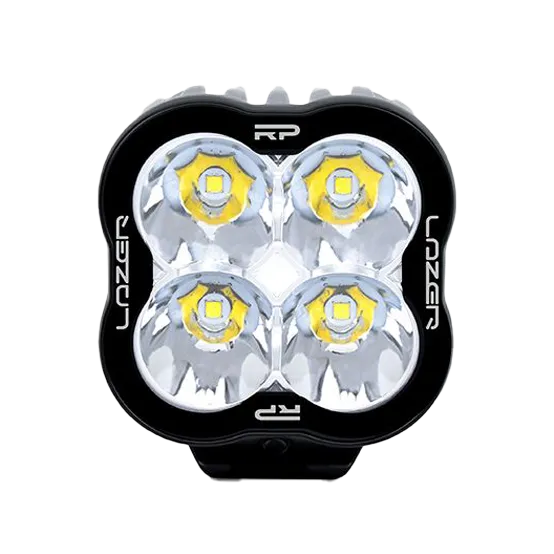

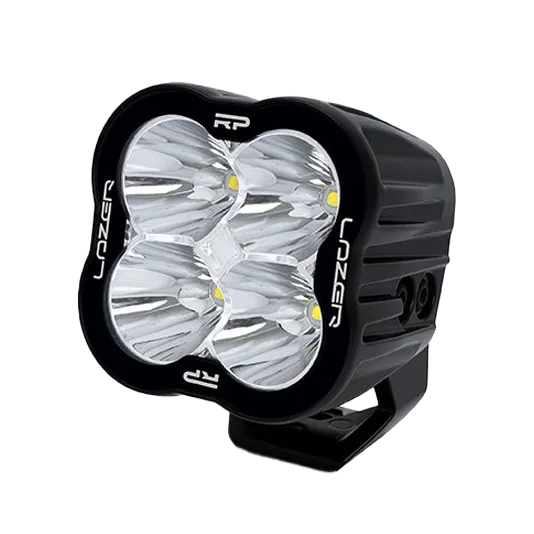

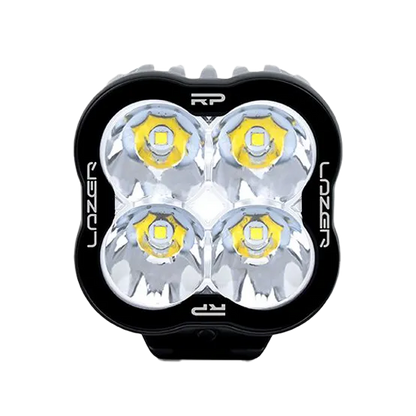

The RP Spot is an 'off-road' LED spotlight built for performance and durability in the most demanding conditions. Boasting 4 premium-bin 20W LEDs, this compact lamp produces 8,940 raw lumens combined with ultra-reflective, vacuum-metallised 'boost' optics specially engineered to deliver exceptional long-range visibility.

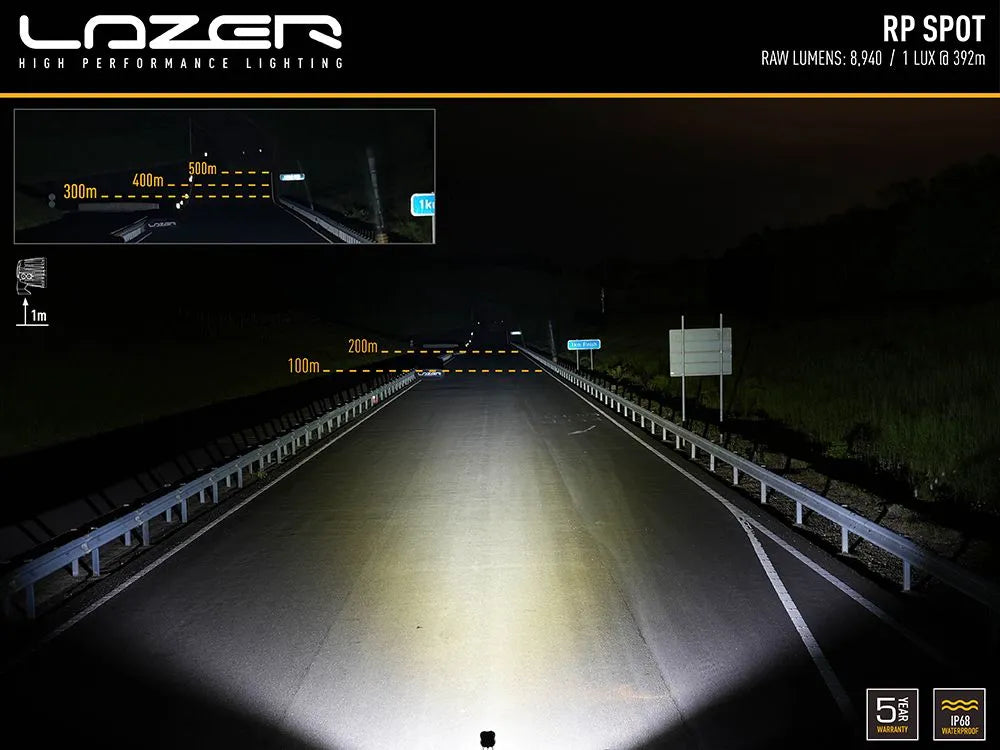

The spot beam pattern delivers light over an impressive distance – achieving 1 lux at 392 metres – whilst still providing a useful 20° horizontal spread. This makes it perfect for spotting distant trail markers, identifying potential hazards well in advance, or finding that perfect wild camping location after sunset. The compact 107mm x 107mm footprint makes it ideal for roof-mounting on campervans where space is at a premium but performance cannot be compromised.

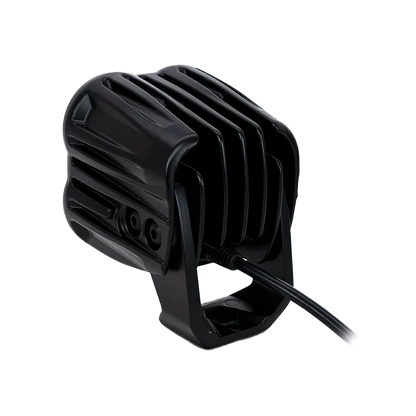

Like all Lazer Lamps products, the RP Spot has been designed, engineered, and manufactured in-house in the UK. The lamp is built to withstand harsh environments with marine-grade aluminium construction, A2 stainless steel fasteners with delta-sealing for maximum corrosion protection, and an 'unbreakable' polycarbonate lens with hardcoat varnish.
The 5000K colour temperature provides natural, sharp light that maximises definition without causing eye fatigue during extended night driving. Electronic thermal management and a CAE-optimised heatsink ensure consistent performance even during prolonged use, whilst IP68/IP69K waterproof rating means the lamp is completely submersible and can handle high-pressure washing.

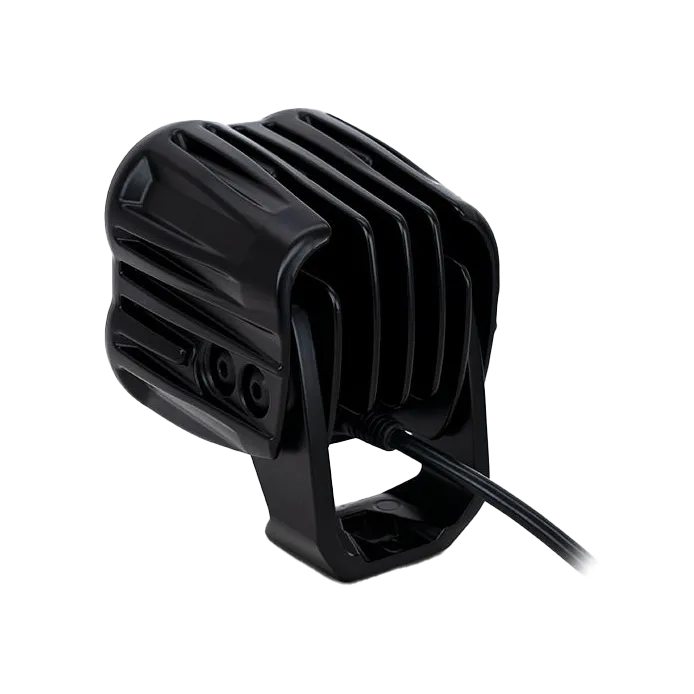

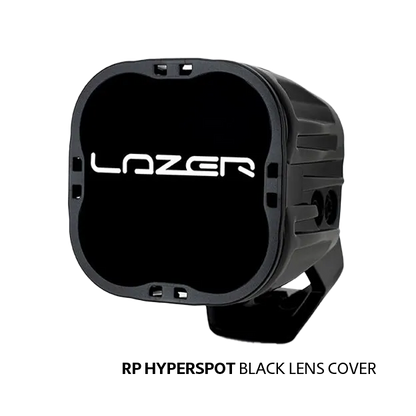

A comprehensive range of clip-on lens covers is available separately, including amber and diffuser options. Each lamp comes supplied with a black 'Lazer' branded lens cover and a die-cast heavy-duty mounting bracket for secure installation.
Comprehensive protection includes over-voltage protection, reverse polarity protection, and includes male/female 2-pin Deutsch connectors for reliable electrical connections. Backed by a 5-year warranty, this is a product built to deliver for many years of adventures.
RP Spot installation requirements
The RP Spot kit includes:
- 1x RP Spot LED Lamp
- 1x Lamp Mounting Bracket
- 1x Black Lens Cover
- 1x Installation Instructions
- Male/female 2-pin Deutsch connectors (pre-wired)
RP Spot specifications

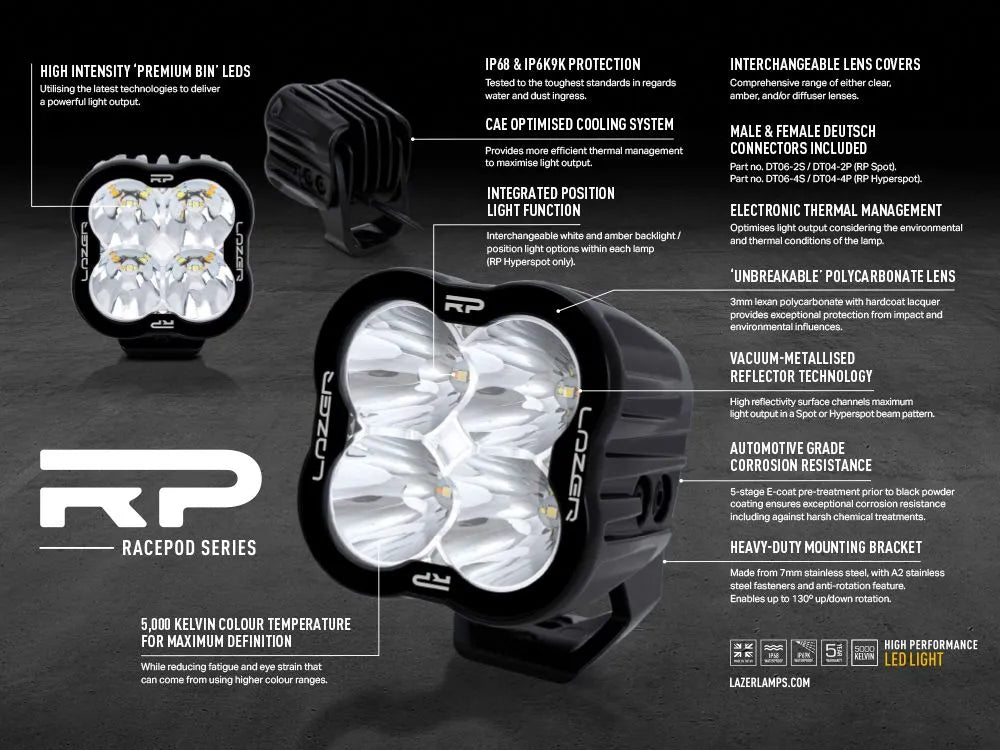

Key Features:
- 4x premium-bin 20W high-intensity LEDs
- Vacuum-metallised 'boost' optics deliver spot beam pattern
- Marine-grade aluminium lamp body
- A2 stainless steel fasteners, delta-sealed for maximum corrosion protection
- CAE-optimised cooling system with electronic thermal management
- 5000K colour temperature
- Comprehensive range of lens covers available separately
- Die-cast heavy-duty mounting bracket
- 'Unbreakable' polycarbonate lens with hardcoat
- Automotive-grade corrosion resistance
- IP68/IP69K approved
- Over-voltage protected
- Reverse polarity protected
- Includes male/female 2-pin Deutsch connectors
- 5-year warranty
- Made in the UK
Technical Specifications (1x RP Spot):
| Specification | Details |
|---|---|
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1.1 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8,940 Lm |
| Total Driver 'FOV' Flux † | 6,079 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 4 |
| Power Consumption | 80 W |
| Current Draw (at 14.4V) | 5.6 A |
| DIMENSIONS | |
| Width | 107 mm |
| Depth | 108 mm |
| Height | 107 mm |

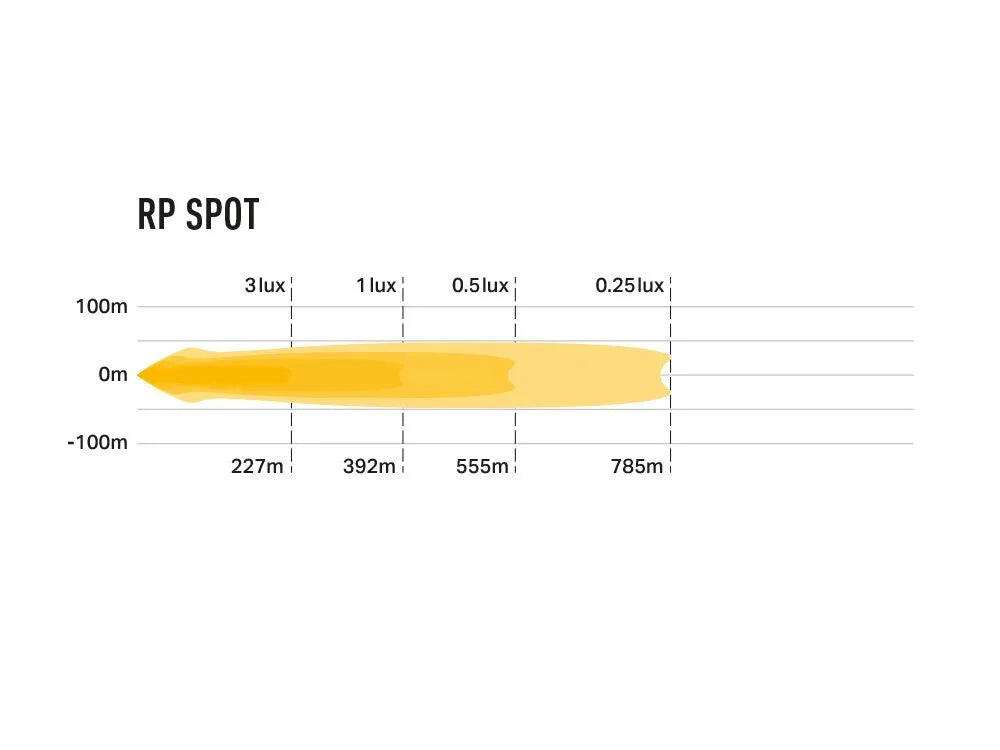

| PHOTOMETRIC DATA | |

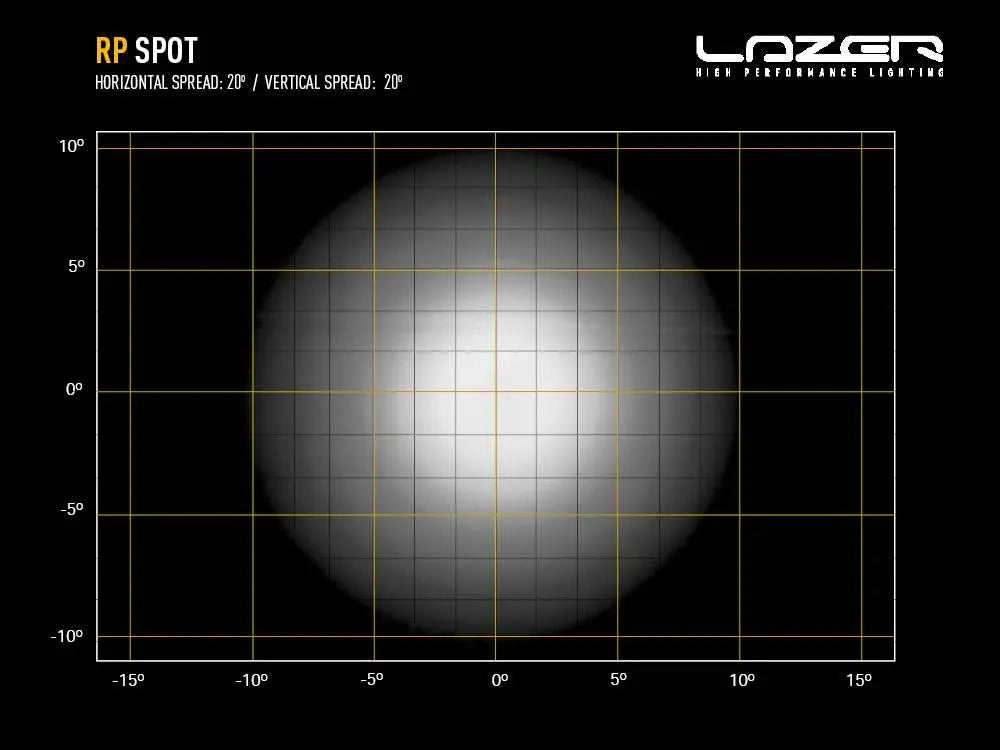

| Horizontal Beam Angle | 20° |
| 0.25 lx Line | 785 m |
| 0.5 lx Line | 555 m |
| 1 lx Line | 392 m |
| 3 lx Line | 227 m |
Compatible with
+
-
Compatible with
- Compatible with all vehicles
