Mercedes Sprinter 3500 Super Single Adapter Kit
Mercedes Sprinter 3500 Super Single Adapter Kit
The Van Compass SUSI Adapter converts your Sprinter 3500's rear hubs to a standard 2500 lug pattern, eliminating mismatched wheels and the narrowed rear track width that comes standard from the factory. Forged from 4140 Chromoly steel and built to handle heavy GVWR builds, it enables true 5-tire rotation with every wheel — including your spare — fully interchangeable.
Shipping time: Usually ships in 2 - 3 weeks
Couldn't load pickup availability
Description
+
-
Description

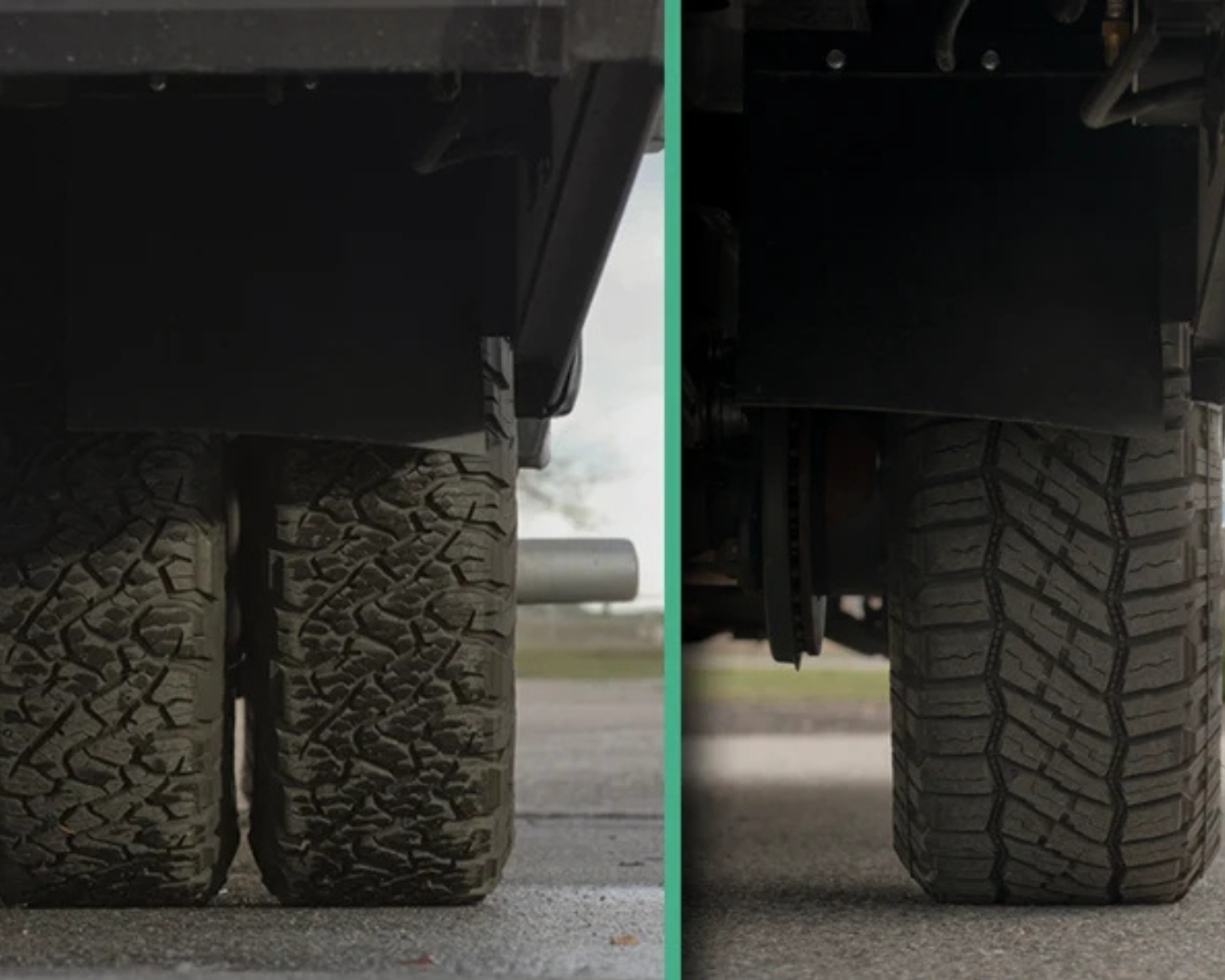

For too long, Sprinter 3500 owners have been forced into a "sub-optimal" reality of mismatched wheels and a narrowed track width that kills stability. The Van Compass SUSI (Super Single) Adapter is the definitive correction to this identity crisis. By converting your rear hubs to a standard 2500 lug pattern, we’ve enabled a true 5-tire rotation where every wheel—including your spare—is finally identical and interchangeable.
This isn't a mere spacer; it’s a 26-pound hunk of forged 4140 Chromoly steel that’s been through-hardened and over-engineered to handle heavy GVWR builds. We evolved the OEM Mercedes adapter philosophy to eliminate the "goofy" offsets of the competition, ensuring your front and rear track widths are in total alignment. Subjected to rigorous FEA testing to remove every possible stress riser, the SUSI delivers the industrial-grade brute strength needed when you're miles from pavement on a 12,000-lb rig.
Compatible with
+
-
Compatible with
MODEL: SPRINTER 3500
YEAR: 2007-PRESENT
DRIVE TYPE: ALL
BOLT PATTERN: 6x130 mm , M14x1.5 lug (same as Sprinter 2500)
NOTE: Suggested tire size, depending on lift
LT295/70R17 Load Index 128
LT285/75R17 Load Index 128
Additional info
+
-
Additional info
Included Components

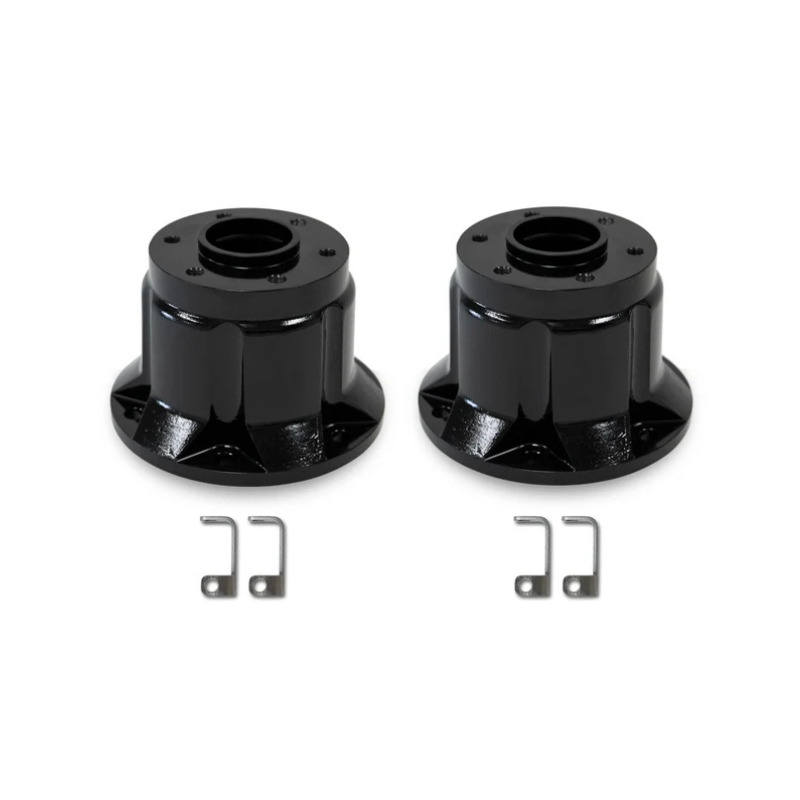

- Forged 4140 Steel SuSi Rear Hub Conversion

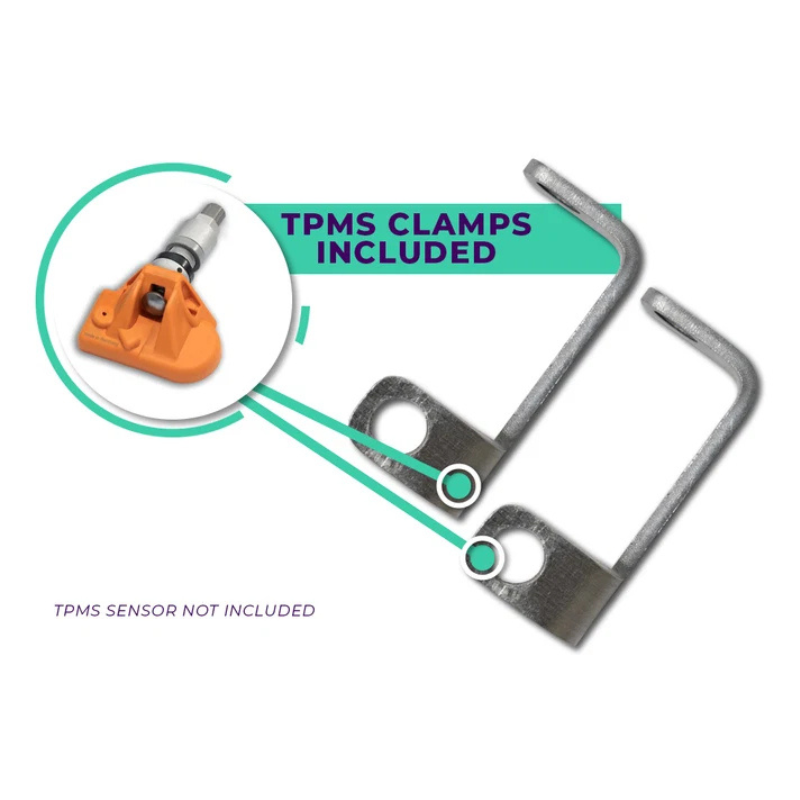

- TPMS Sensor mounting bracket
