Hot Water Shower Set 'Dark Edition'

Queensize Camper Hot Water Shower 'Dark Edition' - Available exclusively at Project Yonder!

The popular Queensize Camper shower set is now available in 'Dark Edition'! Made from high quality stainless steel, this shower set is a sleek edition to any camper!

Separate mixers and wall outlet bends

For maximum flexibility during installation, the mixer tap and wall outlet elbow are designed separately, allowing them to be installed in different positions.

Shower head with volume control

The Queen-Size Camper Shower helps you save water. The shower head features a volume control that allows you to finely adjust the water flow, both on the mixer and at the end of the hose. With a little practice, you can even do this one-handed.

Ideal for an outdoor shower

The shower hose can be easily disconnected from the wall outlet using the quick-release coupling and stored in the included felt bag to prevent damage to the shower wall. This keeps the hose and shower head safely stored. The quick-release coupling on the wall outlet closes automatically after removal (integrated water stop).

Two selectable jet types

By turning the aerator on the shower head you can choose between two different spray types.

Installing the camper shower

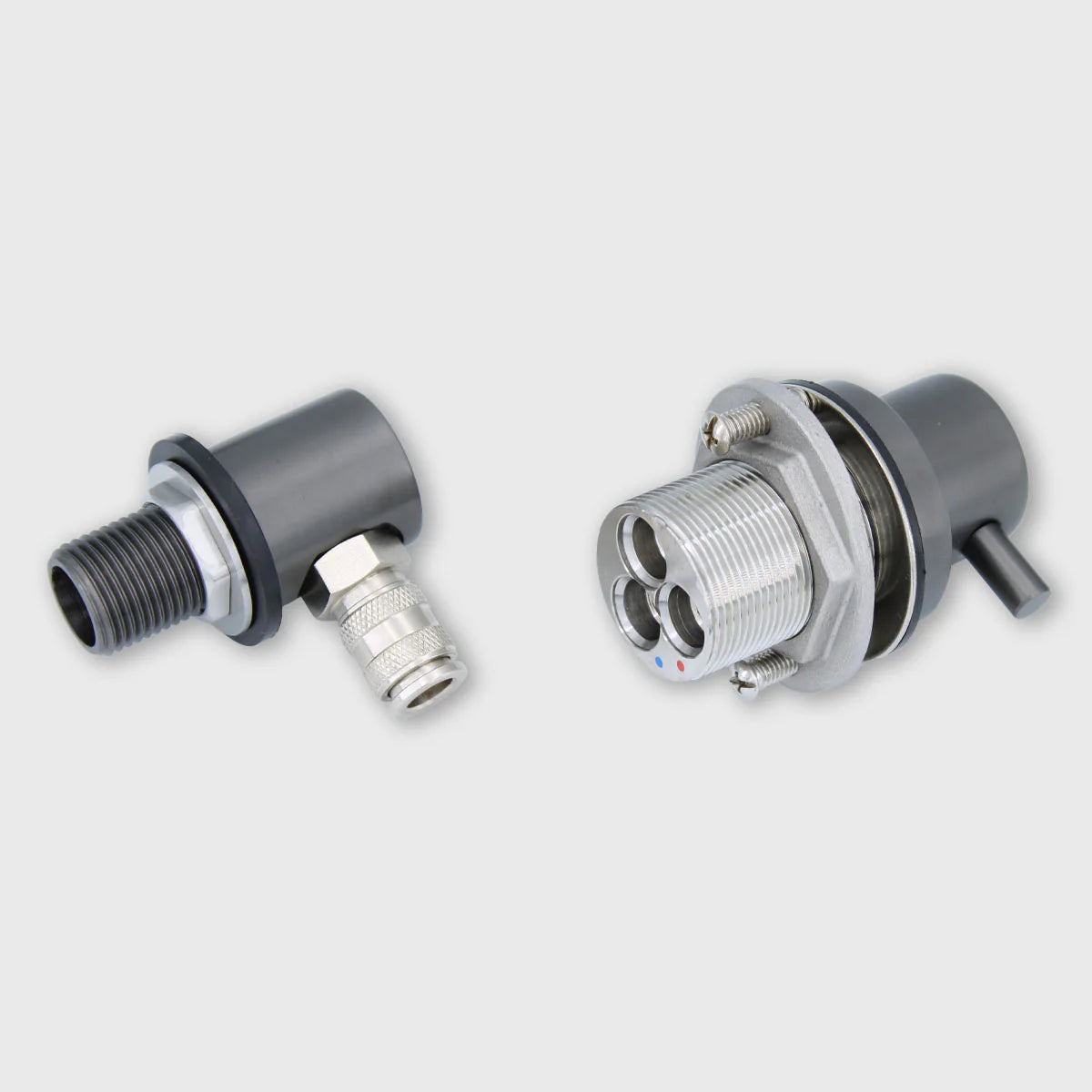

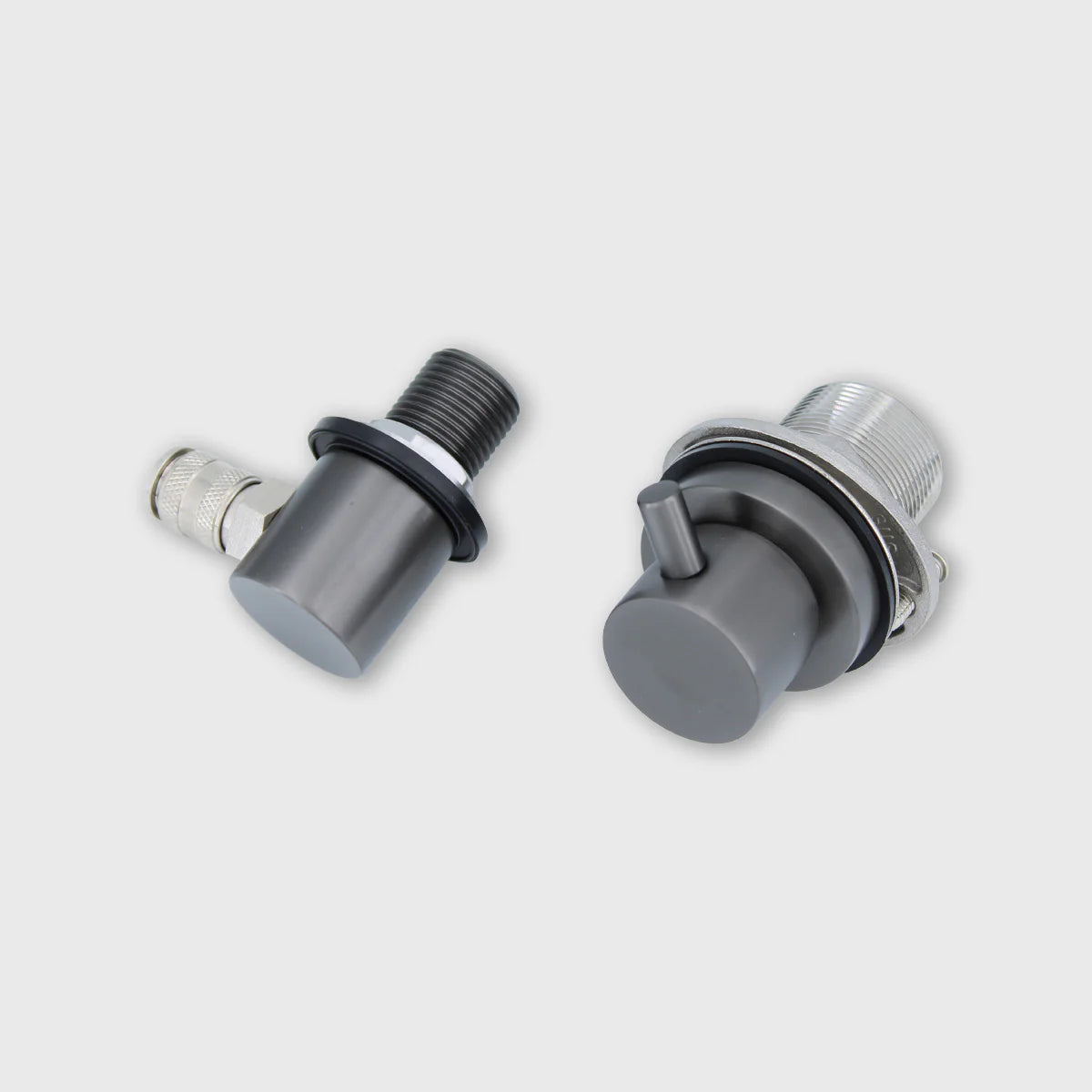

mixer

The mixer is mounted using a hole circle of at least 34 mm and secured from behind with a nut, washer, and flat gasket to prevent twisting. There's also an O-ring on the inside of the rosette that seals against the shower wall.

90° wall outlet

The 90° wall outlet is installed using a hole circle of at least 21 mm and is also secured from the rear with a nut, washer, flat gasket, and an O-ring on the inside. A flexible hose is also screwed into the back of the wall outlet, allowing maximum flexibility in the installation position.

Important note on the coating: This is a stainless steel product treated with a high-quality PVD coating, giving it its dark, matte colour. We are convinced that we are offering a very good product.

BUT: A coating on stainless steel cannot withstand all mechanical stress. We have therefore installed a second O-ring on the spout to protect the spout should it ever come into contact with the sink floor. Unlike the sink, the surface of the faucet is smooth and not as scratch-resistant as the textured sink. You should be aware of this when purchasing this coated stainless steel product.
Therefore, our tip: Clean the faucet with a soft cloth or sponge, not with the hard side of a household sponge or even with steel wool. Material: AISI 304 stainless steel.

Important note regarding frost: To prevent frost damage, the spout should be completely drained during the cold season. This is best done by unscrewing the aerator on the spout, opening the cartridge, and placing it in the center position. The check valve must blow the water out in the direction of the pump; it will not flow backward.

Wall thicknesses:

• Mixers up to a maximum of 30 mm
• 90° wall outlet up to a maximum of 20 mm

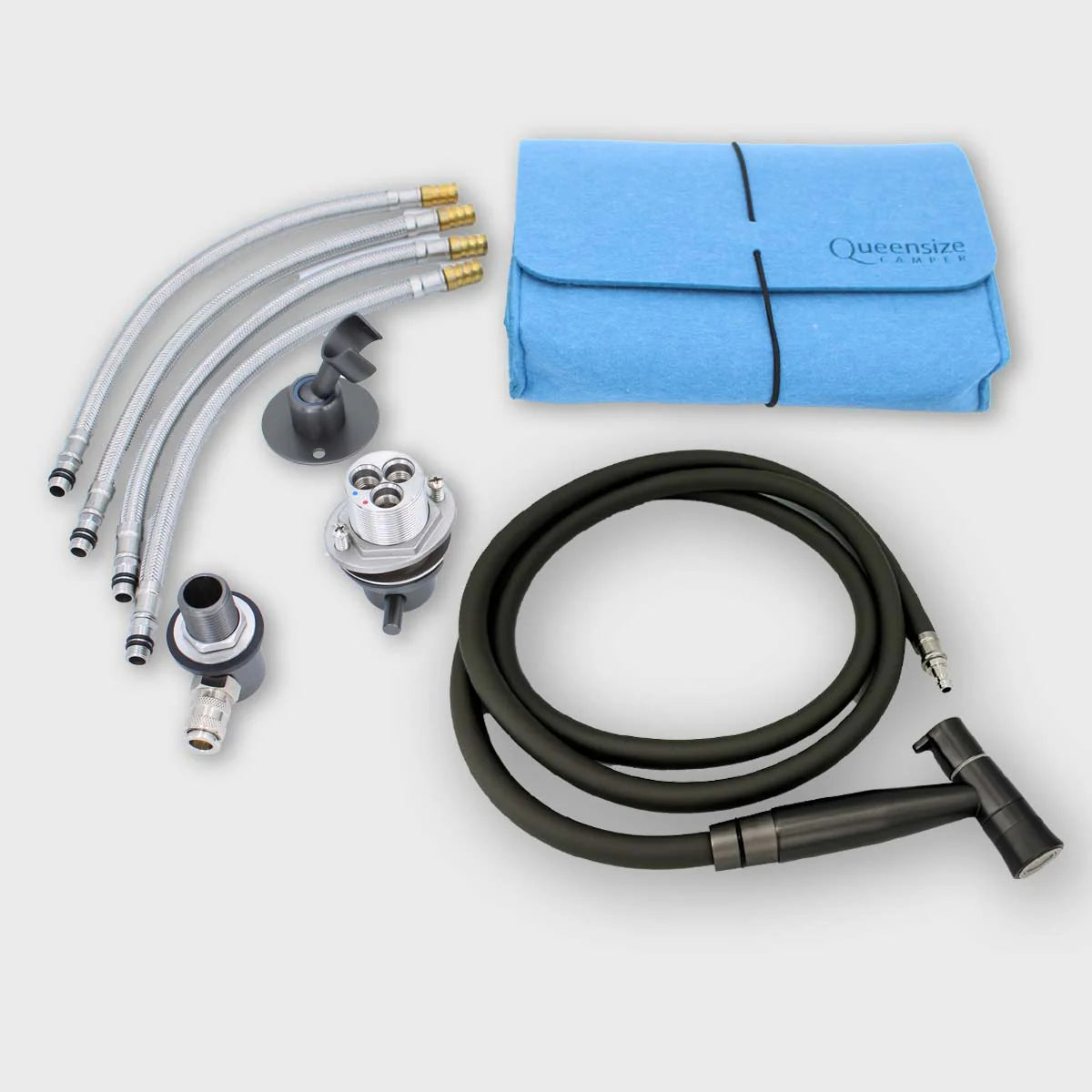

Scope of delivery:

• shower head
• Shower holder
• 2 m silicone shower hose with quick coupling
• Wall outlet with quick coupling
• mixer
• 4x connection hose
• felt bag

Note: Please use the shower set with a pump with at least 1.5 bar. The maximum system pressure for all Queensize Camper products is 4 bar.

Here you can find the data sheet  for the Queensize Camper Shower Sets.
