Dutchvanparts

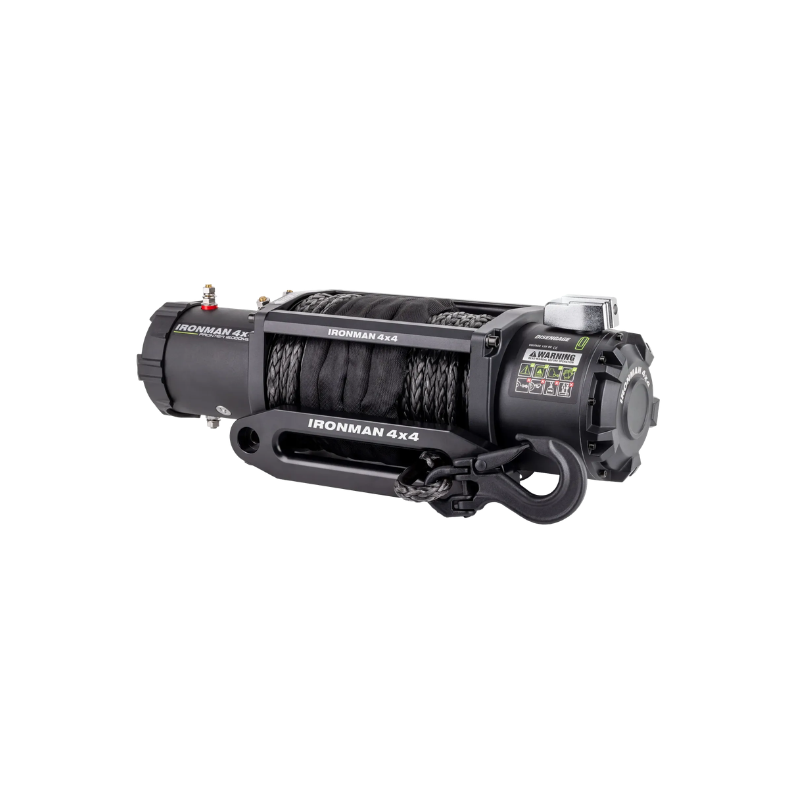

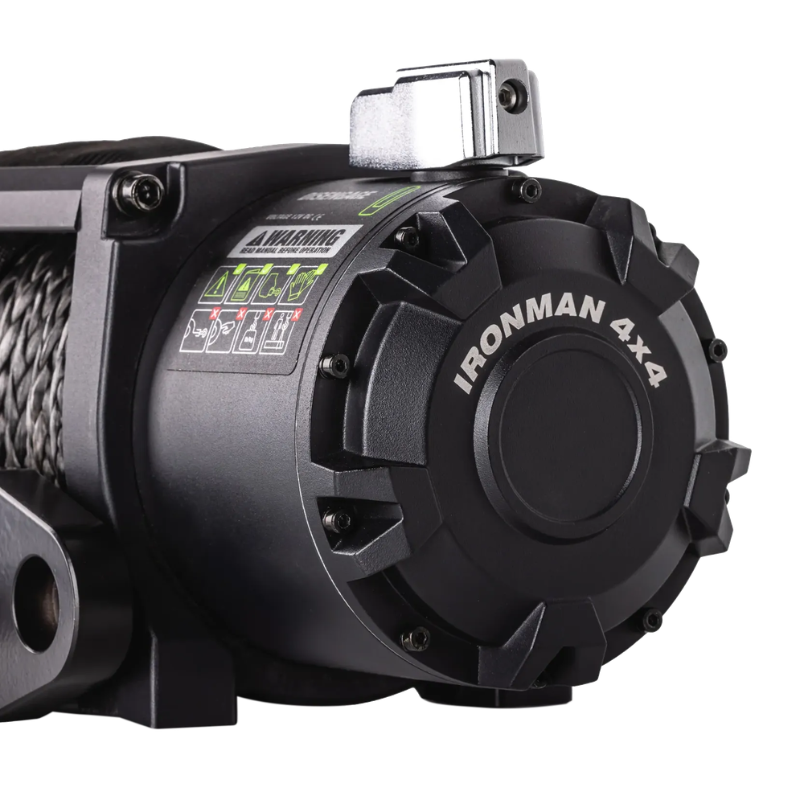

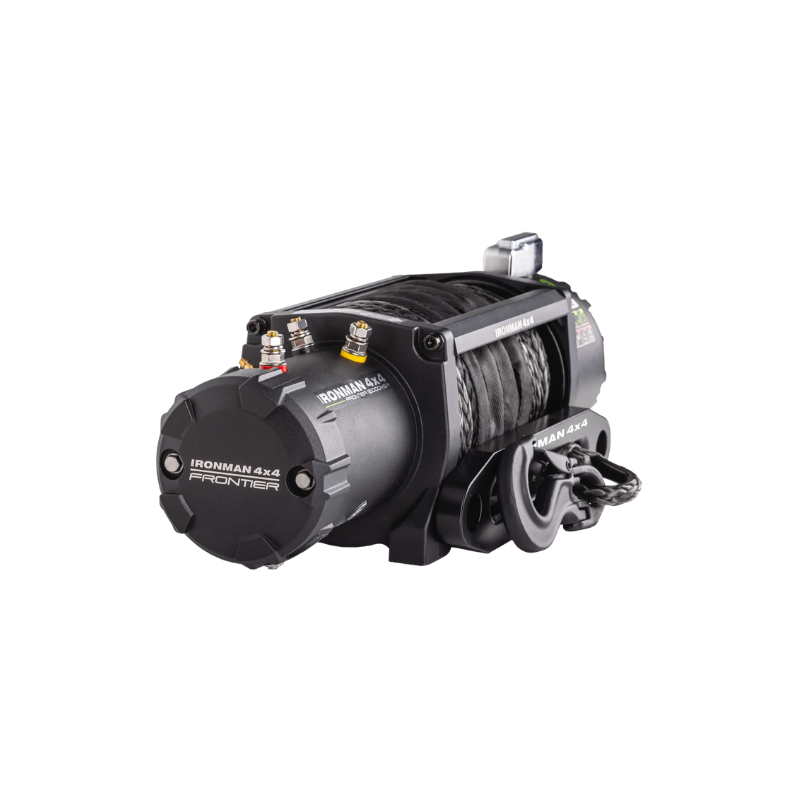

Frontier 5440kg Synthetic Winch
Frontier 5440kg Synthetic Winch
High-capacity synthetic winch designed for safe off-road recovery. Lightweight, strong, and ideal for demanding campervan travel conditions.
Shipping time: In stock. Ships in 1 - 2 weeks.
Couldn't load pickup availability
Description
+
-
Description
Advantages of the Frontier 5440kg Synthetic Winch for your campervan
The Frontier 5440kg Synthetic Winch is a powerful and reliable recovery solution designed for vehicles weighing between 2.700 kg and 3.650 kg. Built on more than 10 years of development from the proven Monster winch range, it delivers dependable performance for both on-road and off-road adventures.

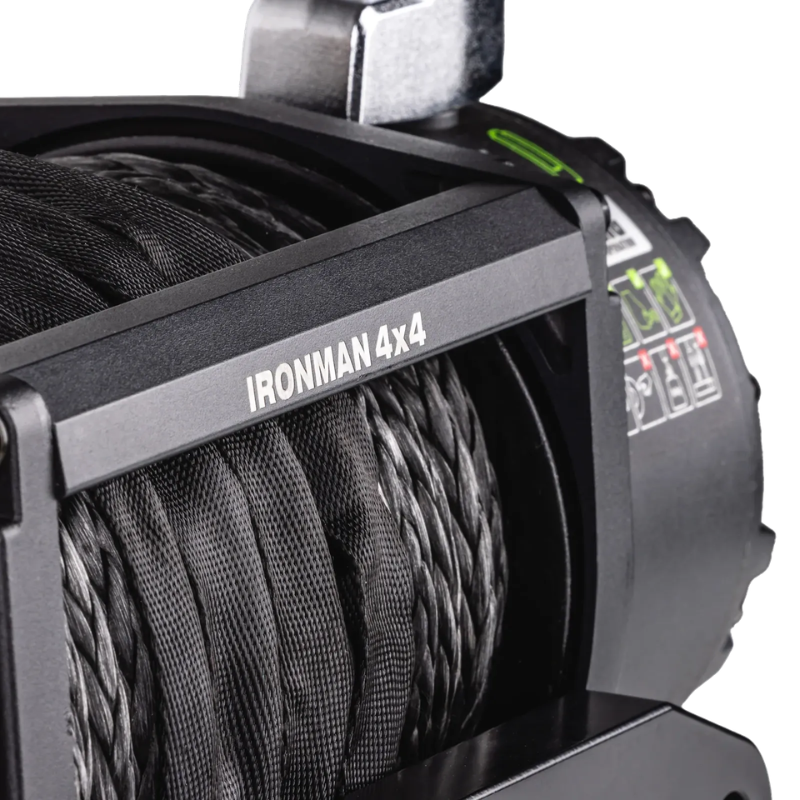

Equipped with a lightweight yet durable synthetic rope, the winch offers excellent strength while reducing overall weight. Its powerful 6,0 HP motor and robust 218:1 gear train provide strong pulling performance when recovery is required.
The IP68-rated construction allows the winch to be submerged up to 1 metre for 30 minutes, making it suitable for demanding weather conditions and challenging terrain. An integrated motor breather further enhances durability by helping to manage internal pressure and moisture.
For added convenience, the winch includes a wireless remote control, while also allowing a wired connection when preferred. The proven mechanical design and 5-year mechanical warranty provide peace of mind wherever your campervan takes you.
Frontier 5440kg Synthetic Winch installation requirements
There are no specific installation requirements for the Frontier 5440kg Synthetic Winch.
The winch is designed for vehicle-mounted installation and features a standard mounting bolt pattern of 25,4 cm x 11,43 cm. Mounting hardware should be selected according to the installation setup and vehicle requirements.
Frontier 5440kg Synthetic Winch specifications
- Electric winch
- Recommended for vehicle recovery
- Maximum pulling capacity: 12.000 lb
- Voltage: 12 V
- Motor power: 6,0 HP
- Gear ratio: 218:1
- Auto cam lock brake system
- Clutch operation: clockwise disengage / anticlockwise engage
- Synthetic rope
- Rope diameter: 8,3 mm
- Rope length: 25 m
- IP68 waterproof rating
- Submersible up to 1 metre for 30 minutes
- Integrated motor breather
- Wireless remote control with optional wired connection
- Mounting pattern: 25,4 cm x 11,43 cm
- Dimensions: 53,5 cm x 18,2 cm x 16 cm
- Weight: 28 kg
- Current draw: 74 A
- Maximum current draw: 350 A
- Line speed at no load: 28,25 ft/min
- Line speed at full load: 5,25 ft/min
- Decade-proven mechanical design
- 5-year mechanical warranty
Product Disclaimer
The regulations for winches are different per country. It is your responsibility to check what your country requires. Dutchvanparts does not accept any liability nor hold responsibility for the regulations you need to abide by or any problems you might encounter with this product.
Compatible with
+
-
Compatible with
- Volkswagen - Crafter 1st generation (2006 - 2017)
- Volkswagen - Crafter 2nd generation (2017+)
- Fiat - Fiat Ducato 3th Gen (2006-2014)
- Hymer - Free S Campus
- Dethleffs - Globetrail Performance
- Volkswagen - Grand California 600/680
- Hymer - Grand Canyon S
- Hymer - Grand Canyon S Crossover
- Westfalia - James Cook
- Yucon - K-Peak
- Hymer - ML-T Crossover
- Mercedes Benz - Sprinter W906 (2006 - 2018)
- Mercedes Benz - Sprinter W907 (2018+)
- Mercedes Benz - Sprinter W910 (2018+)
- Westfalia - Sven Hedin
- MAN - TGE (2017+)
- Yucon - V-City
- Hymer - Venture S
If your vehicle is not listed, you're unsure whether this product is compatible with your vehicle or would like further advice, please get in touch - hello@projectyonder.co.uk
Additional info
+
-
Additional info
- Material: Steel
- Finish: 1-layer powder coating
