FLIC2 Smart Button

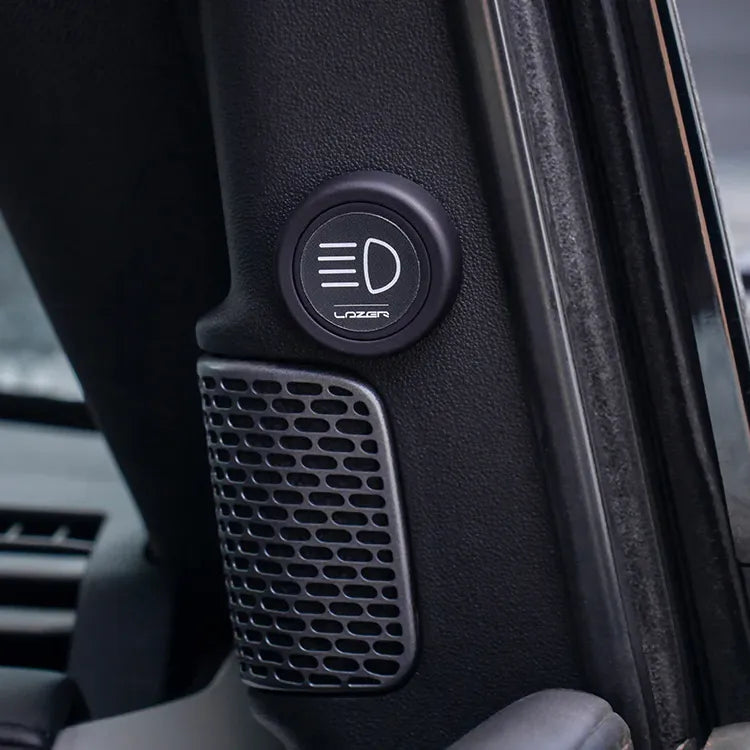

For maximum control and flexibility with your auxiliary lighting installations, the FLIC2 Smart Button enables wireless control of your lights without the need for additional wiring within your vehicle. Compatible exclusively with the CANNY Interface, this Bluetooth push button can be installed anywhere within the vehicle, or even kept on your person, operating within a 10-metre range of the paired CANNY Interface.

The FLIC2 allows lighting functions to be controlled at the touch of a button. Via the CANNY.LZR app, it can be configured to control up to 4 outputs, either as a stand-alone switch or in combination with other FLIC2 Smart Buttons. Crucially, the Smart Button can also be programmed to operate lights regardless of the vehicle ignition being on – or more specifically, regardless of power being received by the vehicle's CAN bus system.

Examples of practical functions include:

• De/activation of high beam lights (regardless of vehicle high beams being on/off) – especially relevant in countries which restrict the number of auxiliary lights permissible to be connected to vehicle high beams
• De/activation or switching of position light function on your Lazer product (white/amber colour changes)
• De/activation of work or reverse lights – configurable via CANNY App to determine whether the output stays on or switches off when vehicle ignition is off
• Mode select on Beacon function of your lamps

Perfect for those cold Highland mornings when you want to adjust exterior lighting without leaving the warmth of your bed, or for quickly overriding automatic functions when conditions change (fog, dust, or when passing other vehicles).

The FLIC2 isn't limited to lighting control. Via the CANNY Interface, the Smart Button can be configured to operate any of CANNY's outputs, whether controlling auxiliary lighting or other 12V accessories fitted to your vehicle.

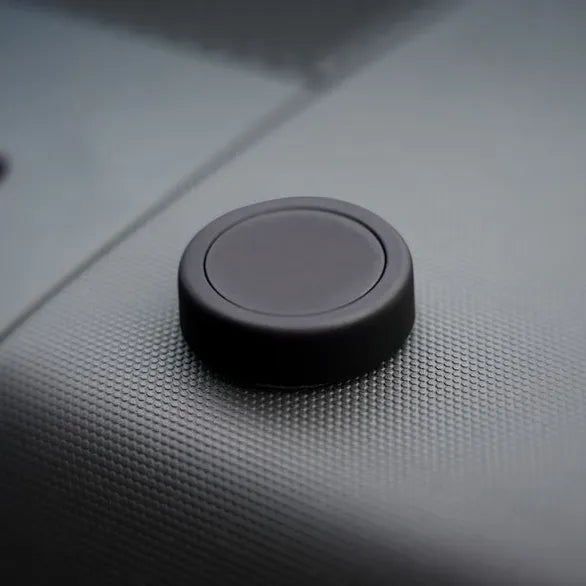

Supplied with 18 customisable stickers relevant to various switch functions, the button features adhesive backing that sticks to nearly any surface for flexible mounting options. The replaceable CR-2032 battery provides over 2 years of typical operation.

Note: When using the FLIC2 Smart Button to control the yellow dip mode of an Elite+ product, an additional relay wired to the switching channel of the lamp is required to reverse the polarity of the signal. The FLIC2 Smart Button is only compatible with a corresponding CANNY Interface.

FLIC2 Smart Button installation requirements

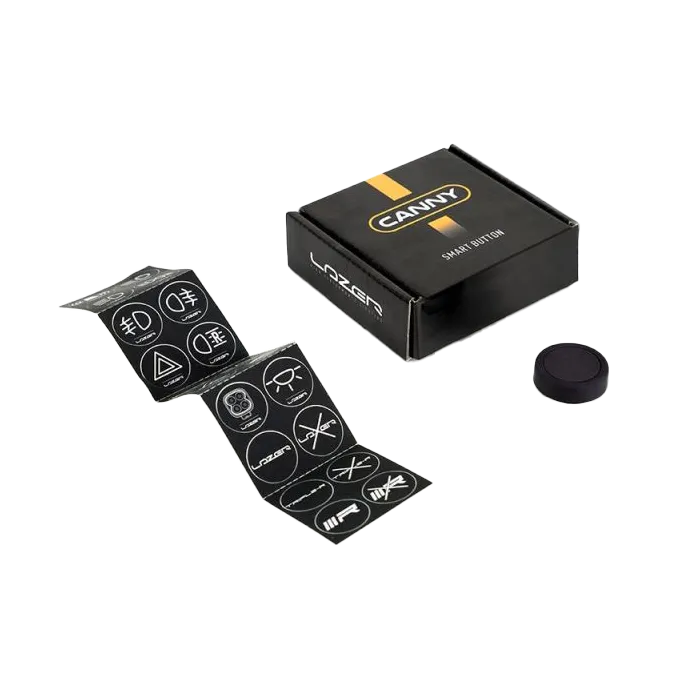

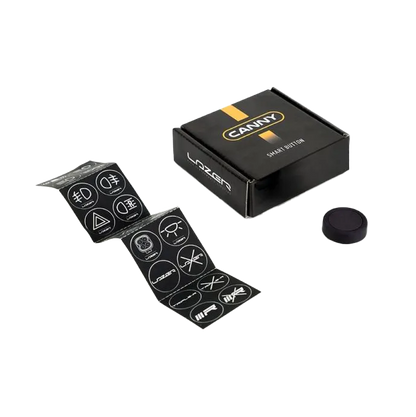

The FLIC2 Smart Button kit includes:

• 1x FLIC2 Smart Button
• 18x customisable function stickers
• Adhesive backing (pre-applied)
• CR-2032 battery (installed)

Requirements:

• CANNY Interface (sold separately - essential for operation)
• Smartphone or tablet with Bluetooth 4.0+
• CANNY.LZR app (free download - iOS/Android)

FLIC2 Smart Button specifications

Key Features:

• Wireless Bluetooth control for CANNY Interface outputs
• 10-metre operating range from CANNY Interface
• Programmable via CANNY.LZR app
• Controls up to 4 different outputs
• Configurable as standalone switch or in combination with multiple FLIC2 buttons
• Can operate independently of vehicle ignition status
• Compatible with lighting and 12V accessories
• 18x customisable function stickers included
• Adhesive backing for flexible mounting
• Replaceable CR-2032 battery (2+ year life)
• Requires Bluetooth 4.0+
• Compatible only with CANNY Interface

Technical Specifications:
