Cargo Frame (Bike Carrier)
Cargo Frame (Bike Carrier)
This versatile frame transforms your Cargo Ladder into a bike, ski, or cargo carrier! Enjoy easy bolt on fitting for a convenient and secure way to carry your adventure gear.
Shipping time: In stock. Ships in 3 - 5 days
Couldn't load pickup availability
Description
+
-
Description
This versatile frame functions as a bike carrier, ski carrier, or box carrier, so it makes the most of your Cargo Ladder. You can easily adjust its functionality depending on your adventure plans!

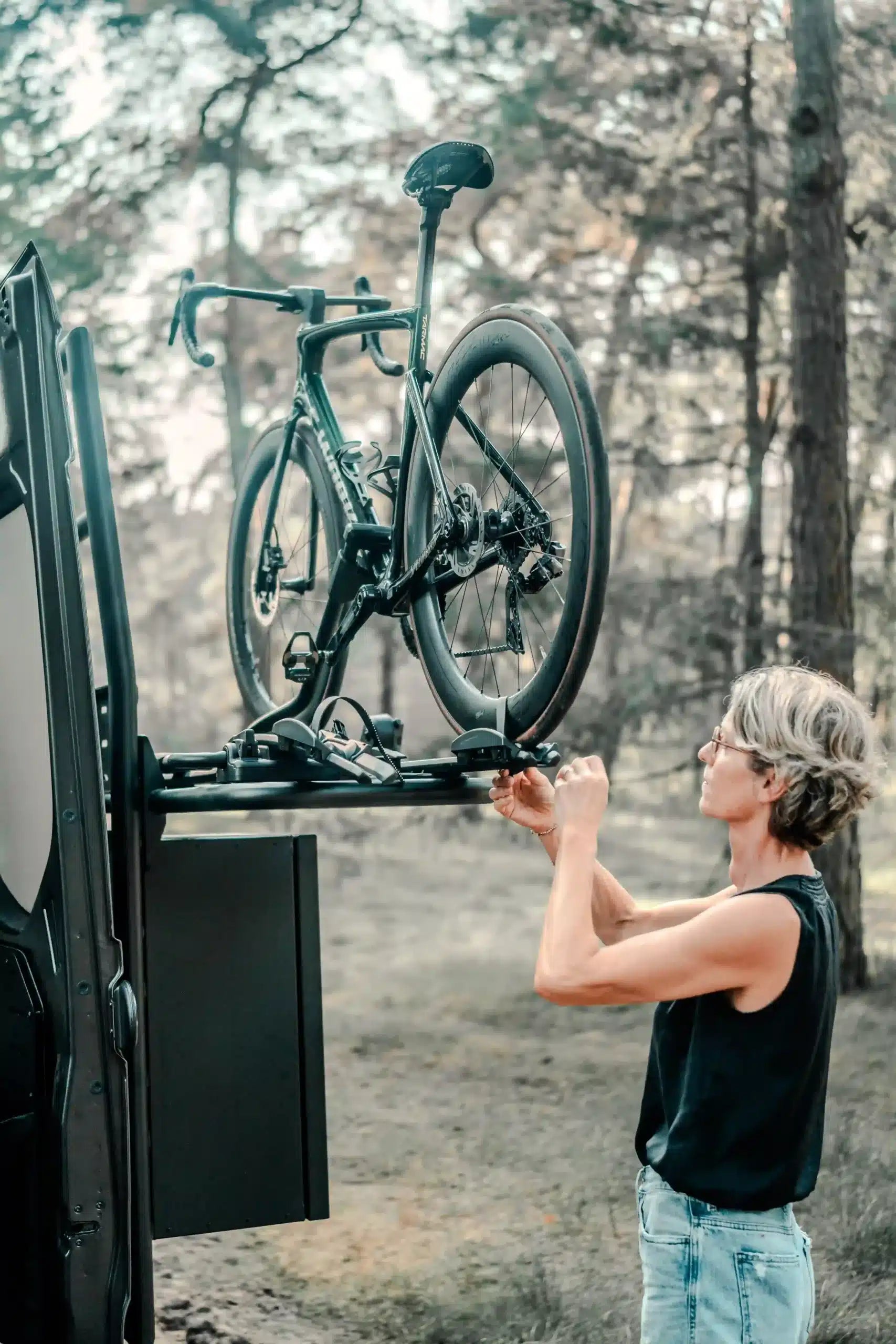

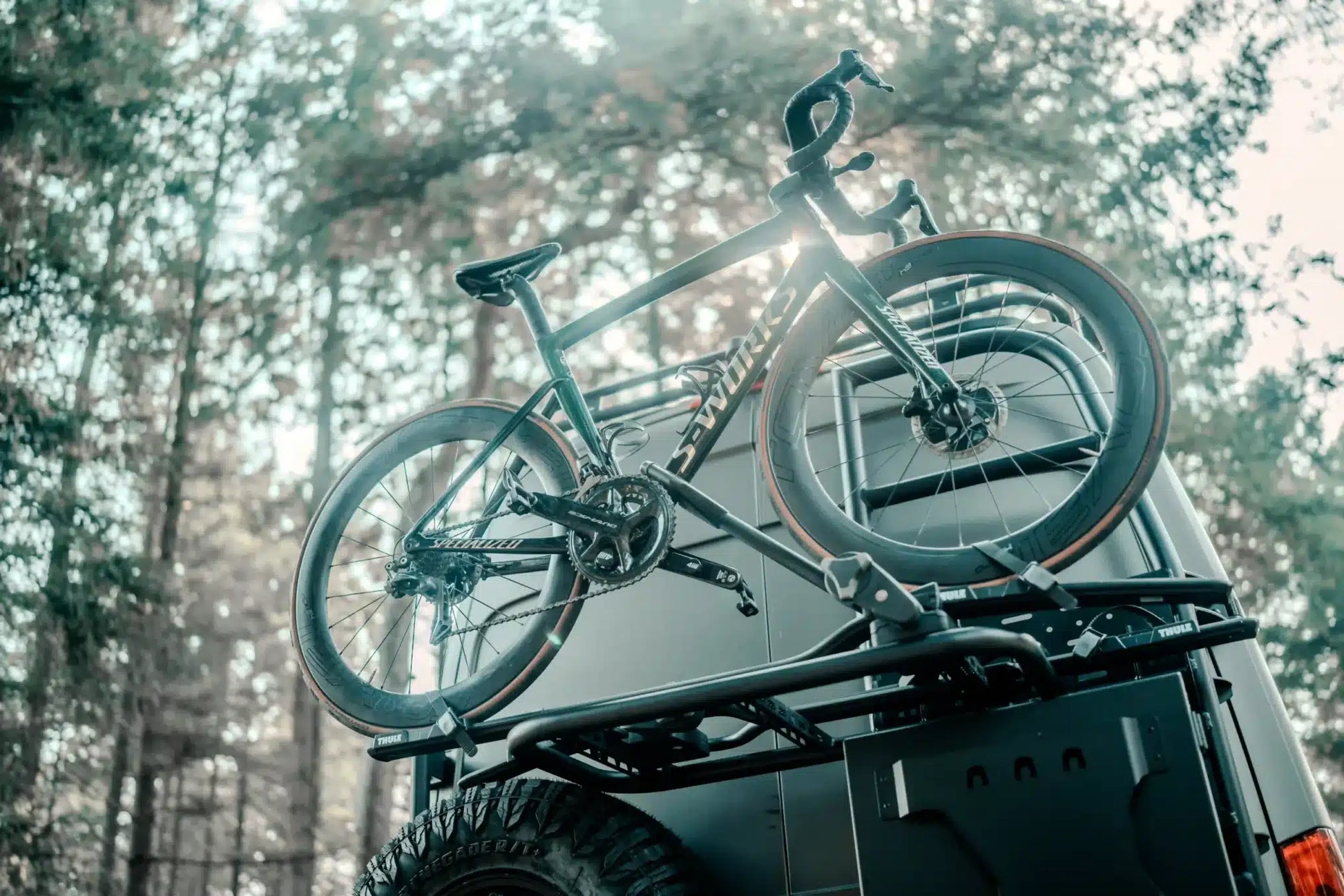

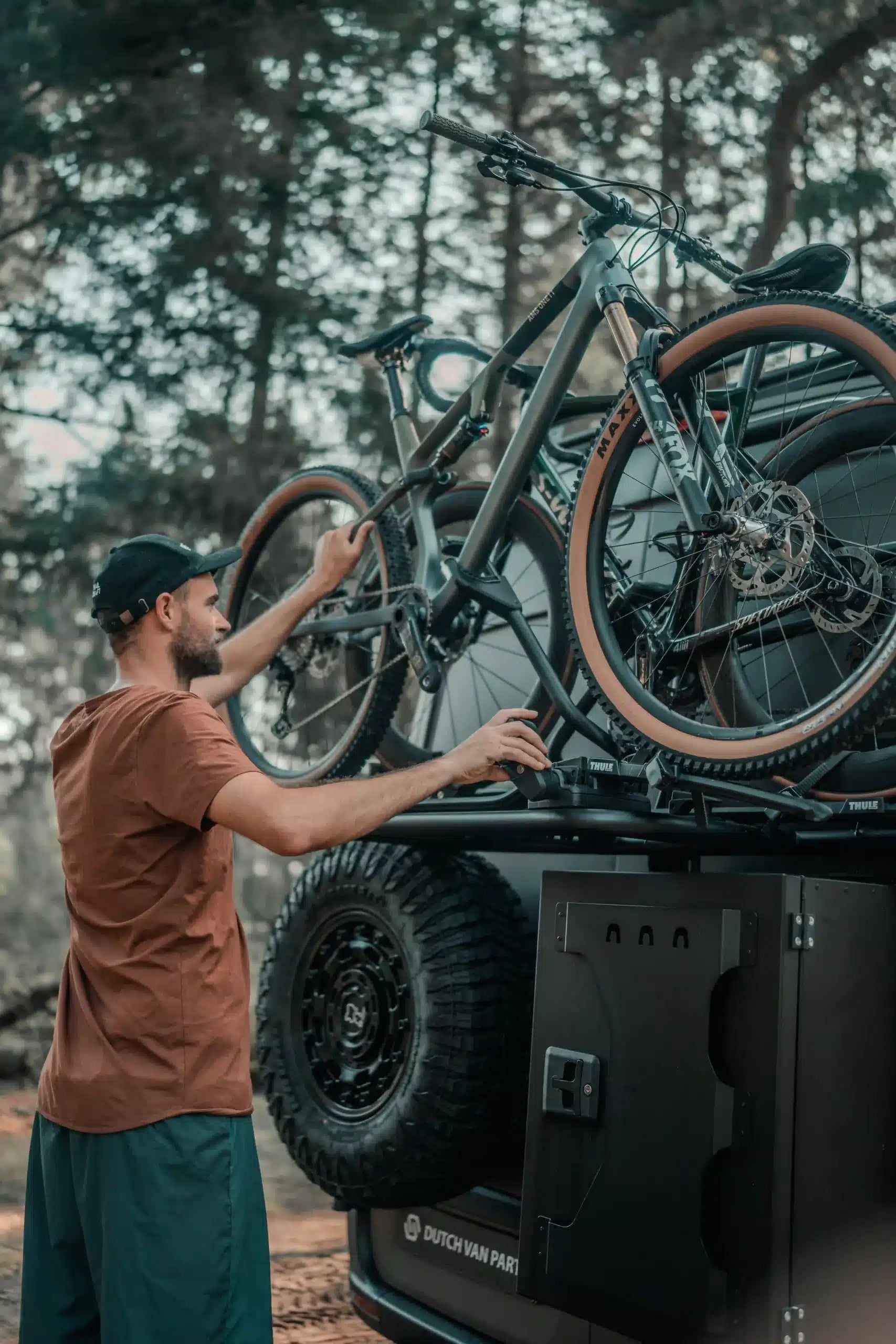

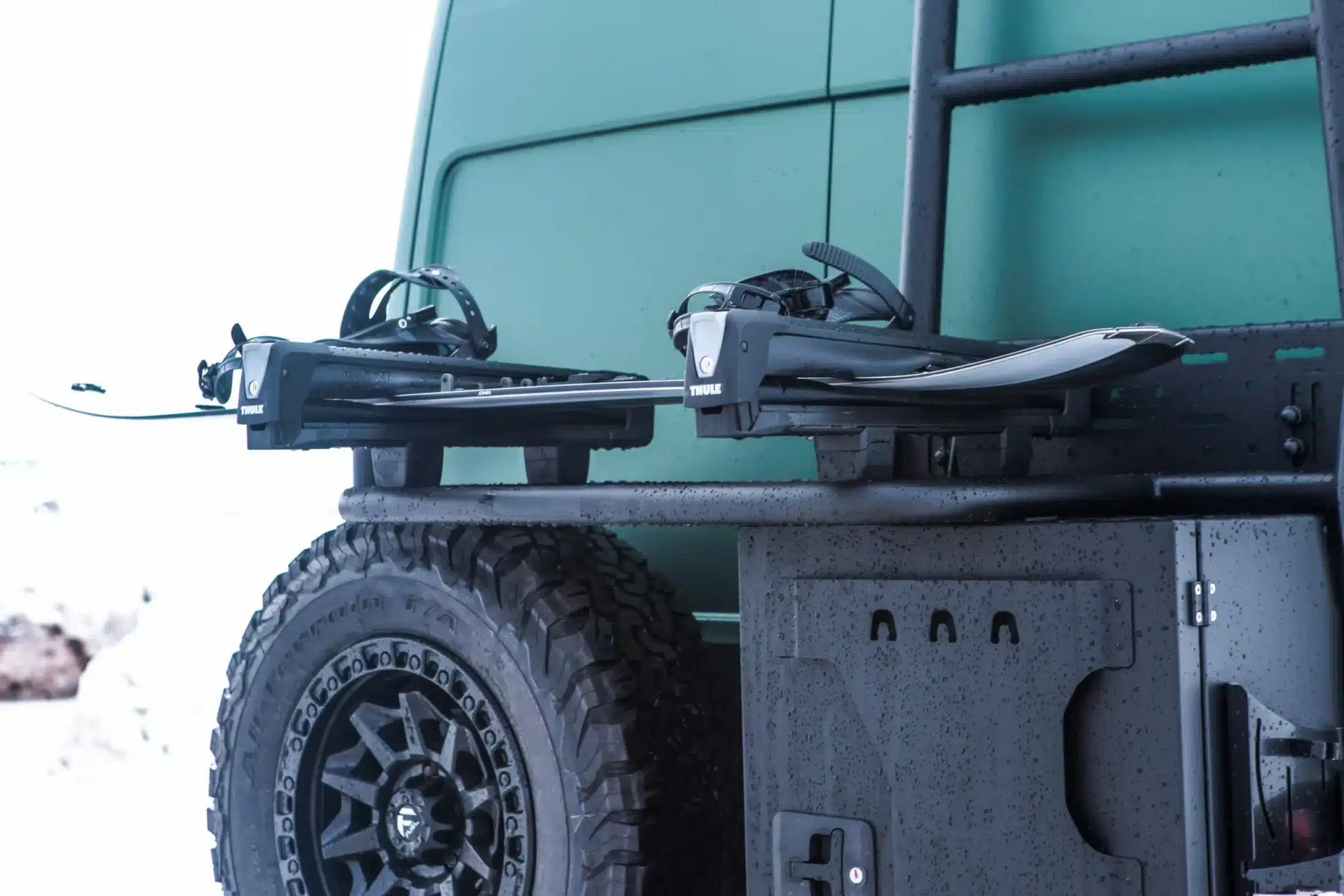

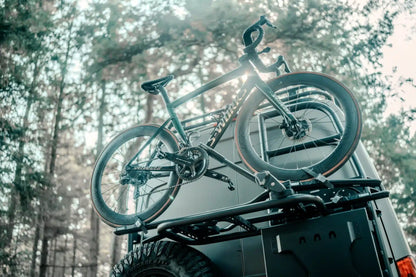

To carry bikes, you mount the Thule Bike Carrier Proride 598 (recommended in black for the best appearance) on top of the Sequoia Sprinter Cargo Frame (bike carrier). Or you take your skis by horizontally mounting ski clamps such as the Thule SnowPack M.
The Thule Bike Carrier also has adapters for fat bikes. Bike carriers and ski clamps are not included.

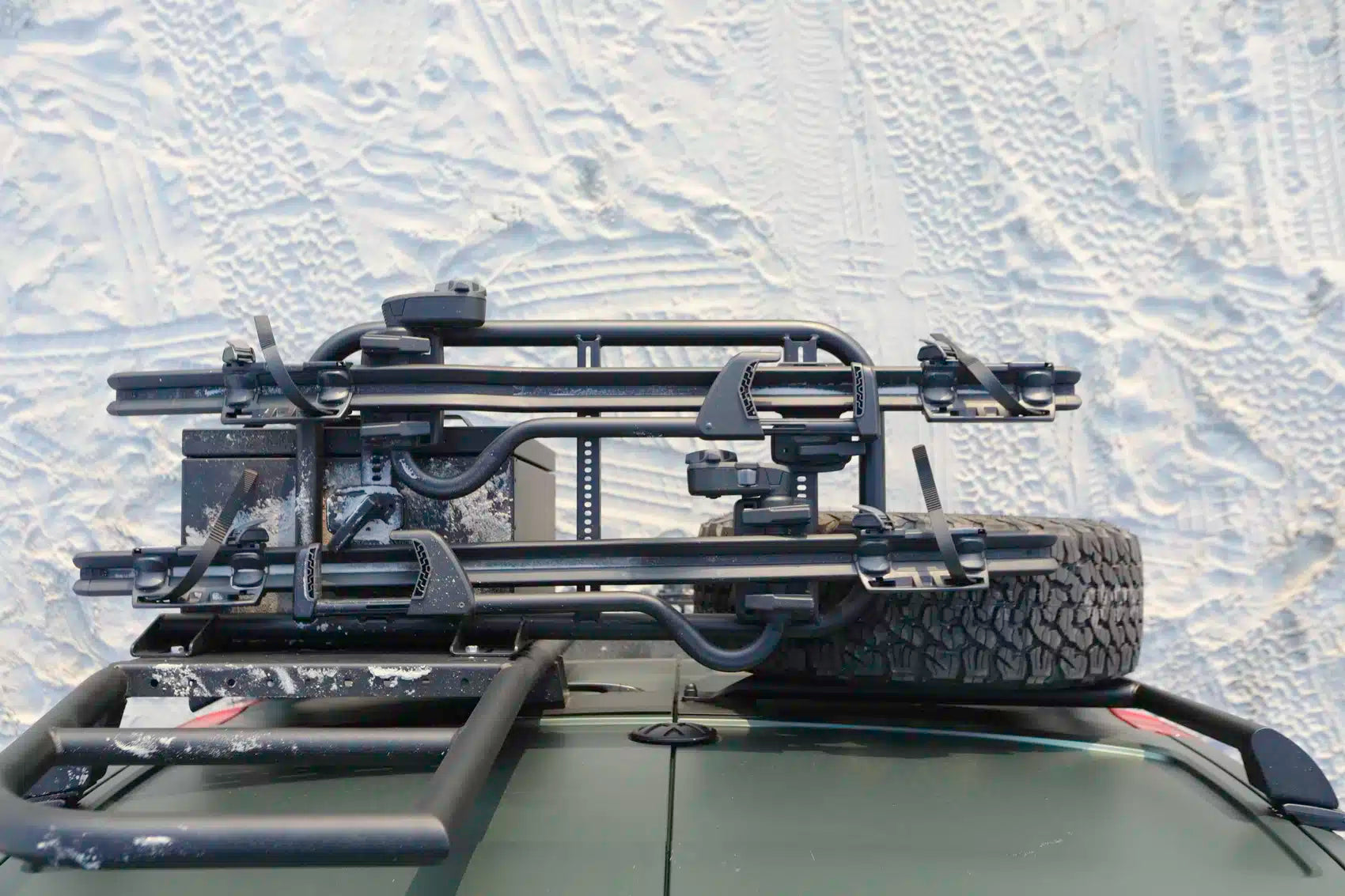

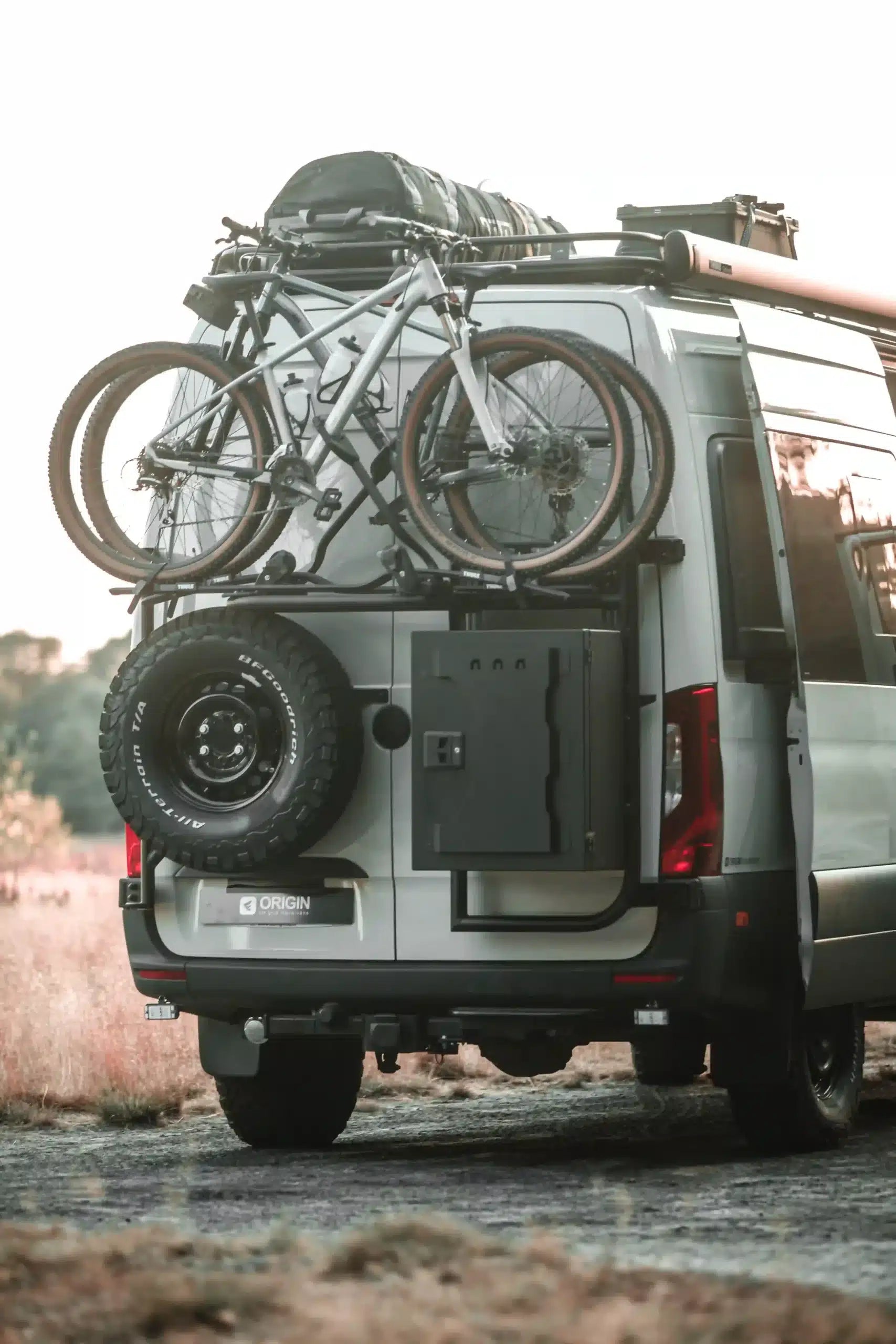

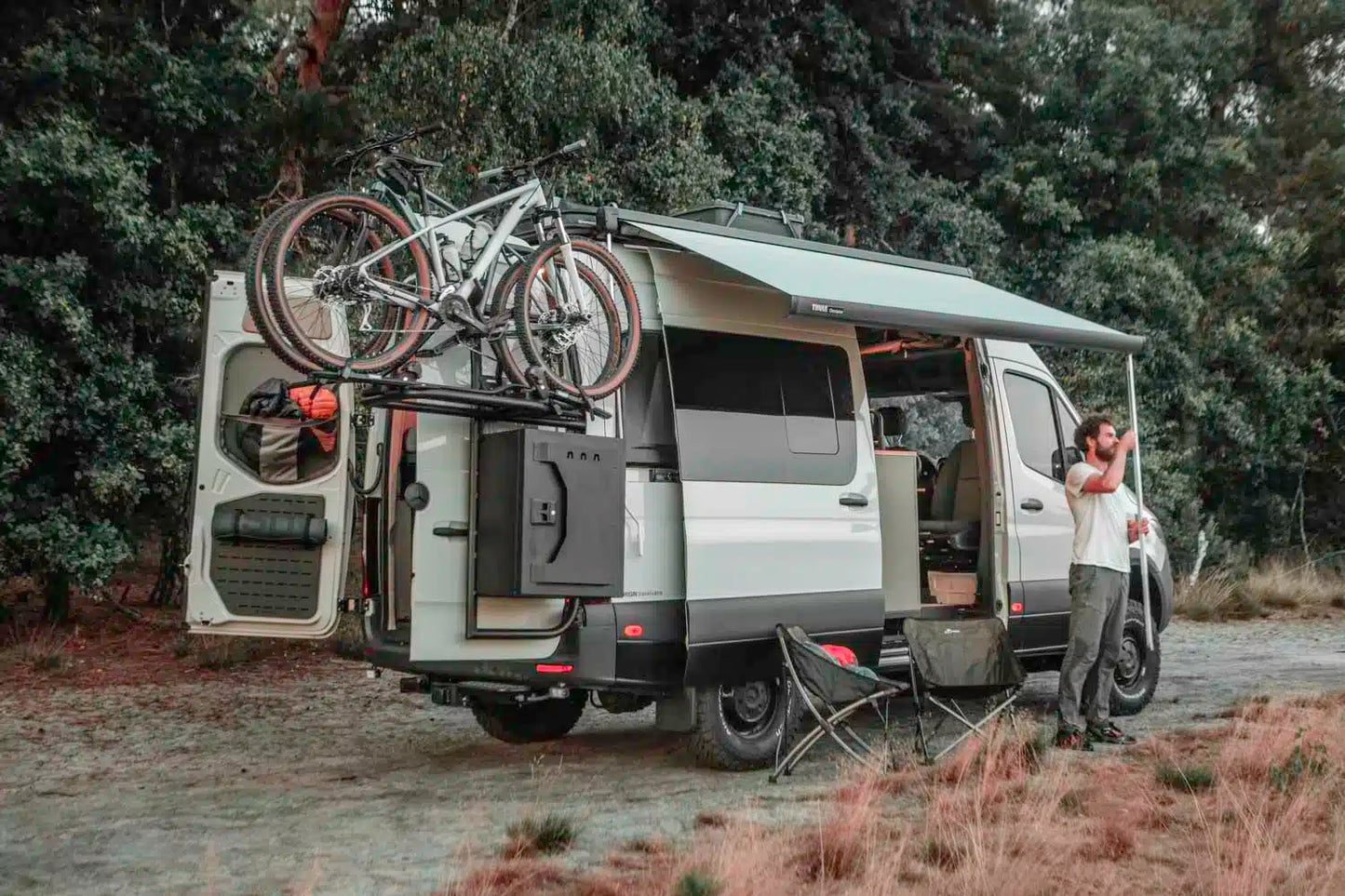

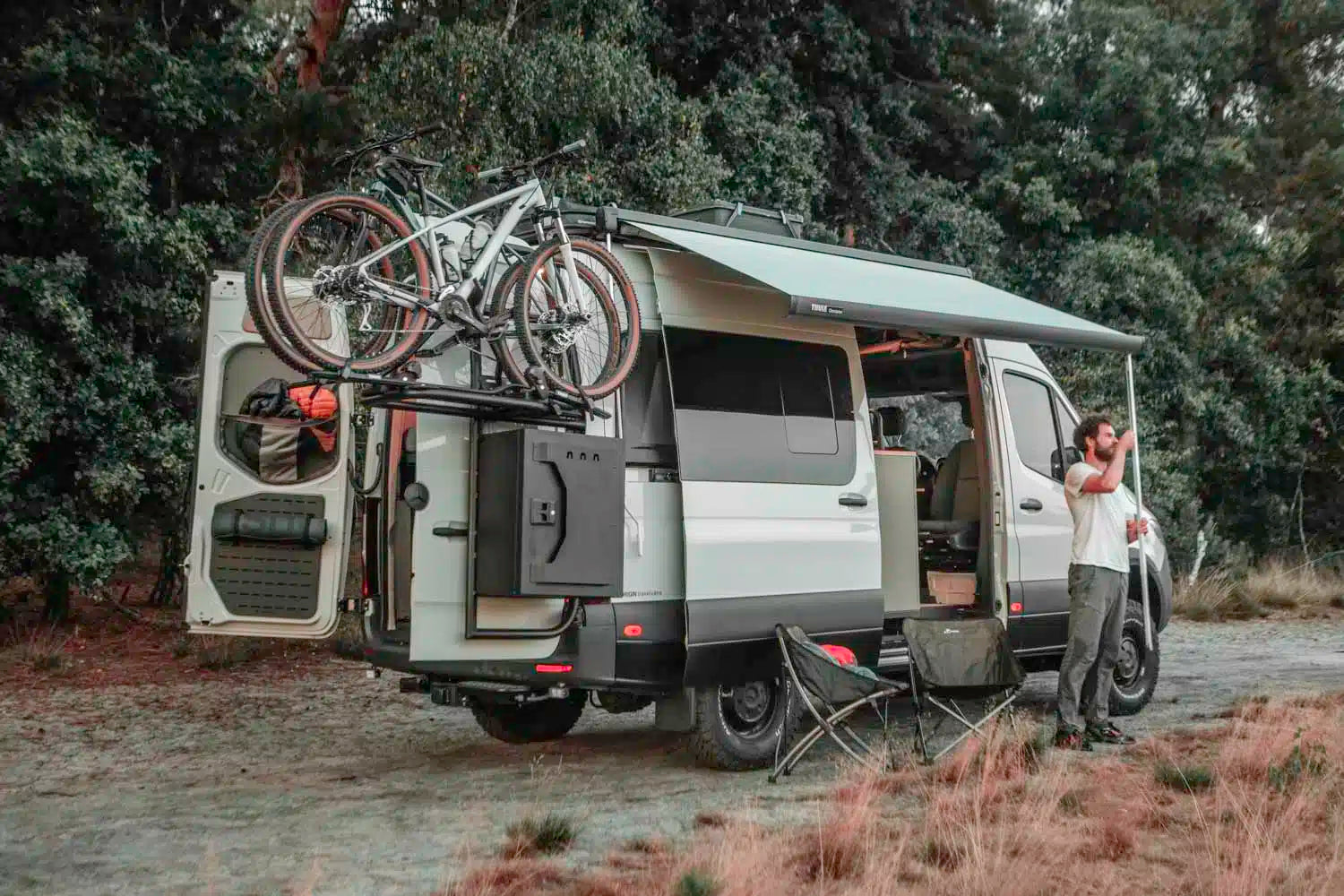

The Cargo Frame lets you carry bikes while still having space for a Cargo Box and spare wire. It can be mounted above the Cargo Box, but if you prefer not to carry a Cargo Box or spare tyre, you can position the Cargo Frame lower on the Cargo Ladder for easier bike loading.
You can also use the Cargo Frame to carry other gear, such as aluminum or plastic boxes, or inflatable SUPs.
Sequoia Cargo Frame installation requirements
The installation of the Cargo Frame requires the following gear:
- Sequoia Cargo Ladder Sprinter W906/W907/W910 / Crafter 1st Gen.
- 180 degree hinges

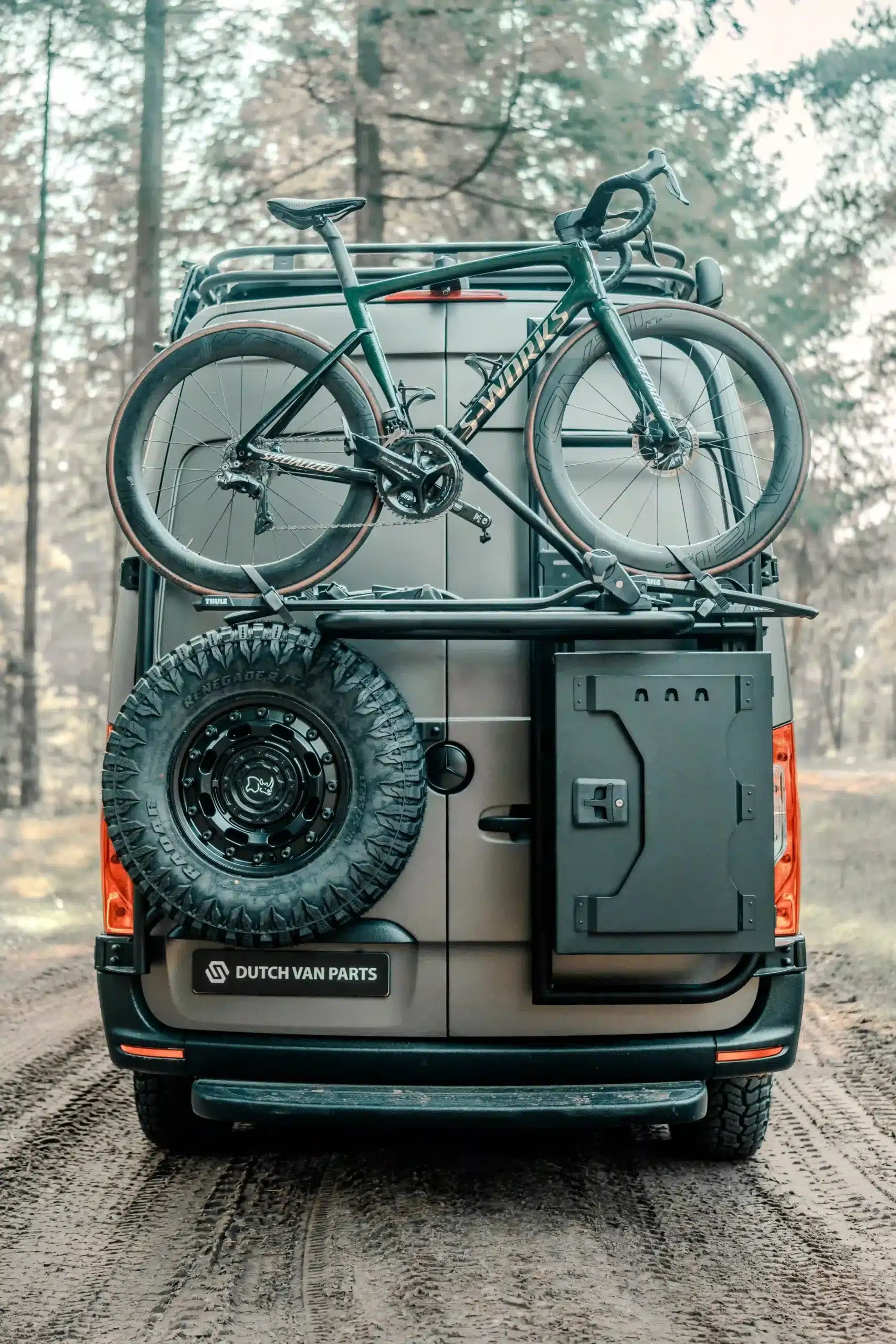

We recommend the Cargo Frame is fitted alongside the Tyre carrier so it can rest on your spare wheel. This could be useful to absorb extreme heavy (bumpy or off-road) forces and shocks while driving off-road. The resting does not create a fixed connection, this way the van body can still flex while driving off-road.
The Cargo Frame comes with a reinforcement bracket for the door. This bracket mounts behind the Cargo Ladder. The bracket helps to distribute the forces of opening and closing the door. Carrying gear on the back of your van means you have to open and close the door with extra great care. Rather gently push to close the door than let it fall or throw it shut. We strongly advise to mount this bracket behind the Cargo Ladder when mounting a Cargo Frame.
Sequoia Cargo Frame specifications

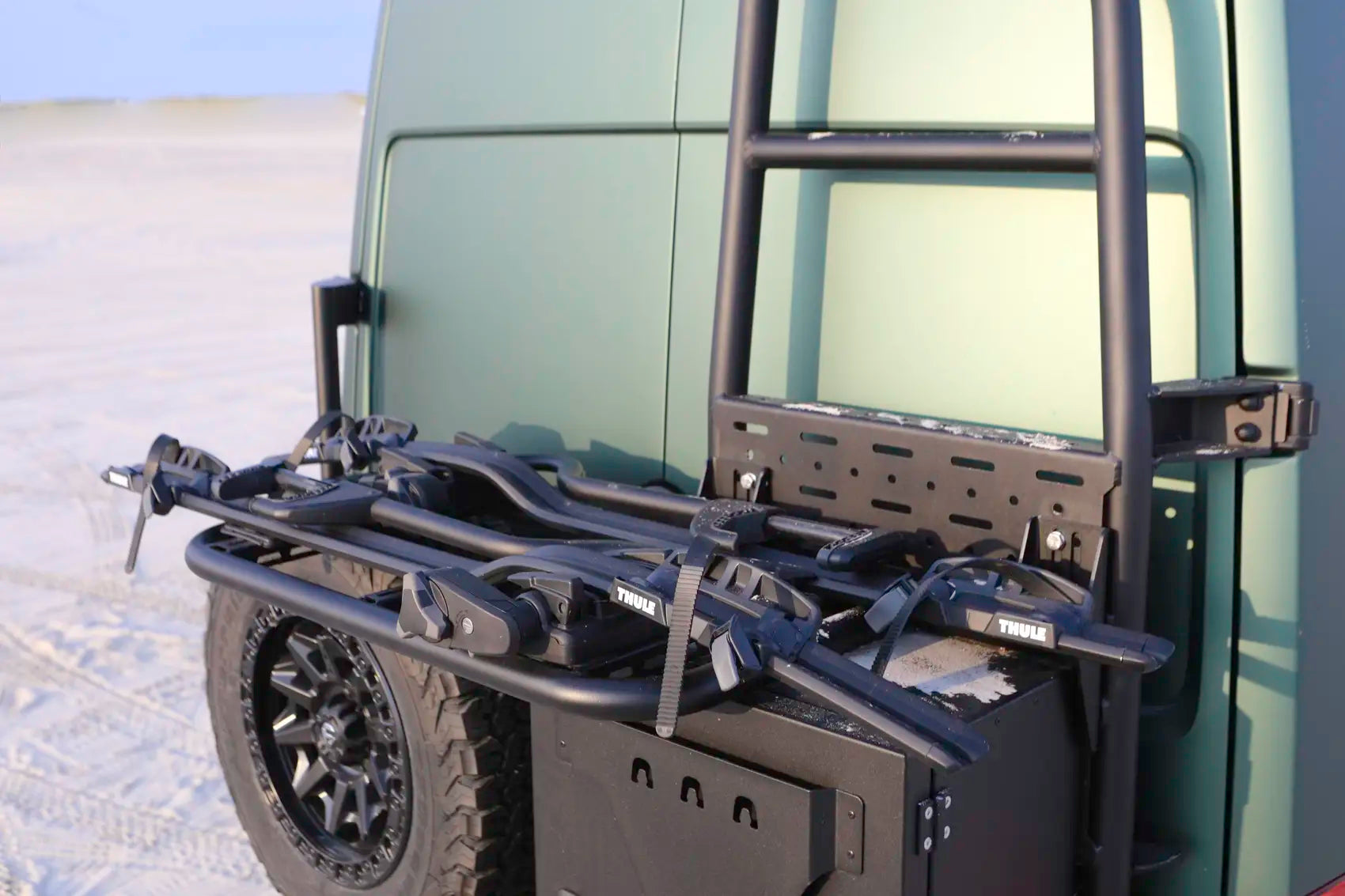

- Compatible with Thule bike and ski carriers
- Bolt-on product
- Stainless steel hardware
Product disclaimer
Project Yonder does not accept any liability nor hold responsibility for the regulations you need to abide by or any problems you might encounter with this product.
Compatible with
+
-
Compatible with
- Mercedes Benz - Sprinter W906 (2006 - 2018)
- Mercedes Benz - Sprinter W907 (2018+)
- Mercedes Benz - Sprinter W910 (2018+)
- Volkswagen - Crafter 1st generation (2006 - 2017)
- Hymer - Free S Campus
- Hymer - Grand Canyon S
- Hymer - Grand Canyon S Crossover
- Westfalia - James Cook
- Yucon - K-Peak
- Yucon - V-City
If your vehicle is not listed, you're unsure whether this product is compatible with your vehicle or would like further advice, please get in touch - hello@projectyonder.co.uk
Additional info
+
-
Additional info

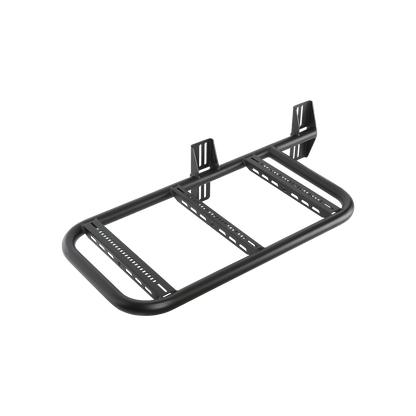

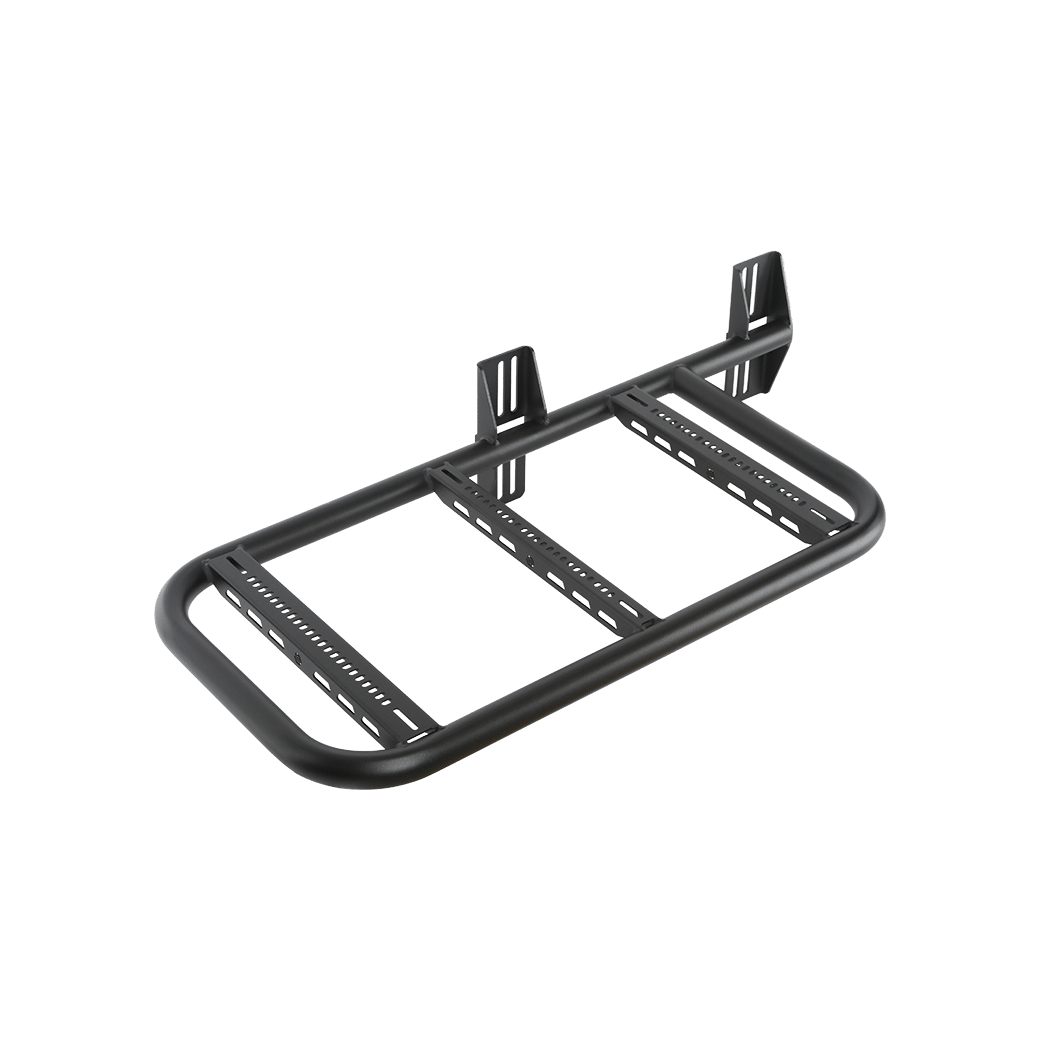

Cargo Frame (bike carrier)
- Product weight: 7,4 kg
- Material: Steel
- Finish: 3-layer protection metalizing zinc spray / primer / topcoating
- Requirement: Cargo Ladder, 180 degree hinges
Rear Door Reinforcement Bracket Cargo Ladder
- Product weight: 0,8 kg
- Material: Aluminium
- Finish: 2-layer powder coating
- Requirement: Cargo Ladder, 180 degree hinges
