Queensize Camper

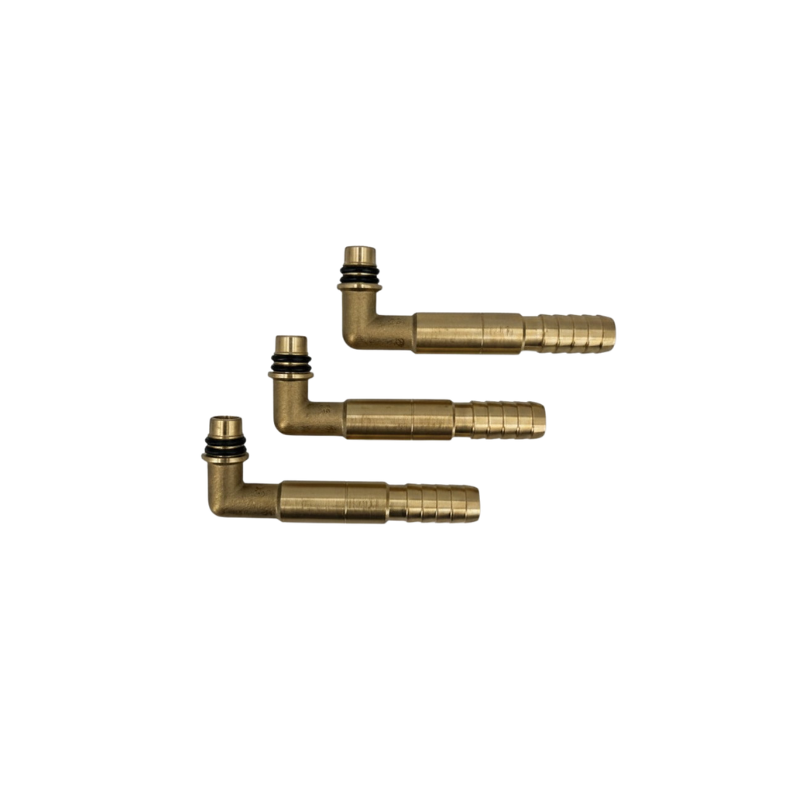

Brass Elbows connections for Queensize mixers (3X)
Brass Elbows connections for Queensize mixers (3X)
Project Yonder is the exclusive UK stockist of Queensize Camper Brass Elbows. Complete your Queensize Camper QC Mixer water system with this precision-engineered brass angle connector set. Three connectors for optimal space-saving installation with 12mm quick-coupling capability.
Shipping time: Usually ships in 3 - 5 days
Couldn't load pickup availability
Description
+
-
Description
The Queensize Camper Brass Angle Connector Set is a specialized component developed specifically for the latest QC Mixer QC-300-11 (2025 and newer). These three precision-crafted brass angles transform the mixer's three connection points into optimally-oriented outlets for maximum flexibility in tight campervan water system installations.
Rather than fixed connection angles that force awkward hose routing, this set allows complete rotational freedom—each connector can be oriented independently to match your specific installation requirements. The innovative design reduces required installation space while enabling seamless integration of 12mm quick-coupling systems for rapid hose connection and disconnection.
As a specialized component kit designed exclusively for 2025+ QC Mixer models, this set represents Queensize Camper's commitment to practical, compact campervan water system engineering. The result is professional water system integration that maximizes available space while maintaining full functionality and flexibility.
Key Features
- Set of three brass angle connectors
- Specifically designed for QC Mixer QC-300-11 (2025+ models only)
- M10x1 thread for secure mixer integration
- Individually rotatable—each angle can be oriented freely
- Space-efficient design for compact installations
- 10mm hose barb standard configuration
- Upgradeable to 12mm quick-coupling systems (John Guest, Reich UniQuick, Carbest)
- Precision brass construction for durability
- Minimal installation depth required
Note
Even after tightening, the brackets can still be turned slightly – this is normal. The screws are only there to secure the brackets against water pressure and prevent them from being forced out of the mixer.
Compatible with
+
-
Compatible with
QC Mixer QC-300-11 (2025 and later models)
Additional info
+
-
Additional info
Technical Specifications
Connection Configuration:
- Quantity: Three (3) separate brass angle connectors
- Thread Size: M10x1 (for QC Mixer openings)
- Standard Connection: 10mm hose barb (per connector)
- Optional Connection: 12mm quick-coupling adapter (field-modifiable)
Physical Specifications:
- Material: Brass
- Design: 90° angle connectors with rotational flexibility
- Fastening: M4 screws (provided with mixer)
